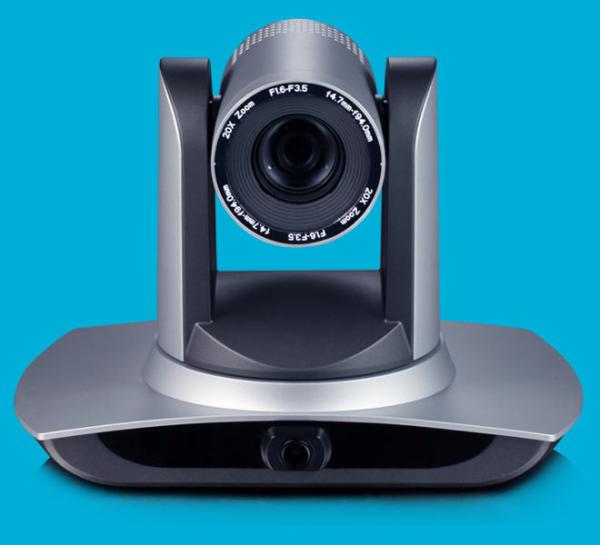

Hawkvine VC034 Educational Intelligent Conference Room Camera 12X 20X Digital Zoom HD CMOS sensor
Hawkvine VC034 Educational Intelligent Conference Room Camera 12X 20X Digital Zoom HD CMOS sensor
Specifications
Brand Name :
Hawkvine
Model Number :
VC034
Certification :
TS16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
100-10000
Payment Terms :
L/C, T/T
Supply Ability :
1000 Per month
Delivery Time :
15days
Packaging Details :
Carton Packing
Hawkvine No. :
HV-VC034
Image Sensor :
1/2.8 inch high quality HD CMOS sensor
Digital Zoom :
10X
Iris :
F1.8 ～ F2.4,F1.6 ～ F3.5
Description

Hawkvine VC034 Educational Intelligent Conference Room Camera 12X 20X Digital Zoom HD CMOS sensor.

Hawkvine VC034 Educational Intelligent Conference Room Camera 12X 20X Digital Zoom HD CMOS sensorHawkvine VC034 Educational Intelligent Conference Room Camera 12X 20X Digital Zoom HD CMOS sensor

VC034 KEY FEATURES:


1.Integrated design

uilt-in panoramic camera, to achieve an integrated fusion of panoramic camera and tracking camera.


2.Superb High-definition Image

Employ 1/2.8 inch high quality CMOS sensor.Resolution is up to 1920×1080 with frame rate up to 60 fps.


3.Various Optical Zoom Lens

12X/20X and other optical zoom lens for options. 12x zoom lens adopts 72.5 ° wide view angle without distortion.


4.Leading Focus Technology:

Leading auto focus algorithm makes lens auto-focuse more fastly, accurately and stably.


5.Low Noise and High SNR:

Low Noise CMOS effectively ensure high SNR of camera video. The adoption of advanced 2D/3D noise reduction technology not only further reduces the noise, but also ensuring image sharpness.


6.Multiple Audio Output Interfaces:

Support SDI, LAN. SDI supports to transmit 100 meters under the 1080P60 format.


7.Multiple Video Compression Standard:

Support H.264/H.265 video compression, AAC, MP3 and G.711A audio compression.


8.Audio Input Interface :

Support 8000,16000,32000,44100,48000 sampling frequency and AAC,MP3, G.711A audio coding.


9.Multiple Network Protocols:

Support ONVIF, GB/T28181, RTSP,RTMP protocols , RTMP push mode, which is easy to link streaming media server (Wowza,FMS), RTP multicast mode and network full command VISCA control protocol.


10.Multiple Control Protocols:

Support VISCA /PEOLCO-P/D protocols, automatically recognize protocols.


11.Networked controlling interface:

all of the controlling information could be transmitted by network, to meet the various scenario of product development.


12.Extremely Quiet PTZ
Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.


13.Multiple Video Compression:

Support H.264/H.265 video compression.


14.Sleep Function:

Support low power sleep/wake up, with consumption below 400mW in sleep mode.


15.Flexible installation:

support wall mount and upside down installation.

Model VC034-12X VC034-20X
Tracking Camera, Lens Parameter
Sensor 1/2.8Inch High Quality CMOS Sensor
Effective Pixels 2.07MP, 16:9
Video Signal 1080P60/50/30/25/59.94/29.97 ,1080I60/50/59.94,720P60/50/30/25 /59.94/29.97
Lens Optical Zoom 12X Optical Zoom,f＝3.9～46.1mm 20X Optical Zoom, f＝4.7～94mm
View Angle 6.3°(Tele)~72.5°(Wide) 2.9°(Tele)~55.4°(Wide)
Iris F1.8 ～ F2.4 F1.6 ～ F3.5
Digital Zoom X10
Minimum Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D﹠3D DNR
White Balance Manual/Auto/One-keyBalance/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
Focus Manual/Auto/A key focus
Iris Manual/Auto
Electronic Shutter Manual/Auto
BLC On/Off
WDR Off/ Dynamic level adjustment
Video Adjustment Brightness,Color,Saturation,Contrast,Sharpness, B/W mode, Gamma curve
SNR >55dB
Panoramic Camera Parameter
Sensor 1/2.8Inch High Quality HD CMOS Sensor
Effective Pixels 2.07 megapixel
Lens Manual focusing
Video Output Interface Network interface, SDI
4mm View Angle(D/H/V) 89.6°71°52.2°
6mm View Angle(D/H/V) 67.0°59°32.5°
Input/Output Interface and Protocols
Video Output Interface SDI, LAN
Video Compression H.265,H.264
Video Stream Dual Stream
Audio Input Dual channel 3.5mm linear input
Audio Compression AAC, MP3, G.711A
Network Interface 100M(10/100BASE-TX)
Network Protocol RTSP, RTMP, ONVIF, GB/T28181, Network VISCA Control Protocol, Support remote upgrade, reboot and reset.
Control Interface RS-232 input
Control Protocol VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
Power Interface HEC3800 outlet (DC12V)
Power Adapter Input: AC110V-AC220V. Output: DC12V/2.5A
Input voltage DC12V±10%
Input current 1.5A (Maximum)
Power Consumption 18W(Maximum)
PTZ Parameter
Pan Rotation -170°～+170°
Tilt Rotation -30°～+90°
Pan Control Speed 0.1 ～100°/Sec.
Tilt Control Speed 0.1～45°/Sec.
Preset Speed Pan: 100°/Sec, Tilt:45°/Sec.
Preset Number Up to 255Points(10 Points By Controller)
Others
Storage Temperature -10℃～+60℃
Storage Humidity 20%～95%
Working Temperature -10℃～+50℃
Working Humidity 20%～80%
Dimension(W*D*H) 254mmX144mmX174mm
Weight (around) 1.50kg
Using environment Indoor
Accessories
Random Accessory 12V/2.5A Power supply, RS232 Cable, Controller, Manual, Warranty Card
Optional Accessories Mounting bracket
