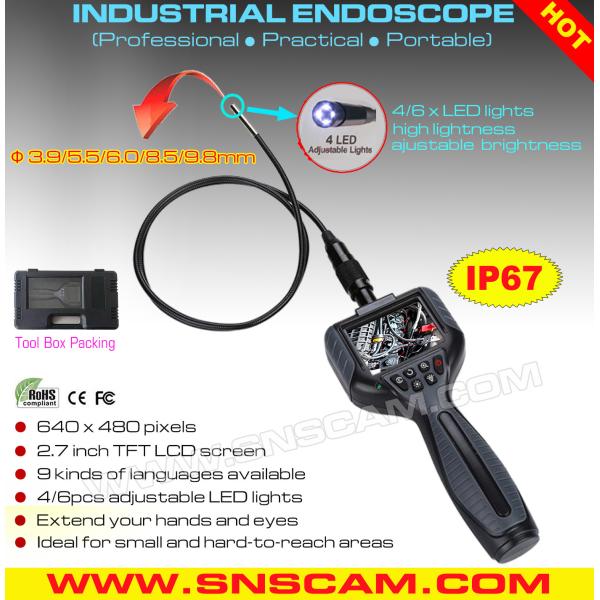

SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
SNS-99D5 Professional Video Endoscope with 2.7 inch TFT LCD display screen
Specifications
Brand Name :
SNS
Model Number :
SNS-99D5
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
10 pieces
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
10-12 days
Packaging Details :
PE professional tool box (optional exquisite gift box packaging)
Colors :
grey, black, red
Waterproof leve :
IP67 (tube + lens)
Monitor :
2.7 inch TFT LCD display screen
Lens :
5.5mm waterproof mini camera
Resolution :
640 * 480 pixels
Focus length :
30mm~80mm
Power supply :
AA type alkaline battery
Languages :
available in 9 kinds of languages
Description

This professional video endoscope is designed for helping to easily find,diagnose and solve the problems.

With lightweight design and professional technology, it is an ideal inspection tool for hard-to-reach and hard-to-see areas.

Main features:
● Suitable for easy visual inspection of small, narrow, hard-to-reach or hard-to-see places.
● 2.7 inch TFT LCD display screen.
● Compact design helps to easily find, diagnose and solve problems.
● Adjustable brightness on led-mounted lights.
● Detachable flexible tube with 5.5mm waterproof mini camera.
● Manufactured and tested to IP67 waterproof standard.
● Lightweight, handheld design, flexible and easy to carry and use.
● Extend your hands & eyes to find and solve it.
● PE tool box (optional exquisite gift box packaging).

Specifications:

Item Unit Specification
Camera section
Image sensor inch 1/4 VGA CMOS
Effective pixels pixels 640 * 480
Video format NTSC/PAL
Lens diameter mm Φ3.9, Φ5.5, Φ6.0, Φ8.5,Φ9.8
Angel of view degree (°) 60°
Minimum illumination lux 0 (LED ON)
Power supply VDC 3.3V
Focus length mm 30-80
Operating temperature ℃ -10 ~ +50
Storage temperature ℃ -15 ~ +60
Operating humidity RH 15% ~ 85%
Waterproof grade IP67
Liquid crystal screen
Screen size inch 2.7
Screen resolution dot 960 * 240 (RGB)
Video system NTSC/PAL
Brightness cd/m2 220 (typ)
Machine part
Battery capacity pcs 4 (AA 1.5V)
LED lights pcs 4/6
Tube length meter 1
Working time hour 3 ~ 4
Frame rate frame/s 30FS @ 24MHz VGA
Working temperature ℃ -10 ~ +60
Working humidity RH 85%
