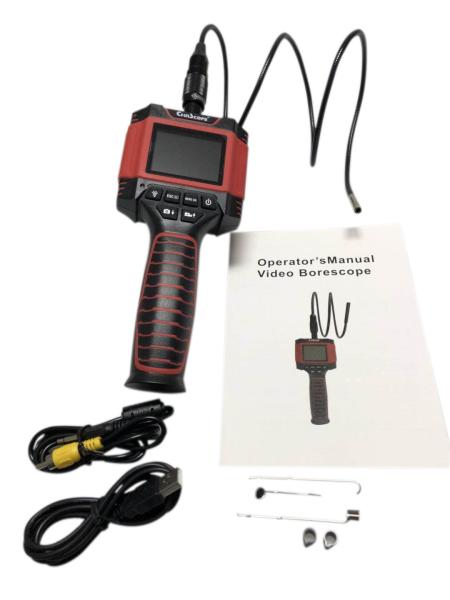

SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
Specifications
Brand Name :
SNS
Model Number :
SNS-99D3
Certification :
CE, ROHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
10 pieces
Payment Terms :
T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
10-12 days
Packaging Details :
PE professional tool box (optional exquisite gift box packaging)
Colors :
red, black
Waterproof leve :
IP67 (tube + lens)
Monitor :
2.31 inch TFT LCD display screen
Lens :
8.5mm waterproof mini camera
Resolution :
640 * 480 pixels
Multifunctions :
photo, recording, memory, etc
Power supply :
AA type alkaline battery
Description

This Multifunctional Industrial Endoscope is designed for helping to easily find,diagnose and solve the problems.

With lightweight design and professional technology, it is an ideal inspection tool for hard-to-reach and hard-to-see areas.

Main features:
● Suitable for easy visual inspection of small, narrow, hard-to-reach or hard-to-see places.
● 2.31 inch TFT LCD display screen.

● Multifunctional operation like photo, recording, memory, etc.
● Compact design helps to easily find, diagnose and solve problems.
● Adjustable brightness on led-mounted lights.
● Detachable flexible tube with 8.5mm waterproof mini camera.
● Manufactured and tested to IP67 waterproof standard.
● Lightweight, handheld design, flexible and easy to carry and use.
● Extend your hands & eyes to find and solve it.
● PE tool box (optional exquisite gift box packaging).

Specifications:

Item Unit Specification
Camera section
Image sensor inch 1/9 VGA CMOS
Effective pixels pixels 640 * 480
Video format NTSC/PAL
Lens diameter mm Φ3.9, Φ5.5, Φ8.5,Φ9.8
View angle degree (°) 60°
Minimum illumination lux 0 (LED ON)
Power supply VDC 3.3V
Focus distance mm 30-80
Operating temperature ℃ -10 ~ +50
Storage temperature ℃ -15 ~ +60
Operating humidity RH 15% ~ 85%
Waterproof grade IP67
Liquid crystal screen
Screen size inch 2.31
Screen resolution dot 960 * 240 (RGB)
Video system - NTSC/PAL
Brightness cd/m2 220 (typ)
Machine part
Battery capacity pcs 4 (AA 1.5V)
LED lights pcs 4/6
Tube length meter 1
USB interface - USB2.0
Working time hour 3 ~ 4
Memory - TF card
Memory size GB 32G (max)
Picture format - .jpg
Video format - .AVI
Frame rate frame/s 30FS @ 24MHz VGA
File size MB/minute <40M
Working temperature ℃ -10 ~ +60
Working humidity RH 85%
SNS-99D3 Multifunctional Industrial Endoscope with 2.31 inch TFT LCD screen
