500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
Specifications
Brand Name :
DDW
Model Number :
DDW-LW550HN16
Certification :
ISO9001 , CE , RoHS , FCC
Place of Origin :
Guangdong , China (Mainland)
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
L/C , L/C , T/T
Supply Ability :
3 , 000pcs per month
Delivery Time :
3 working days upon payment
Packaging Details :
First layer carton pack with filling foam , then wood pallet pack
Signal support :
DVI//VGA DP loop
Resolution :
3840x2160
Viewing Angle :
178x178
Brightness :
500nits
Working time capacity :
7x24hours
Input Voltage :
AC 220v-250v
Power consumption :
230W
Description

55 inch Samsung 1.7mm 500nits 4K LCD video wall ultra narrow bezel LCD video wall display for chain store

Key features

1. Original INNOLUX commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD

2. 500nits brightness , 4000:1 contrast

3. 4K UHD physical resolution 3840x2160

4. Only 1.7mm narrow bezel , high quality , practical , good vision effect

5. UHD video wall unit , high brightness, high contrast, high gamut

6. Flexible structure design , easy installation , extensible , arbitrary combination

Specifications

Model No: DDW-LW550HN16
LCD Technology INNOLUX a-Si TFT-LCD
Active Screen Diagonal 55"
Total Bezel Width 1.7mm
Aspect Ratio 16:9
Physical Resolution 3840x2160
Backight System WLED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.63x0.63 mm
Active Display Area(WxH) 1209.6 × 680.4 mm
Panel Dimension(WxHxD) 1211.54x682.34x68.1mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
input 2
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
DP loop 1xDP in, 1xDP out
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizontal &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs

Various video wall control board options

500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall

Quick Detail

  • RS232 control method
  • RJ45 loop Daisy chain video wall
  • Support DVI VGA AV YPBPR signals
  • Suitable working for 7x24hours

Applications

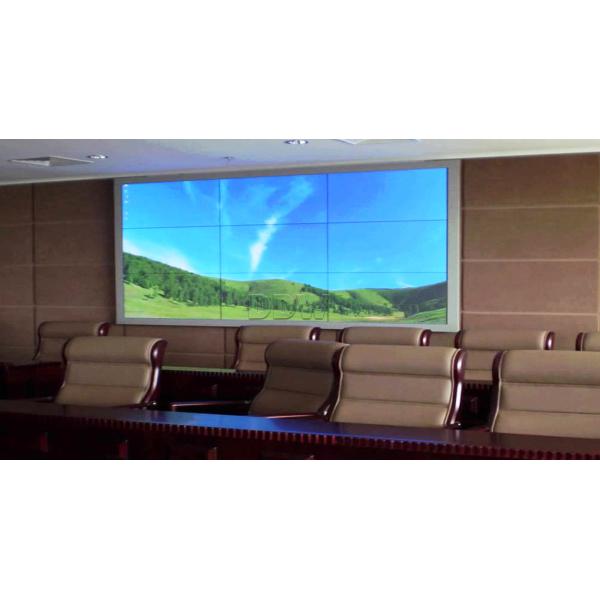

This 55inch 1.7mm narrow bezel video wall is the best cost-effective model , which can be widely used for CCTV control room Conference and meeting rooms , GYM center , Lobbies , Security Monitoring Center , Surveillance and Retail Center , Restaurant and hotel , Retail Shopping Mall Advertising and information Displays , Public Installations , Exhibition and show center , Live show , Rental and advertising Center , Museums , Church , Transportation and Mass Info Display systems.

500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
500 Nits Ultra Narrow Bezel Video Wall Chain Store Advertising 4K Videowall
