Portable 4k HD LCD Video Wall Trade Show Displays 60Hz 230W Customized module 500 nits 7x24hours

Specifications

Brand Name :

DDW

Model Number :

DDW-LW490DUN-TJB1

Certification :

ISO9001 , CE , RoHS , FCC

Place of Origin :

Guangdong , China (Mainland)

MOQ :

2pcs

Price :

Negotiable

Payment Terms :

L/C , L/C , T/T

Supply Ability :

3 , 000pcs per month

Delivery Time :

3 working days upon payment

Packaging Details :

First layer carton pack with filling foam , then wood pallet pack

Signal support :

DVI//VGA

Resolution :

3840x2160

Viewing Angle :

178x178

Brightness :

500nits

Working time capacity :

7x24hours

Input Voltage :

AC 220v-250v

Power consumption :

230W

Description

Portable 4k HD LCD Video Wall Trade Show Displays 60Hz 230W Customized module

Quick Detail

RS232 control method;
RJ45 loop Daisy chain video wall;
Support DVI VGA AV YPBPR signals;
Suitable working for 7x24hours;

Applications

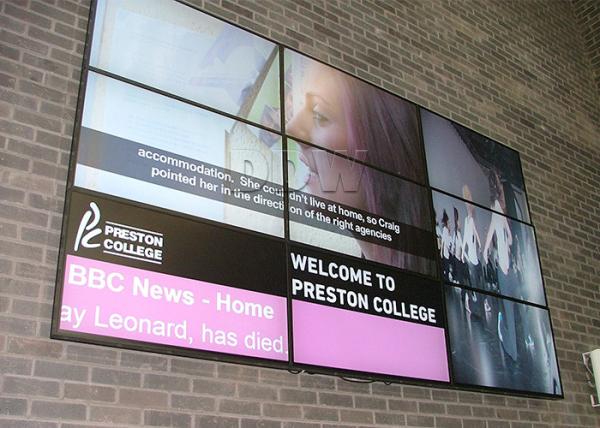

This 49nch 1.8mm narrow bezel video wall is the best cost-effective model , which can be widely used for CCTV control room conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

Key features

Original INNOLUX commercial grade lcd video wall panel, 16:9 INNOLUX a-Si TFT-LCD;
500nits brightness, 4000:1 contrast;
4K UHD physical resolution 3840x2160;
Only 1.8mm narrow bezel, high quality, practical, good vision effect;
UHD video wall unit , high brightness, high contrast, high gamut;
Flexible structure design, easy installation, extensible, arbitrary combination;

Specifications

Model No:	DDW-LW490DUN-TJB1
LCD Technology	INNOLUX a-Si TFT-LCD
Active Screen Diagonal	49"
Total Bezel Width	1.8mm
Aspect Ratio	16:9
Physical Resolution	3840x2160
Backight System	WLED
Luminance(nits)	500cd/sqm
Contrast	MEGA DCR
Viewing Angle	H 178°\|V 178°
Pixel Pitch(WxH)	0.5593x0.5593mm
Active Display Area(WxH)	1073.8 × 604 mm
Panel Dimension(WxHxD)	1075.38x605.8x53.6mm
White Point	10,000 K
Display Colors	8Bit,16.7M
Refresh Rate	60Hz
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
MTBF	> 100,000 h
Surface	Anti-glare
Standby Power Consumption	<3W
Maximum Power Consumption	lower than 250W
Power Supply	AC100~240V 50/60 HZ
Cooling	Low noise fans
Heat Dissipation	819 BTU/h (max)
Working Time Capacity	7x24x365hours
Application Area	Indoor/Semi Outdoor
Working Temperature	0°C~50°C
Working Humidity	0.85
Storage Temperature	-20-60°C \| -4-140°F
Storage Humidity	85% non-condensing
	1
VGA	1
CVBS IN	1
CVBS OUT	1
RS232 IN	1
RS232 OUT	1
ISP IN	1
IR IN	1
CODING BUTTON	1
AC IN	AC100-240V
Color System Support	PAL/NTSC/SECAM
Control Type	IR Remote &Software Control
Menu Language	English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display	Support
Combine Display	Support combine any horizontal &vertical numbers of screens and show display
	Support combine all screens together to show 1image
Solid Display	Support each screen input with separate signal
PIP/Zoom/Roaming	Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces	Support DVI,,VGA,AV &multiple signal inputs
Rich Resolution	Support 1080P,1080I,720P,480P &multiple resolution inputs
