FHD 55 Seamless LCD Video Wall / Interactive Wall Display 500 Nits
FHD 55 Seamless LCD Video Wall / Interactive Wall Display 500 Nits
FHD 55 Seamless LCD Video Wall / Interactive Wall Display 500 Nits
FHD 55 Seamless LCD Video Wall / Interactive Wall Display 500 Nits
Specifications
Brand Name :
DDW
Model Number :
DDW-DV55FHM-NS0
Certification :
ISO9001 , CE , RoHS , FCC
Place of Origin :
Guangdong , China (Mainland)
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
L/C , L/C , T/T
Supply Ability :
3 , 000pcs per month
Delivery Time :
3 working days upon payment
Packaging Details :
First layer carton pack with filling foam , then wood pallet pack
Product Name :
Seamless LCD Video Wall
Color :
8Bit,16.7M
Total Physical Bezel :
5.3 mm
Resolution :
1920*1080
Brightness :
500 nits
Backlit type :
LCD
HDMI input :
2
Refresh Rate :
60Hz
Description

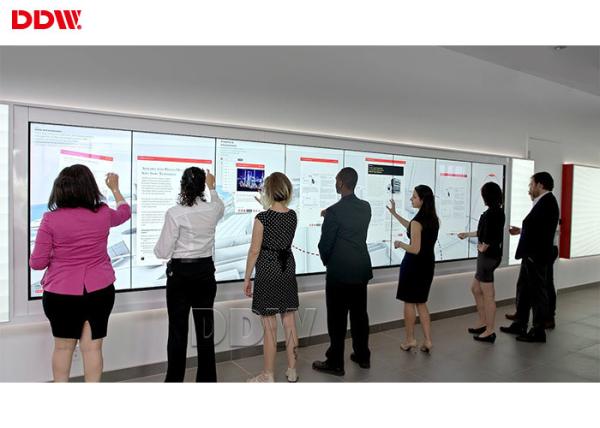

FHD 55" Seamless Lcd Video Wall / Interactive Wall Display 500 Nits

Seamless Lcd Video Wall Parameters


1, 500its brightness , MEGA DCR contrast.FHD video wall unit , high brightness , high contrast , high gamut.
2, Only 5.3mm ultra narrow bezel , high quality , practical , good vision effect
3, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
4, Flexible structure design , easy installation , extensible , arbitrary combination
5, Stable performance , suitable working for a long time.

Seamless Lcd Video Wall Key features

Support a variety of signal ports

Built-in splicing module , Support splice function

Support creating one window PIP across the screen , roaming service , scaling , PIP

Dynamic image without motion trail

Splicing image processing RS-232 RJ45 loop-circuit input/output

Input by remote control with wire , mobile receiver head

Seamless Lcd Video Wall Specifications

Panel Specifications
LCD Technology BOE a-Si TFT-LCD
Active Screen Diagonal 55"
Bezel Width Total: 5.3mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1077.6×607.8x55.7mm
White Point 10,000 K
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing

Seamless Lcd Video Wall Board Specifications

Support PC Color 24bit
Signal Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

 Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ
Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)

Service


Our customizable solutions offer a range of user-friendly features that streamline operation and enable the interconnectivity of your corporate control room, meeting rooms, and multi-screen display systems. Integrating a range of content types and signal formats, DDW’s multi screen video wall, control room display and digital signage systems can help you get your message across to customers more effectively.


DDW offers a range of scalable connectivity and display processing systems for corporate av applications, as well as large-scale multiscreen video wall solutions for enterprise-level installations. The remote capabilities and real-time signal processing provided by our conference, board, collaboration and control room display systems support multi-site workflows and critical decision-making.
