Specifications
Brand Name :
DDW
Model Number :
DDW-DV490FHM-NV0
Certification :
ISO9001 , CE , RoHS , FCC
Place of Origin :
Guangdong , China (Mainland)
MOQ :
2pcs
Price :
Negotiable
Payment Terms :
L/C , L/C , T/T
Supply Ability :
3 , 000pcs per month
Delivery Time :
3 working days upon payment
Packaging Details :
First layer carton pack with filling foam , then wood pallet pack
Product Name :
Interactive Video Wall
Total Physical Bezel :
3.5 mm
Resolution :
1920*1080
Backlit type :
LED
Panel Width :
1077.6mm
Panel Height :
607.8mm
Surface :
Anti-glare
Refresh Rate :
60Hz
Description

49inch 3.5mm Interactive Video Wall for fashion store advertising DV490FHM-NV0

Interactive Video Wall Key features:

Support a variety of signal ports.

Built-in splicing module, Support splice function

Support creating one window PIP across the screen, roaming service, scaling,PIP

Support matrix joint control.

Unique DNX motion supplement image processing technology,

Dynamic image without motion trail

Splicing image processing RS-232 RJ45 loop-circuit input/output.

Input by remote control with wire, mobile receiver head.

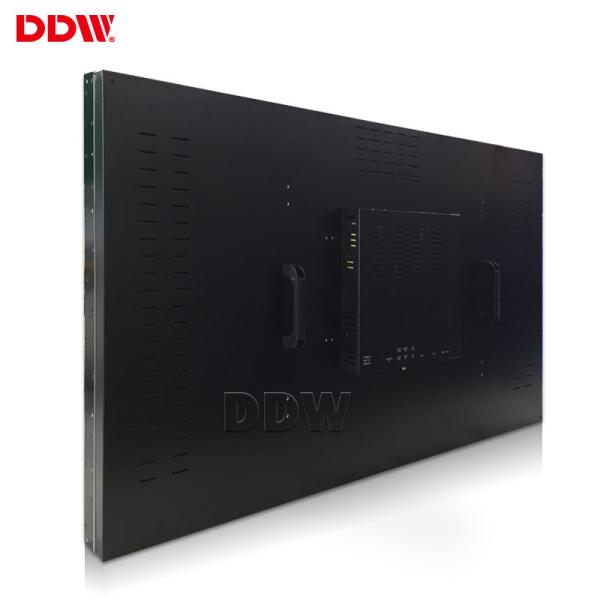

49" DDW Interactive Video Wall main parameters
1, Original DDW commercial grade lcd video wall display panel,16:9 LG a-Si TFT-LCD
2, 500nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,High gamut .
3, FHD physical resolution 1920x1080
4, Only 3.5mm Ultra narrow bezel, high quality ,Practical ,good vision effect.
5, Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6, Flexible structure design ---easy installation ,extensible,arbitrary combination
7, Stable performance,suitable working for a long time.

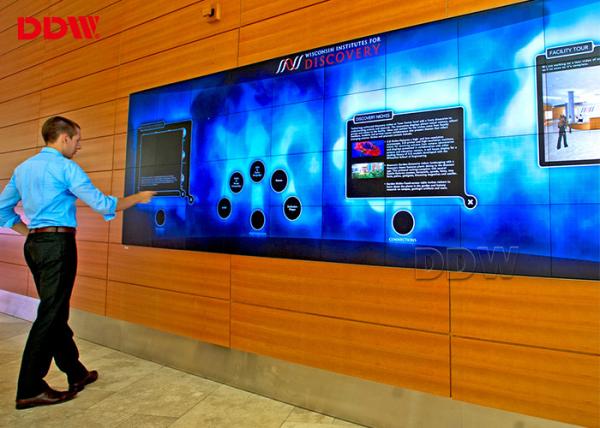

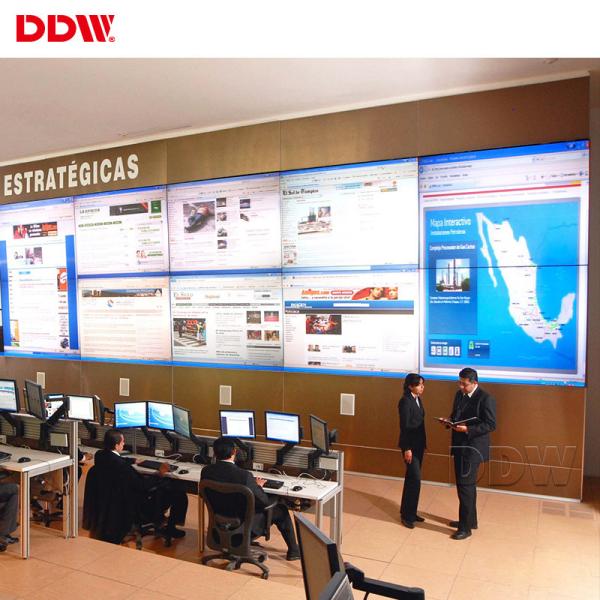

Advertising video wall can be used in below fields: conference and meeting rooms, office building, lobbies, security monitoring center, surveillance and retail center, restaurant and hotel, retail shopping mall advertising and information displays, public installations, exhibition and show center, live show, rental and advertising center,museums,church,transportation and mass info display systems.

Interactive Video Wall Specifications:

Active Screen Diagonal 49"
Bezel Width Total: 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System LED
Luminance(nits) 500cd/sqm
Contrast MEGA DCR
Viewing Angle H 178°|V 178°
Panel Dimension(WxHxD)

1077.6x607.8x59.67mm
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption lower than 250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0°C~50°C
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing

LCD Video Wall Board Specifications

Support PC Color 24bit
Signal Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

DVI

HDMI

DP

 Color 24bit
Line synchronization range 30-80KHZ
Field synchronization range 50-75HZ

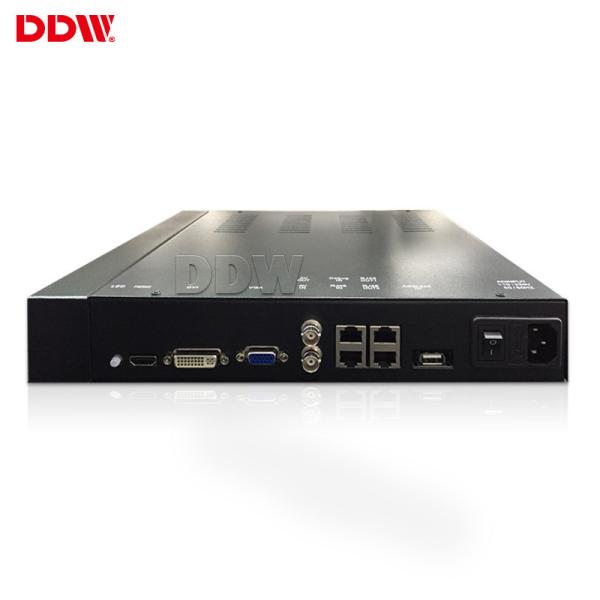

Interface Input VGA x 1 15pin D-Sub
DVI x 1 DVI-I
DP x 1 Display Port
HDMI x 2 HDMI-19 pin
Output PANEL LVDS 36Pin/2.0
DP out DP loop out
Power Input power DC24V/12V/5V
Drive panel 5V/12V
Power mode Normal working mode, power saving mode
Other OSD Chinese, English and other languages (other languages can be added as required)
