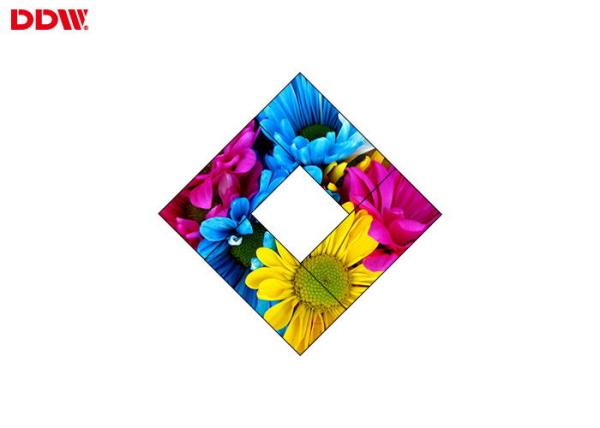

Narrow Bezel Irregular Video Wall 55 Inch DID Technology Rich Color
Narrow Bezel Irregular Video Wall 55 Inch DID Technology Rich Color
Narrow Bezel Irregular Video Wall 55 Inch DID Technology Rich Color
Narrow Bezel Irregular Video Wall 55 Inch DID Technology Rich Color
Specifications
Brand Name :
DDW
Model Number :
DDW-LW550HN16
Certification :
ISO9001 , CE , RoHS , FCC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3 , 000pcs per month
Delivery Time :
3 working days upon payment
Packaging Details :
Quality carton with full wood box packing
Name :
Irregular Video Wall
Size :
55 Inch Video Wall
Technology :
DID Technology
Viewing Angle :
178°/178°
Bezel :
Narrow Bezel
Brightness :
350-700 nits
Color :
Rich Color
Input Voltage :
220V
Description

Narrow Bezel Irregular Video Wall 55 Inch DID Technology Rich Color

Irregular Video Wall Application

Hotel lobby

Exhibition

Company showroom

Digital demo wall

The mall

Ktv

Irregular Video Wall Parameters:

Name Architectural 55 Inch Irregular Video Wall For Home Theater / Exhibition
Item No. Components Descriptions
1 55" Samsung 1.7mm bezel 500nits brightness,WLED Backlit,1920x1080 resolution,with 1080P HDMI input
2 System controller 1 in 16output HDMI splitter
3 Bracket POP out bracket for 55" lcd video wall
4 Standard Accessories IR Controller,Power Cables,RJ45 Cables,RS232-RJ45 Connector
5 Packing 4/5 screens in 1 wooden case
Panel Specifications
LCD Technology Original Samsung DID LCD
Active Screen Diagonal 55"
Panel Dimension(WxH) 1211.6*682.4mm
Total Bezel Width 1.7mm
Aspect Ratio 16:9
Physical Resolution 1920*1080
Backlight System WLED
Luminance(nits) 500cd/m2
Contrast 1500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=260W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Working Time Capacity 7x24x365hours
Working Temperature 0℃~50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Net Weight 26kg/unit
1080P HDMI input daisy chain board Signal Inputs, Outputs
DVI-I DUAL LINK 1
HDMI input 2K 1
VGA input 1
RS232 IN 1
RS232 OUT 2
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English
Vertical/Horizontal Display Support

Facilities:

We group companies own following facilities to accomplete the business:
1) 2500㎡ production department
2) Our own metal factory 3000㎡
3) Our own panel warehouse 1500㎡
All departments R&D Technical, Purchase, Production (Assemble-QC-Packing-Shipping-Aftersales), Domestic & Overseas Sales, Merchandiser and Public Relationship joint corporately & effectively.
