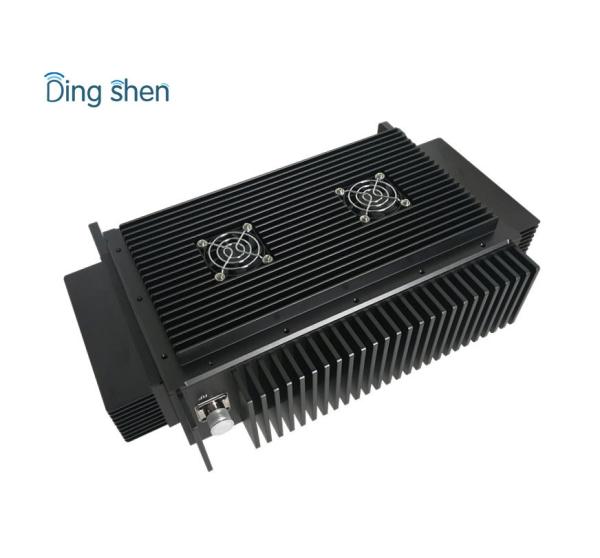

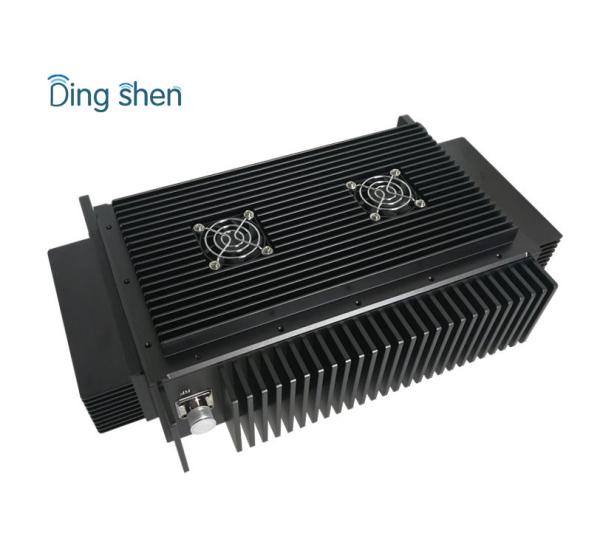

20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted
20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted
20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted
20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted
20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted
20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted
Specifications
Brand Name :
Ding Shen
Model Number :
DS-FDD20W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
300*190*170mm
Place of Origin: :
china
Model Number: :
DS-FDD20W
Video port: :
H-D-M-I; SDI; BNC
Frequency: :
300-900Mhz or other frequency customized
video coding: :
H.264
Modulation: :
COFDM
RF power: :
20W
Encryption: :
AES128/256bits
Brand Name: :
Ding Shen
Description

20W Rugged COFDM HD Video Transmitter 10-15km NLOS Wireless Long Range AV Sender Encrypted

Video transmitter for mobile wireless communication HD video wireless unit is a new designed COFDM video FHD transmitter for gathering image, audio and data from front-end to command centre in emergency situation.

Designed in military-grade quality, it’s widely applied in tactical man-pack long distance wireless communication. With the features of latest COFDM technology, 20W high RF power, H.264 image compression, and full HD quality video definition, makes it enable to achieve long distance video and radio transmission even in the fast moving and harsh NLOS environment.

The HD COFDM wireless vidoe transmitter can also be designed for UAV, vehicle, boat point to point wireless long range communication.

Features:

* MPEG-4 /H.264 video compression, full HD video quality

* Military aluminum housing, black or green color option
* Mobile and NLOS (Non line-of-sight) transmission
* Strong security by AES user-defined encryption
* Low system latency
* Modular design, compact structure, OEM design
* Several wavebands available: VHF/UHF/L/ S
* Built-in very good heat radiation.

Specification:

Power supply
DC input DC12V-DC14V
Working Current ≤4.7A DC12V
Video transmission
Working frequency range VHF, UHF
Modulation COFDM
Constellation QPSK,16QAM
Bandwidth 2/2.5/4/8MHz
Power output 20W
A/V interface BNC, HDM, SDI
Data serial interface RS485/RS232/RS422 (option)
Data working mode Half duplex
Serial data rate 19200bps baud rate maximum
Video input format PAL/NTSC
Video resolution 1080i,1080P,720P
Video encoding MPEG-4/H.264
Audio channel Stereo Left / right channel
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Carrier 2K
Guard Interval 1/32, 1/16, 1/8, 1/4
Antenna interface N type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p 75Ω, NTSC/PAL adaptive
Environment
outer case quality military grade level
Work environment -30~55℃
Storage temperature -40~70℃
Environment humidity ≥95%
Appearance
Weight 4.68kg
Dimension 300*190*170mm
cover range 10-15km NLOS in city; 200-250km from air to ground
Warranty 12 months, lifetime maintenance

Application:

Optional COFDM Wireless Video Audio Receiver:

1). Rack mounted Wireless Receiver:

Specifications:

DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V
Receiving sensitivity ≤-102dBm /4MHz, ≤-95dBm /8MHz
BER BER≤1×10-4
Frequency input range 300MHz~--470MHz
Input interface N(type),Dual antenna diversity reception technology
Modulation COFDM
RF bandwidth 4/8MHz (adjustable)
Constellation QPSK,16QAM,64QAM (optional)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K
Video formats and amplitude PAL/NTSC, 1Vp-p/75Ω
Video compression H.264/MPEG-2(autoadaptation)
Decode code stream rate 0.5-12Mbps
Video output interface Composite video RCA,HDM,ASI,HD-SDI(alternative)
Interrupt recovery Better than 2S
Video channel characteristic Differential gain DG≤1.5%, Differential phase DP≤1°
Audio output Left and right channel and stereo
Dimension 440*340*65mm(1U chassis)
Weight: 3.8kg

2). Portable Receiver with monitor:
