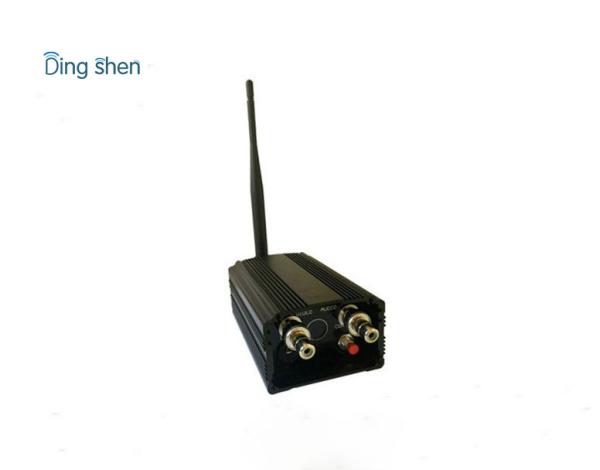

1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels
1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels
1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels
1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels
Specifications
Brand Name :
Ding Shen
Model Number :
DS-A5
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Delivery Time :
3-7 working days
Packaging Details :
245*160*65mm
Frequency: :
0.9G/1.2G/1.3G
Transmit Power: :
5000mW
System: :
PAL/NTSC
Number Of Channels: :
4CHS Or 8CHS Optional
Voltage: :
DC 12V
Transmit Distance: :
5~10KM
Description

1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels

Analog Video Transmitter Description:

DS-A5 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5~10KM or so, if the raising of the high gain directional antenna, increased to 30KM away. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:

Voltage DC 12V
Current 600mA
Frequency 0.9G/1.2G/1.3G
Number of channels 4CHs/8CHs Optional
Transmit Power 5000mW
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance (Open environment) 5~10KM
Overall Configuration Transmitter, receiver, AV cable, power supply, antenna
Temperature -10℃ ~ +50℃
Transmitter Weight 388g
Receiver Weight 120g
Dimensions (L * W * H) Transmitter:111*67*60mm. Receiver:116*80*21mm
Box size (L * W * H) 245*160*65mm

1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels1.2Ghz Analog Video Transmitter 5W UAV Wireless Video Transmitter and Receiver 8 Channels
