Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Professional 17inch Standard Video Wireless Transmitter And Receiver with remote control
Specifications
Brand Name :
Ding Shen
Model Number :
DS-DRB01
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
520*430*210mm
Place of Origin: :
Guangdong,china
Modulation: :
COFDM
Memory: :
1TB
RF level Input: :
-105dBm
Power supply: :
AC220V / DC12V
Constellation: :
QPSK, 16QAM, 64QAM
Product name: :
Video Wireless Transmitter And Receiver
Description

DS-DRB01H high quality security surveillance HD wireless video receiver is a new design COFDM wireless video audio receiver from Ding ShenProfessional 17inch Standard Video Wireless Transmitter And Receiver with remote controlProfessional 17inch Standard Video Wireless Transmitter And Receiver with remote control

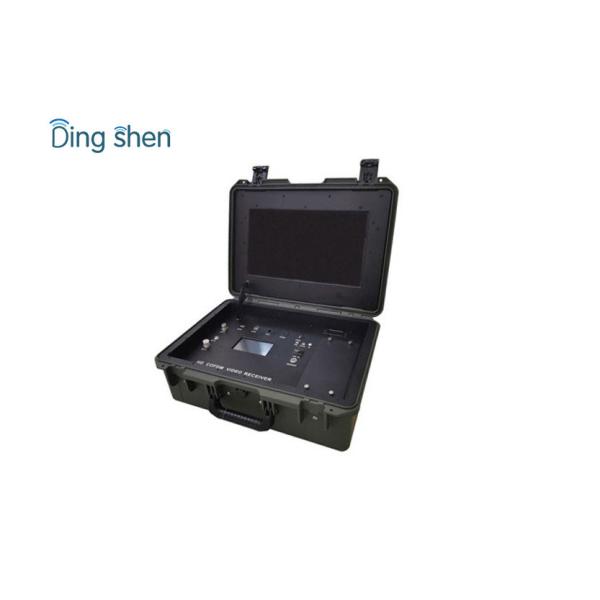

Portable high quality security surveillance HD wireless video receiver is designed with built-in PTZ controller, which is special for transmitting from end camera movement controlling. Build in 120G SSD memory and 17 inch highlight LCD screen, it’s allowed real time video image storage, video monitoring. It also support video playback.

The convenient portable pelican case, PTZ controller, and large volume internal battery design make it wildly applied in outdoor tactical automatic project, like remote wireless video surveillance from robot/ship, EOD robot, UAV point to point application etc.

Features:

* H.264 video compression;
* 17" Standard Samsung LCD screen;
* Built in 1TB SSD memory;
* Support RS485 data signal and video signals transmission simultaneously;
* Advanced AES 128 user-defined password encryption for the security;
* NTSC/PAL adjustable video format;
* Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
* Adjustable working frequency, bandwidth and etc;
* COFDM modulation, stable signal reception;
* 1080P/i & 720P/i video resolution.
* 60000mA internal battery

Specification:

Modulation COFDM
Frequency 300-4400MHz (subdivided)
Memory 1TB SSD
LCD monitor 17inch
RF level Input -105dBm
RF interface N(F)
AV output HDM-I/SDI, CVBS
Modulation COFDM
Power supply AC220V / DC12V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK, 16QAM, 64QAM
Data PTZ control Standard RS485
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard interval 1/32,1/16,1/8,1/4 (optional)
Video format PAL/NTSC
Video decoding H.264/H.265
Resolution 1080P/i, 720P/i
Audio output Analog stereo left and right channels
Data encryption AES128 user-defined password
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70° C
Built in battery 60000mA
Size 520*430*210mm
Weight 18kg

Professional 17inch Standard Video Wireless Transmitter And Receiver with remote controlProfessional 17inch Standard Video Wireless Transmitter And Receiver with remote control
