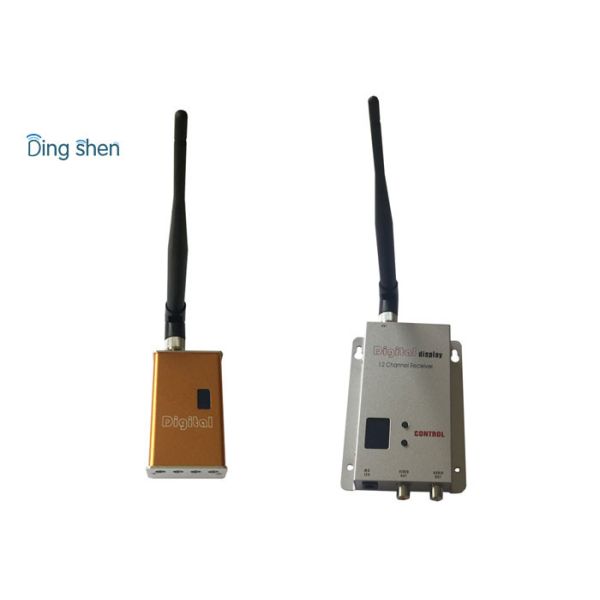

100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link
100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link
100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link
100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link
100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link
100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link
Specifications
Brand Name :
Ding Shen
Model Number :
DS-MINIA7
Place of Origin :
China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
74*56*36mm
Frequency: :
1.2Ghz
Transmit Power: :
6000mW
Weight: :
100g
Number Of Channels: :
6 CHs
Voltage: :
DC12V
Transmit Distance: :
5-10km In Open Place
Description

100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link

Description:

DS-MINIA7 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment. The use of 0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5-10km or so, if the raising of the high gain directional antenna, increased to 12KM away, it can be reach up to 100KM on UAV/helicopters. And transmitter technology is superb and the special metal is more conducive to heat, more suitable for long hours of work. Signal input with common AV interface, it can easily work with camera, VCD, DVD and all other conventional AV interfaces compatible.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link100KM LOS FPV/UAV Wireless Image Transmitter 1.2Ghz , 7W Mini Video Link

Specification:

Transmitter parameter:

Output 36dbm(7W)
Current Consumption 1.5A
Frequency 1.2Ghz
Channel 4 channels
Output impedance 50 Ohm
Audio input impedance 1k Ohm
Video input amplitude 1.2Vp-p
Voltage DC 12V(at 36dbm)
Working current 700mA
The lowest Voltage DC 5V(at 31dbm)
Weight 100g
Size 74*56*36mm
Accessories transmitter, antenna, Tx cable

Receiver parameter:

Frequency 1.2Ghz
Channel 12 channels
Working voltage DC 12V
Current consumption 260mA
Weight 115g
Size 115*80*21mm
Accressories receiver, antenna, AV cable
