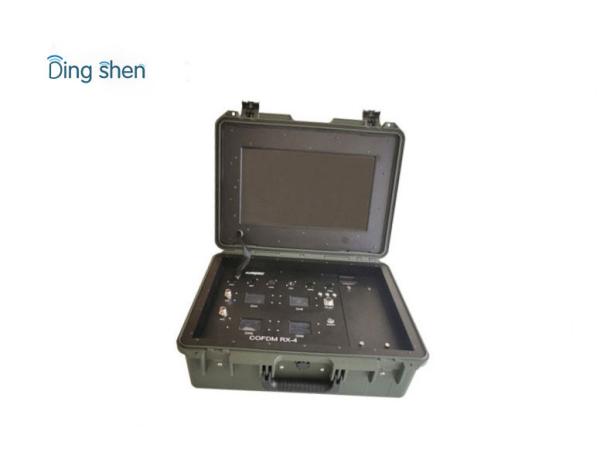

1TB, 4 channel 48 hours recordingCOFDM Wireless Portable Diversity HD Resolution UAV Video Receiver
1TB, 4 channel 48 hours recordingCOFDM Wireless Portable Diversity HD Resolution UAV Video Receiver
1TB, 4 channel 48 hours recordingCOFDM Wireless Portable Diversity HD Resolution UAV Video Receiver
1TB, 4 channel 48 hours recordingCOFDM Wireless Portable Diversity HD Resolution UAV Video Receiver
Specifications
Brand Name :
Ding Shen
Model Number :
DS-DRB04
Place of Origin :
China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
520*430*210mm
Place of Origin: :
Guangdong,china
Model Number: :
DS-DRB04
Frequency: :
300-900Mhz or other frequency customized
LCD monitor: :
17inch
RF interface: :
N(F)
Modulation: :
COFDM
Bandwidth: :
2/2.5/4/8MHz (adjustable)
Brand Name: :
Ding Shen
Product name: :
4 channels hd receiver
AV output: :
HD-MI, CVBS
Power supply: :
AC220V / DC12V
RF Level Input: :
-105dBm~-20dBm
Description

Specification:

briefcase portable COFDM radios with remote control
Frequency 300-900MHz/1.2G/2.4G/5.8GHz (optional)
Memory 1TB, 4 channel 48 hours recording
LCD monitor 17 inch
RF Level Input -105dBm~-20dBm
RF Interface N(F)
AV output HDMI, CVBS
Modulation COFDM
Power supply AC220V / DC12V
Bandwidth 2/2.5/4/8MHz (adjustable)
Constellation QPSK,16QAM,64QM
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video Output 1 line PAL/NTSC analog video
Video Decoding H.264/H.265
Resolution 1080P; 720P
Audio Output Analog stereo left and right channels
Data encryption AES 128/256 bits
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70°C
Built in Battery 14.8V, 10.2Ah, support 4ch 48 hours recording
Size 520*430*210mm
Weight 22kg

1TB, 4 channel 48 hours recordingCOFDM Wireless Portable Diversity HD Resolution UAV Video Receiver

Features:

* H.264 video compression;
* 17" Standard Samsung LCD screen;
* Built in 1TB SSD memory;
* Support RS485 data signal and video signals transmission simultaneously;
* Advanced AES 128 user-defined password encryption for the security;
* NTSC/PAL adjustable video format;
* Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
* Adjustable working frequency, bandwidth and etc;
* COFDM modulation, stable signal reception;
* 1080P/i & 720P/i video resolution.
* 60000mA internal battery
