Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $3700
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
7-10 working days
Description
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Ding Shen
Model Number:
KP-HDT1W
Product name:
1 watt UAV Video transmitter
Frequency:
300-900Mhz or other frequency customized
Modulation:
COFDM
Consumption:
<40W
Encryption:
AES 128 bits
Constellation:
QPSK(4QAM),16QAM,64QAM
FEC:
1/2 2/3 3/4 5/6 7/8
Guard Interval:
1/32 1/16 1/8 1/4
Carrier:
2K,8K
Bandwidth:
2/3/4/6/7/8MHz (option)
Packaging & Delivery
Port
Shenzhen/Hong Kong
Lead Time :
Quantity(Sets) 1 - 100000 >100000
Est. Time(days) 5 To be negotiated
Product Description

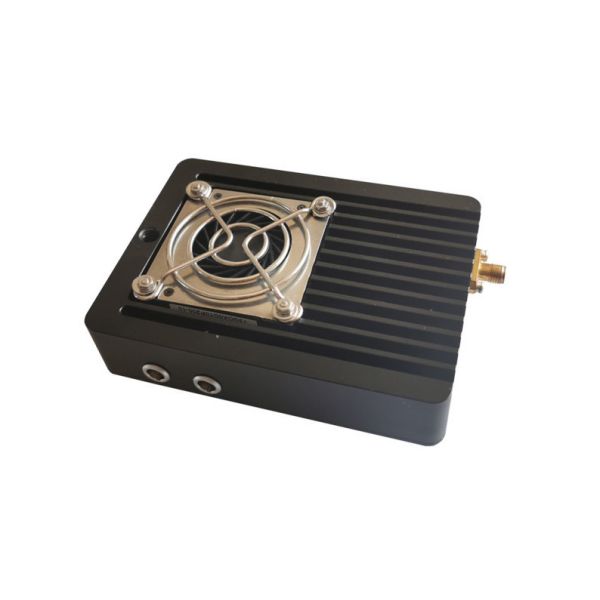

DS-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.

The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular,COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 1 watt
Video input HDMI
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 72*98*32mm
Weight 190g without battery; 250g with battery
Box colour Black
Antenna port

N type
