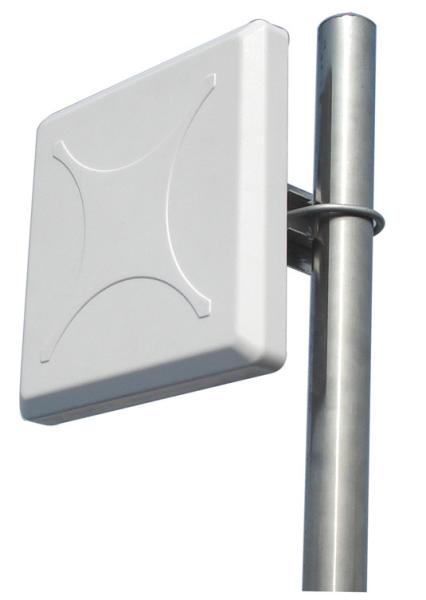

8dBi 400~480MHz Mantenna High Gain Antenna Outdoor Wireless Transmission
8dBi 400~480MHz Mantenna High Gain Antenna Outdoor Wireless Transmission
Specifications
Brand Name :
Ding Shen
Model Number :
DS-800BF8
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Frequency Range :
868
Gain-dBi :
8dbi
Weight :
1KG
Connector :
N (optional)
Description

8dBi High Gain Antenna 400~480MHz Mantenna Antenna For Outdoor Wireless Transmission

Specifications:

Frequency Range 868
Bandwidth 80MHz

Gain-dBi

 8dBi
Beamwidth 55°
F/B ratio-dB

≥15
VSWR ≤1.4
Polarization Vertical
Max Power 100W
Nominal Impedance 50Ω
Connector N (optional)
Length 120cm
Weight

225×225×35
Work Temperature -30°~ 60°
Connector SMA Female or Customization

Antenna Erection

1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).

2 Erect the antennas to the pole with clamp according to polarization required.

3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.

4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
