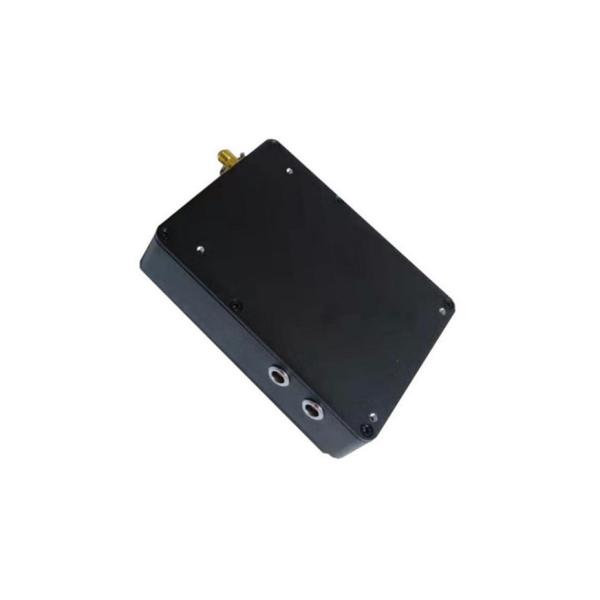

High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
High Quality COFDM HD Wireless 1 Watt UAV Video Wifi Transmitter
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $3700
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Place of Origin: :
china
Frequency: :
300-900Mhz or other frequency customized
Consumption: :
<40W
Brand Name: :
Ding Shen
Encryption: :
AES128/256bits
Modulation :
COFDM
Description

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 1 watt
Video input HDMI
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 72*98*32mm
Weight 190g without battery; 250g with battery
Box colour Black
Antenna port N type

Receiver parameter:

Frequency 300-900Mhz (option) or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 483*300*44mm
Weight 1.5kg
