Specifications
Brand Name :
Ding Shen
Model Number :
DS-DRB01
Place of Origin :
china
MOQ :
1set
Price :
>=1 Sets $3800
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Packaging Details :
55X45X23 cm
Certification :
FCC
Brand Name: :
Ding Shen
Video resolution :
1080P
Encryption: :
AES user-defined password
Description

One Channel Portable COFDM Wireless Video Receiver RF HD AV Receiver with 17 inch Monitor

Wireless COFDM receiver Description:

DS-DRB01 high quality security surveillance HD wireless video receiver is a new design COFDM wireless video audio receiver from Kimpok Technology.

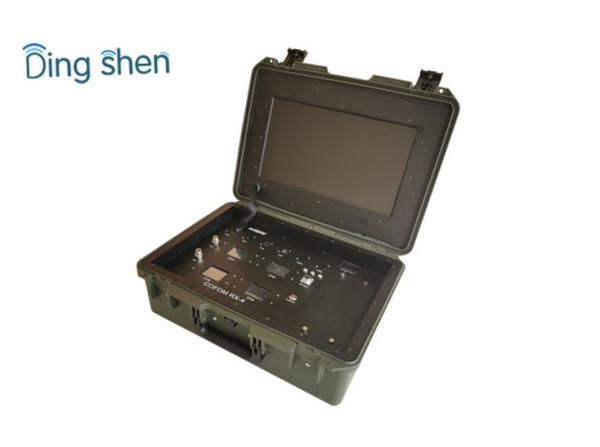

Portable high quality security surveillance HD wireless video receiver is designed with built-in PTZ controller, which is special for transmitting from end camera movement controlling. Build in 120G SSD memory and 17 inch highlight LCD screen, it’s allowed real time video image storage, video monitoring. It also support video playback.

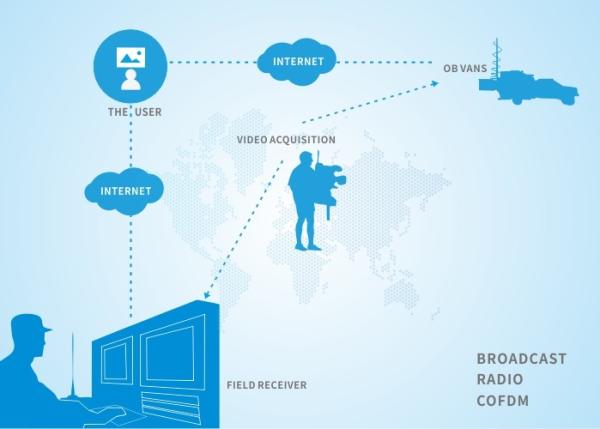

The convenient portable pelican case, PTZ controller, and large volume internal battery design make it wildly applied in outdoor tactical automatic project, like remote wireless video surveillance from robot/ship, EOD robot, UAV point to point application etc.

Feature:

* H.264 video compression;

* 17" Standard Samsung LCD screen;

* Built in 120G SSD memory;

* Support RS485 data signal and video signals transmission simultaneously;

* Advanced AES 128 user-defined password encryption for the security;

* NTSC/PAL adjustable video format;

* Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;

* Adjustable working frequency, bandwidth and etc;

* COFDM modulation, stable signal reception;

* 1080P/i & 720P/i video resolution.

* 20000mA internal battery

Specification:

Frequency 300-4400MHz (subdivided)
Memory 120G
LCD monitor 17inch
RF level Input -105dBm
RF interface N(F)
AV output BNC, HD output
Modulation COFDM
Power supply AC220V / DC12V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK, 16QAM
Data PTZ control Standard RS485
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard interval 1/32,1/16,1/8,1/4 (optional)
Video format PAL/NTSC
Video decoding H.264
Resolution 1080P/i, 720P/i
Lines of horizontal 625 or 525 Line
Audio output Analog stereo left and right channels
Data encryption AES128 user-defined password
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70° C
Built in battery 20000mA
Size 520*430*210mm
Weight 18kg

Long Range Outdoor COFDM Wireless Video Receiver HD AV Receiver with 17 inch MonitorLong Range Outdoor COFDM Wireless Video Receiver HD AV Receiver with 17 inch MonitorLong Range Outdoor COFDM Wireless Video Receiver HD AV Receiver with 17 inch Monitor
