Specifications
Brand Name :
OEM / LinkAV
Model Number :
C200
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
1
Price :
USD, RMB
Payment Terms :
T/T, PayPal
Supply Ability :
1000pcs/Month
Delivery Time :
Negotiable
Packaging Details :
Brown Carton
Output frequency :
46-860MHz; per 0.5MHz adjustable
Modulation type :
COFDM QPSK(4QAM), 16QAM, 64QAM
Audio output :
BNC
Video Codec :
MPEG-2 / H.264
Video Output :
CVBS,HDMI
Receive sensitivity :
-106dBm
Encryption :
AES-128 bit encryption
Working Voltage :
DC12V
Description

Wireless COFDM Receiver Compatible UAV Video Transmitter , HDMI Interface

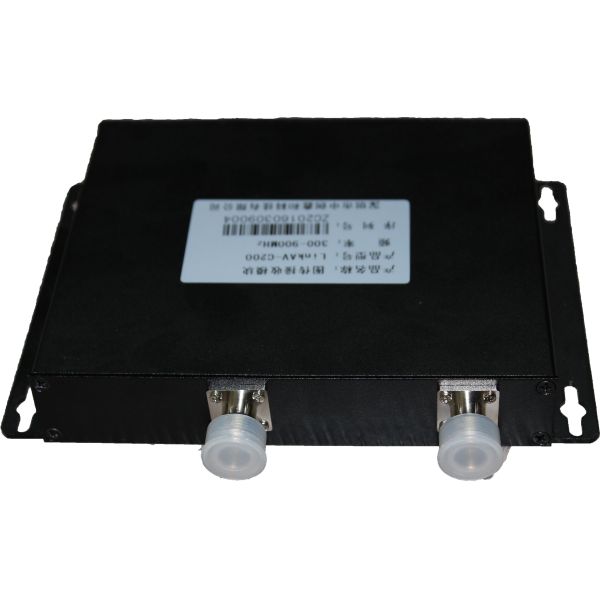

COFDM receiver C200 is small size designed and light weight. It is Professional Diversity Receiver and support HDMI and CVBS interface.

The COFDM receiver transmits high quality SD/HD video in real-time under high speed mobile and NLOS conditions, particularly suitable for use in complex environments;

Technical Parameters:

Item Description
Modulation type COFDM
Output frequency 46-860MHz; per 0.5MHz adjustable
Working bandwidth 1.25/2.5/6/7/8MHz adjustable
Receive sensitivity -106dBm
Video Output CVBS interface
HDMI interface
Audio output BNC,Analog stereo output
Video Compression MPEG-2 /H.264
RF interface TNC,High performance dual channel diversity reception
Encryption AES-128 bit encryption
Parameter Control Adjustable digital LED control panel,RS232
Power supply DC12V
Working environment -10~70℃
Boundary Dimension 179*128*29(mm)

Compatible with LinkAV-C654 UAV Drone COFDM transmitter:

Product features:

Item Description
Modulation Type COFDM QPSK(4QAM), 16QAM, 64QAM
Working Frequency 300-900MHz;( per 0.1M adjustable)
Antenna Gain 2.15dBi
Transmission Power 30dBm(Adjustable)
RF Bandwidth 1.25/2.5/6/7/8MHz(optional)
FEC(forward error correction) 1/2 2/3 3/4 7/8
Guard Interval 1/4,1/8,1/16,1/32
Video Input HDMI(1080P,1080i,720P,720i)
Video Compression H.264
Parameter Control Method Adjustable digital LED control panel, 4-core aviation head
RF Interface SMA F head
Encryption Method 128 - bit AES (can set user’s password)
Working Voltage DC12V
Working Current Max 1.55A(@12V)
Working Temperature -10~70℃
Dimensions 102*60*21.5 (mm)(antenna not included)
Weight 150g(antenna not included)
Transmission Distance 100meter high,5-7km distance
