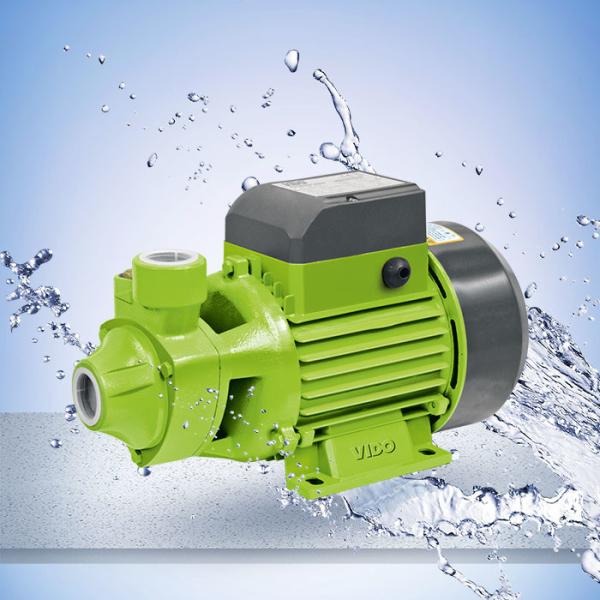

60L/Min 1 HP Peripheral Household Water Pumps，Cast iron for the pump head is anti-rust
60L/Min 1 HP Peripheral Household Water Pumps，Cast iron for the pump head is anti-rust
60L/Min 1 HP Peripheral Household Water Pumps，Cast iron for the pump head is anti-rust
60L/Min 1 HP Peripheral Household Water Pumps，Cast iron for the pump head is anti-rust
Specifications
Brand Name :
VIDO
Model Number :
WD020250750
Place of Origin :
China
Power input :
750W/1HP
Max. head :
50m
Max. flow :
60L/min
Rated voltage :
220-240V~50Hz
Max. suction :
8m
Net/Gross weight :
7.8/8.8Kg
Carton size :
345x175x215 mm 0.013m³
Description

1HP Peripheral pump WD020250750

I. Description

Model WD020250750 is one larger pump than QB60. They belong to the same type. It is called QB80. The head is 50 meters, 15m higher than that of 0.5 hp water pump. The life of this machine depends on several factors below, the motor, rotor spindle, impeller, the fan, and the pump head material. Therefore it is not such a difficulty to judge the quality of one pump when you know these parts' details

II. Specification

Power input: 750W/1HP
Rated voltage: 220-240V~50Hz
Max. head: 50m
Max. flow: 60L/min
Max. suction: 8m
Qty/CTN 1pcs
Net/Gross weight: 7.8/8.8Kg
Carton size: 345x175x215 mm 0.013M3

III. Accessories:

1. 1 PTFE tape

2. 1 manual

3. 1 Warranty card

IV. Feature

Weight for one pump: 8kg

The stainless steel rotor spindle, copper impeller, and demagnetization, keep a low-cost maintenance for every uses.

The copper motor has longer life and the 180-240v voltage can be used widely

Cast iron for the pump head is anti-rust, meanwhile the cost is well-controlled

The max head and flow support highly efficient work

Anti-rust stainless material used inside the front of the pump to avoid the machine from getting stuck

V. Application

This 1HP peripheral pump has the same function with the 0.5HP pump. Its horse power is stronger than that of the small pump.
