【 Sanpu tree digging machine factory selling 】 the diameter of the seedlings dug within 35 cm, the size of the earth ball 80 to 160 cm adjustable, a machine is equal to a professional tree digging team

High horsepower machine lift point

1. The engine is changed from 58 HP to 84 HP, with 50% more power and higher power output torque.

2. Using large displacement pump and motor, the output torque increases by nearly 40%, and the digging force is stronger.

3. Optimize the copper sleeve structure, switch to a thicker shaft, change the tool rest installation mode, convenient maintenance

4. The voltage of the whole vehicle is changed to 24V to increase the cold start performance of the whole vehicle

5. The chain adopts well-known chain.

6. The blade can be equipped with imported wear-resisting layer and alloy steel blade.

7, optional sunshade device. Author: constantia foreign trade import and export reference: https://www.bilibili.com/read/cv14982481 bilibili

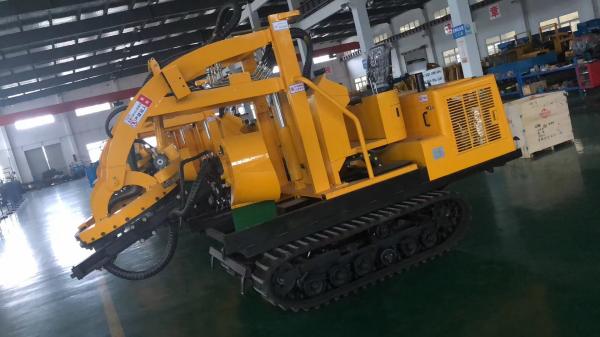

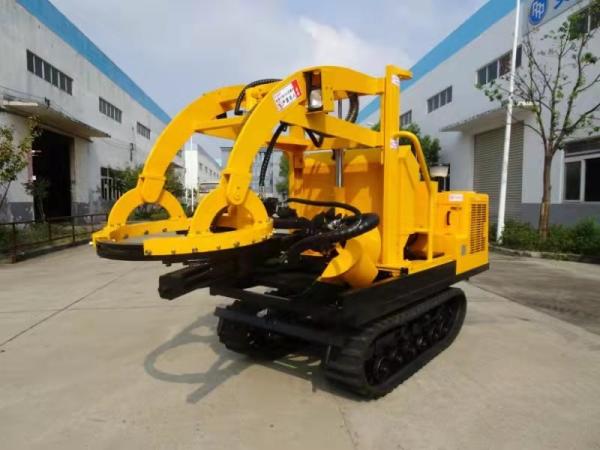

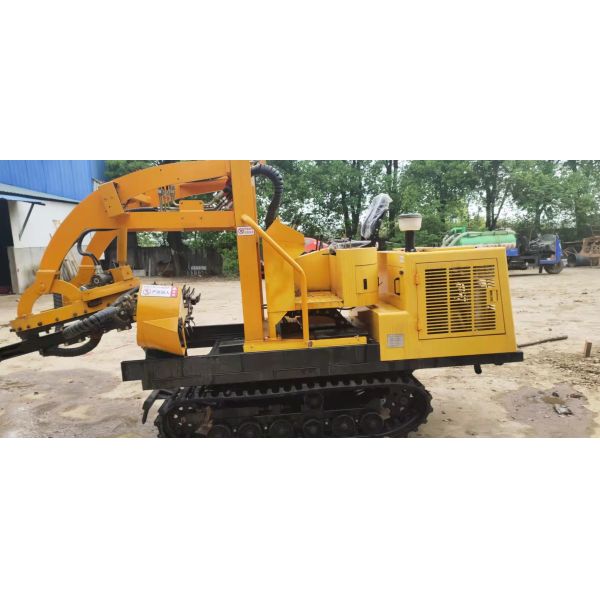

The latest Sampu tree digging machine - Product introduction



"The cost of digging trees by hand is getting higher and higher, and seedling profits are not as good as before. If open source and reduce expenditure "three general tree digging machine has become a nursery, forestry bureau, green engineering, tree digging team must choose equipment. Author: Constanza foreign trade import and export
Weight: 3.4 tons

Width: 1.42 m

Length: 3.83 m

Engine power: 62 kw

DBH of excavated seedlings: within 35 cm

(For bark integrity is not high requirements can be dug to about 38 cm diameter)

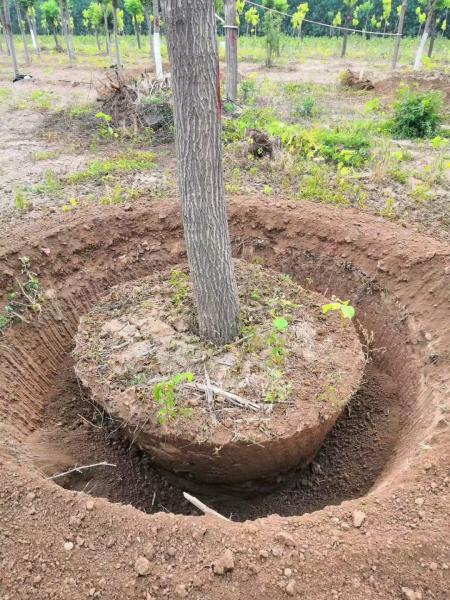

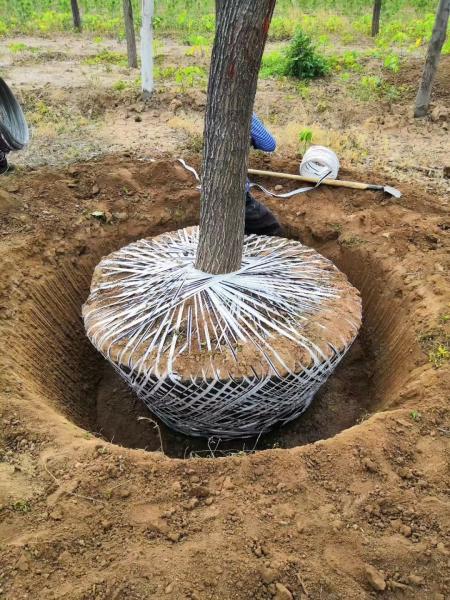

Size of digging ball: 80-160 cm ball (size of ball can be adjusted)

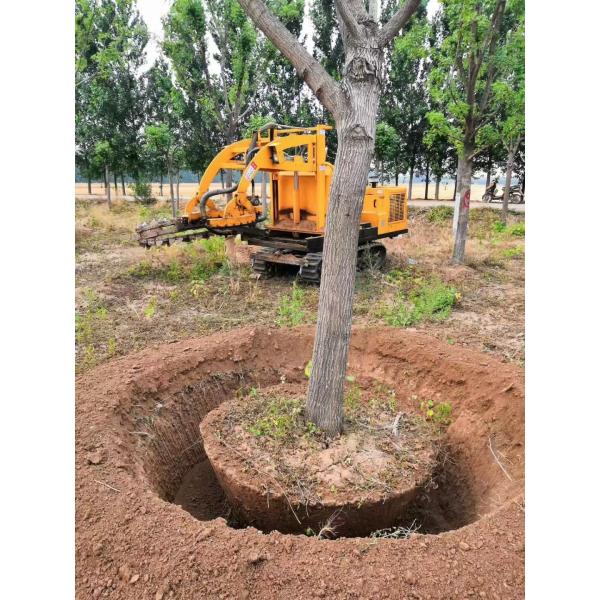

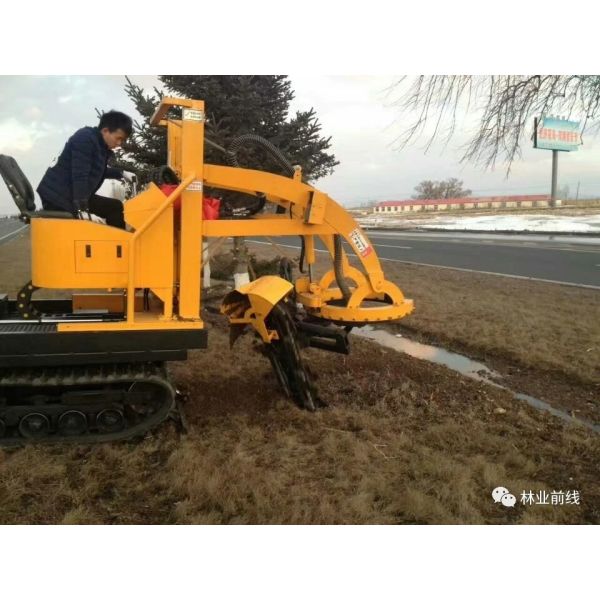

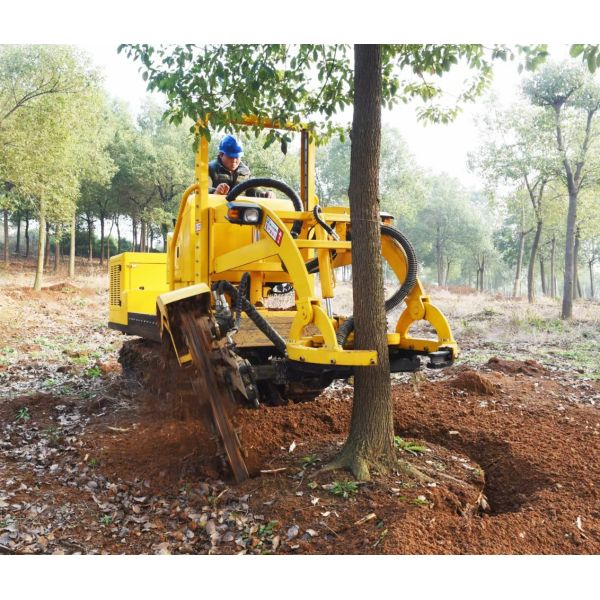

Working principle: chain rotary cutting working principle, imitation of artificial digging tree, complete earth ball survival rate is high.

Digging ball depth: 42-80 cm can be adjusted

Horizontal movement distance of working device: 860mm

Many customers ask the difference between the new high-horsepower tree digging machine and the old one?

High horsepower machine lift point

1. The engine is changed from 58 HP to 84 HP, with 50% more power and higher power output torque.

2. Using large displacement pump and motor, the output torque increases by nearly 40%, and the digging force is stronger.

3. Optimize the copper sleeve structure, switch to a thicker shaft, change the tool rest installation mode, convenient maintenance

4. The voltage of the whole vehicle is changed to 24V to increase the cold start performance of the whole vehicle

5. The chain adopts well-known chain.

6. The blade can be equipped with imported wear-resisting layer and alloy steel blade.

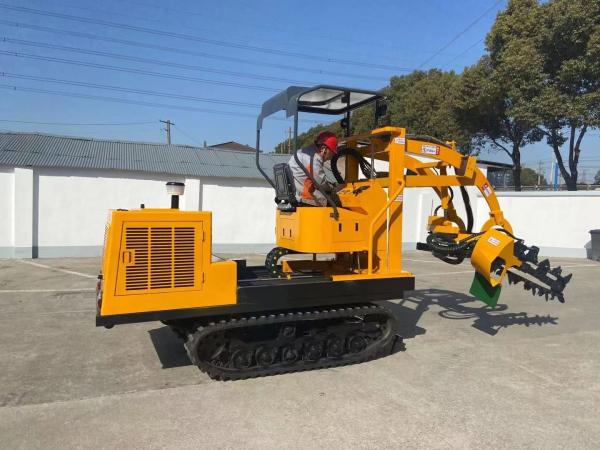

7, optional sunshade device.





Three general tree digging machine use matters needing attention



Matters needing attention



1. The initial working time of the machine is 100 hours for the running-in period. The continuous working time of the machine should not exceed 8 hours every day. (For the first 50 hours, only 80% load is allowed). Author: Constanza foreign trade import and export
