Special Note: This product does not include a power adapter

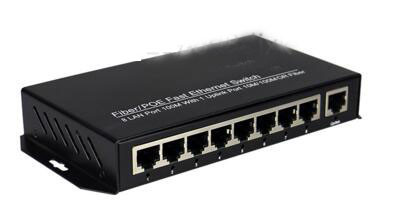

The power adapter is not included 8-port POE Switch

Product Overview

8-port POE switch is specifically designed to reduce network congestion, support long-haul network power supply, and realize data conversion. It not only has the basic functions secular to switchboard, but also supports POE power supply. Each POE power supply port can provide as high as 15W power, and supply power for AP and IP cameras and remote network equipment. As a plug-and-play device, it provides low-cost and high-performance network solutions. It is widely applied to such passive power supply units wireless AP, network camera, IP phone, wireless bridge, IP print server, and DV.

Product Features

* 9-port full isolations, lightning protection, 8 electrical ports, as well as short circuit, overcurrent and overvoltage full protection.

*8 POE Ethernet power supply ports, and each part can provide 15W power.

*9 10/100Mbps self-adapting RJ45 ports, which support auto-overturn (Auto-MDI/MDIX)

*UTP port supports auto-negotiation, for automatic adjustment of transmission mode and transmission rate

*Completely compatible with Ethernet application and Internet system, and able to reduce networking cost

*All ports support IEEE 802.3x half-duplex flow control and full-duplex back pressure mode

*Non-blocking switching fabric, full wire-speed forwarding and maximum-throughput data package filtering

*Support MAC address learning, for automatic adjustment of transmission mode and transmission rate

*LED indicator power and link/activity, supporting simple working status prompting and troubleshooting

POE Characteristics

*Lightning Protection Grade: Three-grade lightning protection

*Port Description: 8 10M/100M copper cable RJ45 ports

*Network media: 9 type and said unshielded twisted pair (≦ 100 meters)

*Forwarding Mode: storage and forwarding

*Supportable Protocols IEEE 802.3, IEEE 802. 3u, and IEEE802. 3x
*POE Port: 1-4 ports support IEEE 802.3af (15.4W) network power supply

*POE Standard: IEEE 802.3af (port output power 15.4W)

*POE Wire Core: 1/2﹢, 3/6-line pair

*POE Total Power: 120W (Input: DC48V 3000mA)

POE Functions

*With POE Automatic Identification System, it will not burn out any equipment

*Intelligent function management, powered device total power overload, system startup priority mechanism, cut-off of power supply for the ports with low priority

* Support overcurrent protection, overvoltage protection, and PD hierarchical power saving mechanism

*Powerful auto shutdown function can protect an external equipment in real time

*9-port POE, and 4-port POE for power supply, suitable for most requirements of power supply monitoring.

General indicators

*Operating Environment: temperature: -30℃~75℃, humidity: 0~95% (No Condensation)

*Power Supply: external power adapter (Input AC220V, Output, 48V 3A)

*Product Size: 17.2(cm)*9(cm)*3(cm)

*Package Size: 30(cm)*20(cm)*8(cm)

*Weight: 0.8KG/PCS
