• Brand Name:TuoTaiDa
• Package:Yes
• Function:POE
• Switch Type:Quick Switch
• Transmission Rate:10/100Mbps
• Certification:CE FCC
• Model Number:TTD-8POE-S
• Number of Interfaces:9
• Communication Mode:Full-Duplex & Half-Duplex
• Supply agreement:IEEE 802.3af(15.4W)
• Power Distance:100 meters
• Products Status:Stock
• Ports:≤ 8

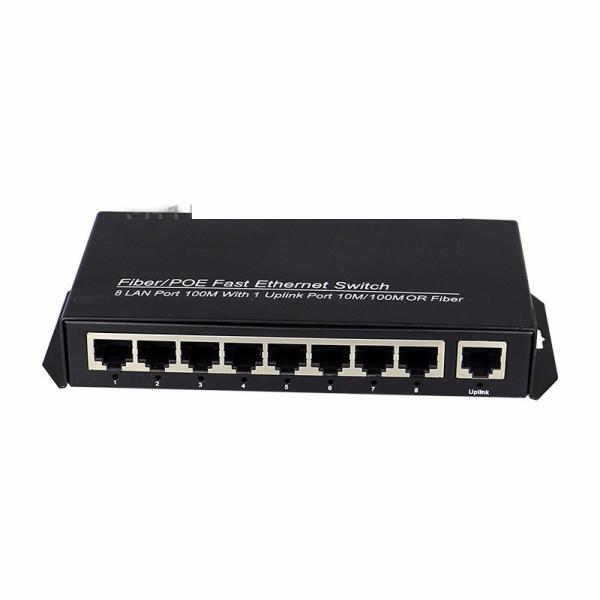

Product description

9 POE switch is a designed to reduce network congestion, network support long-distance power, data conversion POE

switches, both with the basic functions of the switch supports POE power supply. Each POE power supply port can provide

maximum 15W of power, which can be powered wireless AP, IP cameras, network remote equipment, plug and play, providing a

low-cost and high-performance networking solutions. Widely used in wireless AP, network cameras, IP phones, wireless bridge,

IP print servers, high-definition digital video and other passive powered devices.

Product Features

.8 POE Power over Ethernet ports, each port can provide 15W power.

.9 A 10 / 100Mbps adaptive RJ45 ports support auto-flip (Auto-MDI / MDIX)

.UTP Ports support auto-negotiation function automatically adjusts the transmission and transfer rate

.Fully compatible with Ethernet applications, the Internet system to reduce networking costs

.All ports support IEEE 802.3x full-duplex flow control and half-duplex backpressure mode

. Non-blocking switching architecture, wire-speed forwarding and filtering packets maximum throughput

.Support MAC address learning, automatically adjusts the transmission and transfer rate

.LED Indicate power and link / activity, provide a simple working condition and troubleshooting tips

POE features

.Port Description: 8-port 10M / 100M copper RJ45 ports

.Network Media: Class 5 and above unshielded twisted pair ( 100 meters)

.The forwarding mode: store and forward

.Supported protocols:. IEEE 802.3, IEEE 802. 3u, IEEE802 3x

.POE Port: Port 1-8 technical support IEEE 802.3af (15.4W) network powered

.POE Standards: IEEE 802.3af (port output power 15.4W)

.POE Pass wire core: 1/2 +, 3/6-wire pair

.POE Total power: 120W (Input: DC48V 3000mA)

.Working environment: temperatureMinus thirty degrees to seventy degrees above zero, Humidity: 0 ~ 95% (no cold condensation)

.Power supply: External power adapter (Input AC220V, output 48V 3A)

. Weight: 1KG / Taiwan

POE function

.The band POE automatic identification system, will not burn any device

.Intelligent function management, the power equipment, the total power overload, the system boot priority mechanism, cut low priority PoE

.Support overcurrent holding, overvoltage protection, PD efficacy grade energy-saving mechanism

.Powerful automatic shut-off function, real-time protection any external equipment

.9 Port POE power supply switch, 8-port POE power supply, monitor power requirements can adapt to most

Packing list

8-port POE Switch *1 Piece

48V3A power supply * 1 Piece

Instructions * 1
