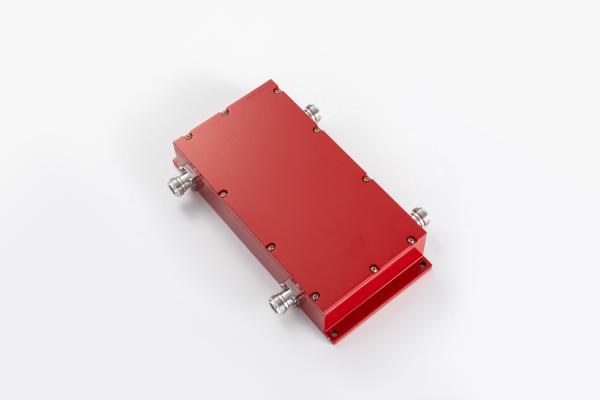

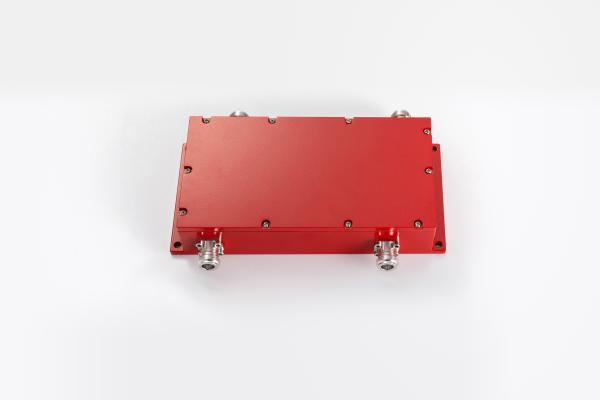

138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler
Specifications
Brand Name :
Vinncom
Model Number :
VN-HC2x2-013096-Ox
Certification :
RoHS/ISO9000
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, T/T
MOQ :
5 PCS
Price :
2in 2out
Operating Frequency ( MHz ) :
130-960
Impedance ( Ohm ) :
50
VSWR :
≤1.25
IM3 (dBc @ 2×43dBm) :
-150 / -160
Handling Power (Watt, max) :
500（N:300）
Description

138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler

  • Good VSWR
  • High isolation
  • Portable for installation

VN-HC2x2-138960-OP-xxx.pdf

VN-HC2x2-138960-ON-xxx.pdf

VN-HC2x2-138960-OD-xxx.pdf

Part Number VN-HC2x2-013096-Ox
Operating Frequency ( MHz ) 130-960
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB) 3.0±1.0
Insertion Loss (dB) 3.7
Isolation (dB) ≥21
IM3 (dBc @ 2×43dBm) -150 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female 4.3-10 Female DIN Female
Handling Power (Watt, max) 500(N:300)
Peak Power (Watt, max) 1500(N:1200)
Dimension (mm)(L×W×H, excl connector) 195× 92 × 39
Net Weight (g) 1515 ± 5% 1590 ± 5% 1650 ± 5%
Packing Dimensions (mm,L×W×H) 210 × 170 × 65
Packing Carton Size (mm,L×W×H) 530 × 440 × 80
ROHS Compliance Yes

138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler138-960MHz 2in 2out N Female/4.3-10 Female/DIN Female Hybrid Coupler

138-960MHz Hybrid Coupler VSWR ≤1.25 PIM -150 / -160 500W(N:300W)

Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
