550-6000MHz N Female Directional Coupler
550-6000MHz N Female Directional Coupler
550-6000MHz N Female Directional Coupler
550-6000MHz N Female Directional Coupler
550-6000MHz N Female Directional Coupler
550-6000MHz N Female Directional Coupler
Specifications
Brand Name :
Vinncom
Model Number :
VN-DC-05560
Certification :
RoHS/ISO9000
Place of Origin :
China
Payment Terms :
T/T, L/C, D/A, D/P
MOQ :
5 PCS
Price :
negotiation
Operating Frequency ( MHz ) :
550-6000
Connector :
N Female
VSWR :
≤1.35
PIM :
-150/-155/-161/-165
Handling Power (Watt, max) :
300
Degree of Protection :
IP65
Description

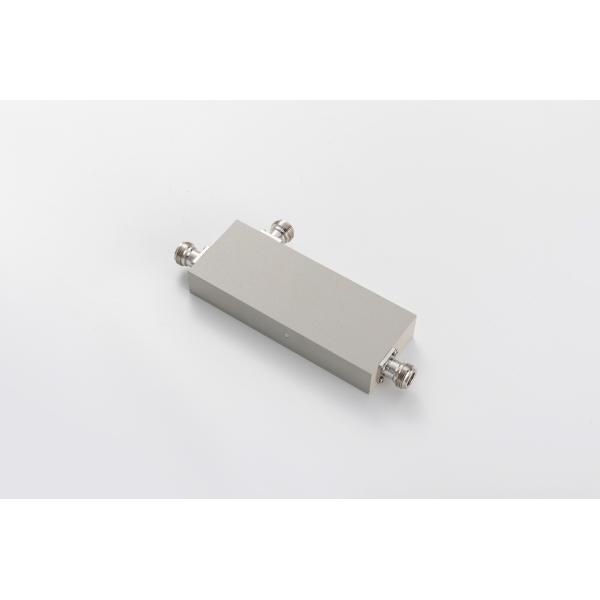

550-6000MHz N Female Directional Coupler

  • High directivity
  • Good PIM up to -165@43dBm*2
  • Good returen loss

VN-DC-05560-ONx-xxx.pdf

Part Number VN-DC-05560-ON
Operating Frequency ( MHz ) 550-6000
Impedance ( Ohm ) 50
VSWR ≤1.35
Coupling (dB) 5 ± 1.4 6 ± 1.4 7 ± 1.4 8 ± 1.4 10 ± 1.6 15± 1.6 20 ± 1.8
Insertion Loss (dB) ≤2.5 ≤1.8 ≤1.5 ≤1.2 ≤1.1 ≤0.4 ≤2.2
Isolation (dB) ≥21 ≥22 ≥23 ≥24 ≥26 ≥31 ≥35
IM3 (dBc @ 2×43dBm) -150/-155/-161/-165
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 127X40X31
Net Weight (g) 450± 5%
Packing Dimensions (mm,L×W×H) 190 × 80 × 45
Packing Carton Size (mm,L×W×H) 430 × 400 × 105
ROHS Compliance Yes

550-6000MHz N Female Directional Coupler550-6000MHz N Female Directional Coupler

Directional couplers are a passive device used mostly in the field of radio technology. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another radio system or next radio equipment. An essential feature of directional couplers is that they only couple power flowing in one direction. Power entering the output port is coupled to the isolated port but not to the coupled port. A directional coupler designed to split power equally between two ports is called a hybrid coupler, for example ,3dB hybrid coupler.
