700-3800MHz N Female Directional Coupler
700-3800MHz N Female Directional Coupler
Specifications
Brand Name :
Vinncom
Model Number :
VN-DC-0738-INX
Certification :
ISO9000/RoHS
Place of Origin :
Hefei,China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
800pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
box/bubble pack/carton
Color :
Black or Gray
IM3 :
customization
Connector :
N Female
Material: Cavity :
Aluminum Silver-plated
Frequency :
700-4000MHz
Impedance :
50Ω
Description

700-3800MHz N Female Directional Coupler

● Low Insertion Loss
● High power handing
● Low PIM Low VSWR

VN-DC-0738-INX-150.pdf

Part Number VN-DC-0740-INX
Operating Frequency ( GHz ) 700-4000
Impedance ( Ohm ) 50
VSWR ≤1.25
Coupling (dB)@x 5 6 7 10 12 15 20 30
Tolerance ± 0.8 ± 0.8 ± 0.9 ± 1.0 ± 1.0 ± 1.0 ± 1.2 ± 1.5
Insertion Loss (dB) ≤2.05 ≤1.60 ≤1.40 ≤0.96 ≤0.96 ≤0.5 ≤0.22 ≤0.2
Isolation (dB) ≥23 ≥24 ≥25 ≥28 ≥28 ≥33 ≥38 ≥45
IM3 (dBc @ 2×43dBm) -150
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200

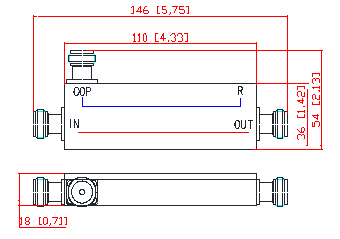

Dimension (mm)(L×W×H, excl connector) 110×36×18
Net Weight (g) 155 ± 20
Packing Dimensions (mm,L×W×H) 180×75×30
Packing Carton Size (mm,L×W×H) 430×380×170
ROHS Compliance Yes

700-3800MHz N Female Directional Coupler700-3800MHz N Female Directional Coupler
Directional couplers are common microwave/millimeter wave components in microwave measurement and other microwave systems, which can be used for signal isolation, separation and mixing, such as power monitoring, source power stability, signal source isolation, transmission and reflection of sweep frequency test. It is a directional microwave power divider and an indispensable part of modern sweep reflectometer. It usually has waveguide, coaxial line, ribbon line and microstrip.
Product Application
700-3800MHz N Female Directional Coupler
Rf passive components are mainly applied in wireless communication system construction of the base station and indoor distribution system. Especially in the building indoor wireless signal distribution covers the application of a wide range of large Numbers. Rf passive components in the base station construction and indoor distribution project have the effect of rf signal connection or distribution. Indoor distribution system is to launch the base station signal connection or shunt by rf passive components, the cover points through the feeder for the antenna, so as to achieve continuous good indoor wireless signal coverage. Indoor distribution system mainly includes the source and day supply distribution system two parts.
Passive components is the main part of day feed system.
Related Products
700-3800MHz N Female Directional Coupler
698-2700MHz/698-3800MHz IP65 N Female4.3-10 FemaleDIN Female Connector can available.
Our Tester
700-3800MHz N Female Directional Coupler700-3800MHz N Female Directional Coupler

This is our basic test instrument.Following test record.

700-3800MHz N Female Directional Coupler

700-3800MHz N Female Directional Coupler

700-3800MHz N Female Directional Coupler

The performance parameters of RF passive devices mainly include operating band, insertion loss, input-output standing wave, port isolation, in-band fluctuation, out-of-band suppression, intermodulation products and power capacity.Good performance benefits the network.
