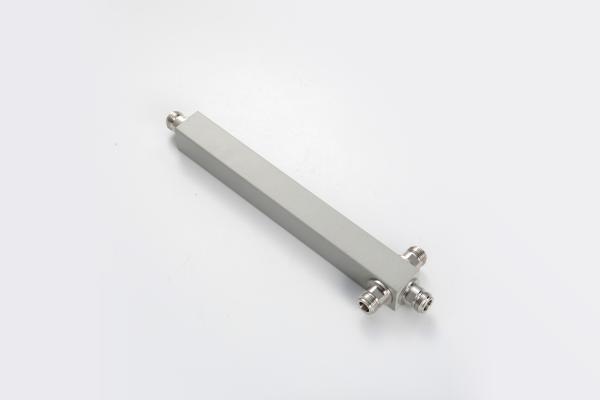

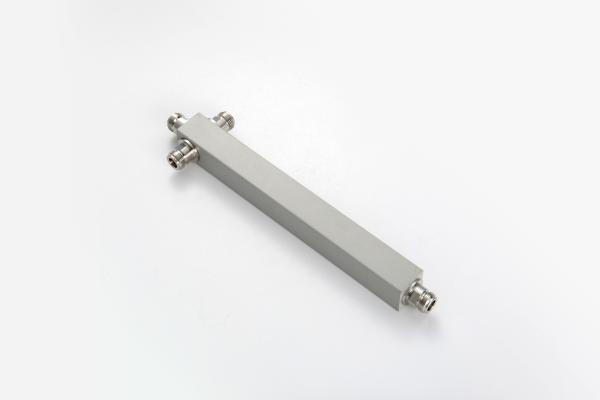

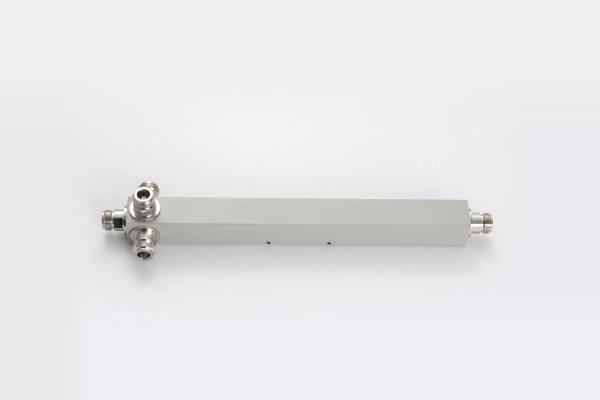

Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz
Specifications
Brand Name :
Vinncom
Model Number :
VN-PS-0740-ONx
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Part Number :
VN-PS-0740-ONx
Operating Frequency ( MHz ) :
700-4000
Impedance ( Ohm ) :
50
IM3 (dBc @ 2×43dBm) :
-140 / -150 / -155 / -160
Degree of Protection :
IP65
Interface :
N Female
Description
700-4000MHz N Female Power Splitter VSWR ≤1.25/≤1.3
  • Low PIM
  • Good VSWR
  • Wide band frequency
Part Number VN-PS-0740-ONx
Operating Frequency ( MHz ) 700-4000
Impedance ( Ohm ) 50
VSWR ≤1.25 ≤1.3 ≤1.25
Split Loss (dB) ≤3.3 ≤5.1 ≤6.5
IM3 (dBc @ 2×43dBm) -140 / -150 / -155 / -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200
Dimension (mm)(L×W×H, excl connector) 218 × 25 × 25 218 × 25 × 25 244 × 25 × 25
Net Weight (g) 375± 20 405 ± 20 470 ± 20
Packing Dimensions (mm,L×W×H) 280 × 80 × 35 280 × 80 × 35 320 × 80 × 35
Packing Carton Size (mm,L×W×H) 580× 420 × 160 580× 420 × 160 655× 410 × 140
ROHS Compliance Yes

Aerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHzAerial N Female RF Antenna Splitter VSWR Less 1.25 / Less 1.3 700-4000MHz

Reactive power splitters have been used to be signal divider- component for antenna distribution system (DAS) and signal cable systems for in-building /out building signal coverage because of their low loss and rugged nature., reactive splitters are quarter wave length lines matched to split signals evenly to the output paths. This characteristic allows for efficient, high power, broadband operation with minimal solder joints and better 3rd PIM

Vinncom reactive power splitters has widely frequency up to be 8GHZ,small sizes,and low PIM( -165dbc ).and welcome customized products design.
