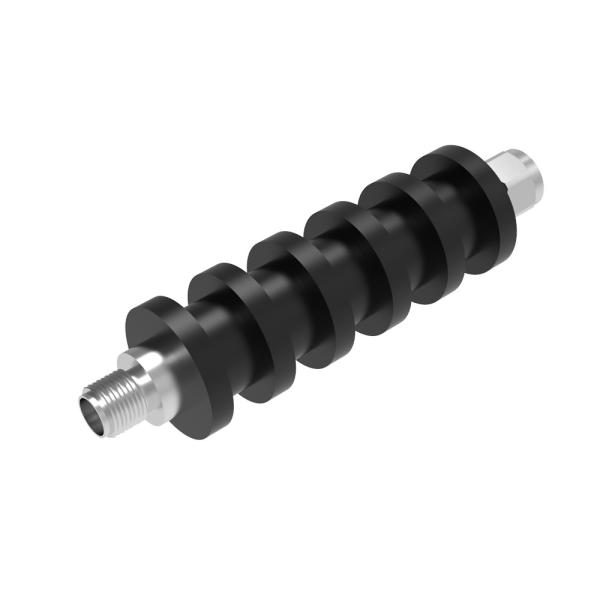

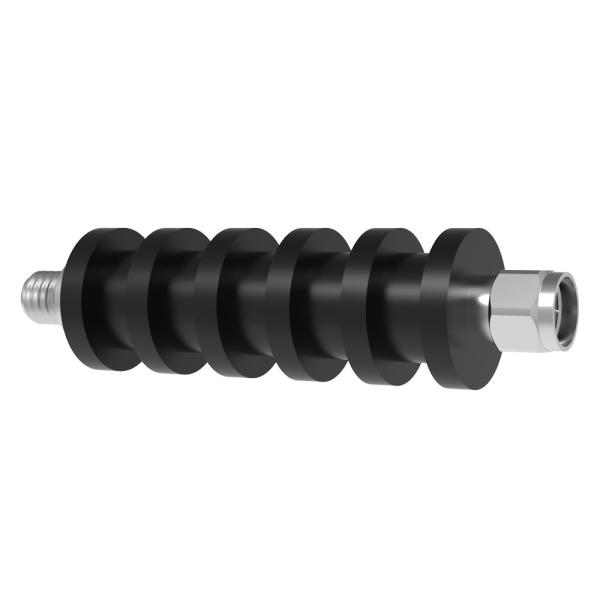

Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Indoor 40dB Male Adjustable RF Attenuator DC 26GHz 10W
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-26G-10W-SMA
Certification :
RoHS ISO9000
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300pcs per day
Delivery Time :
depends on quantity
Packaging Details :
box/carton
Operating Frequency :
DC-26 GHZ
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Degree of Protection :
IP65
Handling Power (Watt, max) :
10W
Interface :
SMA Male - SMA Female
Description

DC-26GHz 10W SMA Male-SMA Female 3-40dB Attenuator

  • High attenuation accuracy
  • High indicator stability
  • Wide working frequency range

Part Number VN-AT-26G-10W-SMA
Operating Frequency DC-26 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 10W
Interface SMA Male - SMA Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3,6 10 20 30,40 VSWR
DC~4 ±0.4 ±0.4 ±0.4 ±0.4 1.15
DC~8 ±0.4 ±0.5 ±0.5 ±0.5 1.2
DC~12.4 ±0.6 ±0.6 ±0.6 ±0.6 1.25
DC~18 ±0.8 ±1 ±1 ±1 1.3
DC~26.5 -0.5/+1.0 -0.5/+1.5 -0.5/+1.2 ±1.2 1.35
Dimension (mm), include connector) Φ16.5*46.5mm
Net Weight (g) /
Packing Dimensions (mm,L×W×H) /
Packing Carton Size (mm,L×W×H) /
ROHS Compliance Yes
