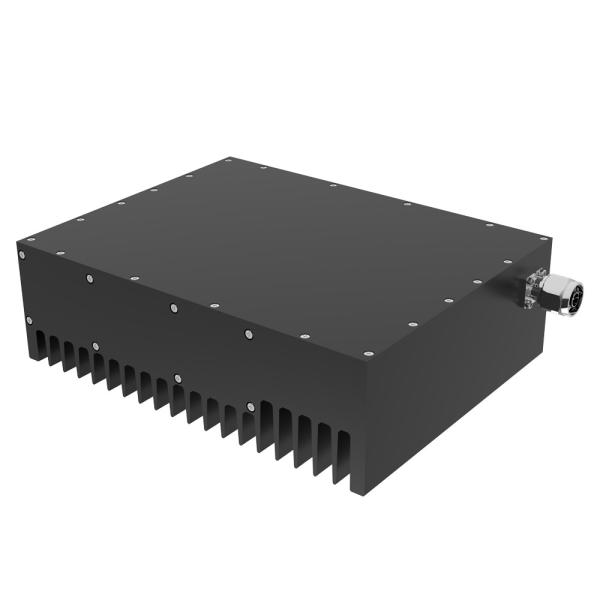

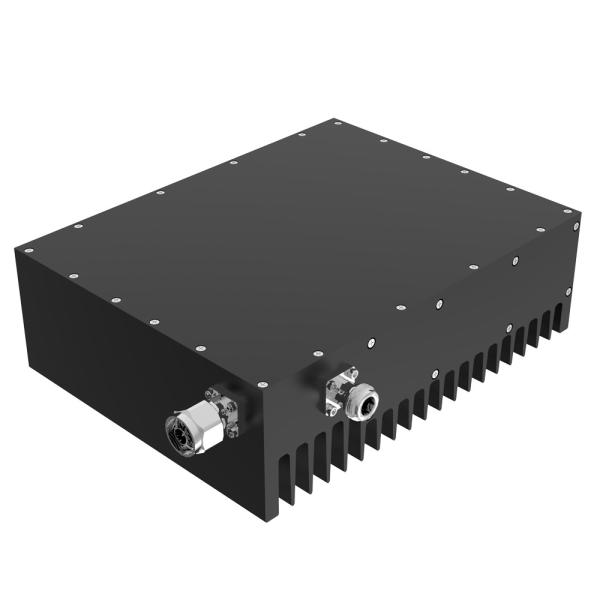

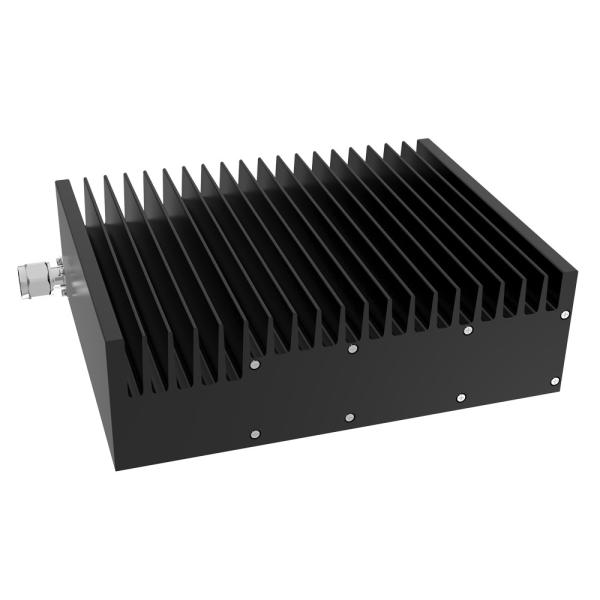

Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female
Specifications
Brand Name :
Vinncom
Model Number :
VN-LPAT-0640-100W-ONx
Certification :
ROHS ISO9000
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, T/T
Supply Ability :
100pcs per day
Connector :
N male-N female
Frequency :
600-4000 MHz ,698-4000MHz
Design :
Coupler+Cable rolling
PIM :
-165dbc @ 43dbm*2
Color :
Black or Customized
Description

600-4000MHz 698-4000MHz 100W -155dbc 160dbc N Male To N Female Low PIM RF Attenuator

  • Good VSWR
  • Wide band frequency
  • Low PIM

Part Number VN-LPAT-0640-100W-ONx
Operating Frequency ( MHz ) 600-4000
Impedance ( Ohm ) 50
VSWR ≤1.30
Attenuation (dB) 5 6 7 8 10 12 15 20
Tolerance (dB) ± 0.9 ± 0.9 ± 0.9 ± 0.9 ± 1.2 ± 1.5 ± 1.5 ± 1.5
IM3 (dBc @ 2×43dBm) -153 / -163
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male to N Female
Handling Power (Watt, max) 100
Peak Power (Watt, max) 800
Dimension (mm)(L×W×H, excl connector) 220*170*68
ROHS Compliance Yes

Vinncom Wideband Low PIM Attenuator For Signal Power 4000MHz N Male To Female

RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
