350-520MHz XdB Directional Coupler RF Antenna Combiner For Indoor / Outdoor
350-520MHz XdB Directional Coupler RF Antenna Combiner For Indoor / Outdoor
Specifications
Brand Name :
Vinncom
Model Number :
VN-DC-035052-INx
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Connector Type :
N Female
Color :
Black
Frequency Range :
350-520MHz
Impedance :
50Ω
Insertion Loss :
≤1.2dB
Material :
Aluminum Alloy
Operating Temperature :
-40℃~+85℃
Power Handling :
≤300W
Product Name :
RF Antenna Coupler
Storage Temperature :
-55℃~+85℃
VSWR :
≤1.2
Description

350-520MHz xdB Directional Coupler

  • Good VSWR at all ports
  • Good returen loss
  • Portable for installation

Part Number VN-DC-035052-INx
Operating Frequency ( MHz ) 350-520
Impedance ( Ohm ) 50
VSWR ≤1.2
Coupling (dB) 5 ± 0.8 6 ± 0.8 10 ± 1 15 ± 1 20 ± 1 30 ± 1.2
Insertion Loss (dB) ≤2.0 ≤1.6 ≤0.7 ≤0.3 ≤0.1 ≤0.04
Isolation (dB) ≥25 ≥26 ≥30 ≥35 ≥40 ≥50
IM3 (dBc @ 2×43dBm) -150
Application Indoor/Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 300
Peak Power (Watt, max) 1200

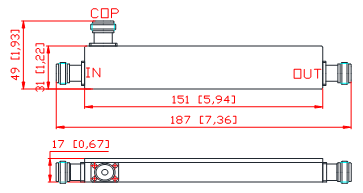

Dimension (mm)(L×W×H, excl connector) 151X31X17
Net Weight (g) 330± 20
Packing Dimensions (mm,L×W×H) 190 ×80 × 45
Packing Carton Size (mm,L×W×H) 430 ×400 ×240
ROHS Compliance Yes

350-520MHz XdB Directional Coupler RF Antenna Combiner For Indoor / Outdoor350-520MHz XdB Directional Coupler RF Antenna Combiner For Indoor / Outdoor
