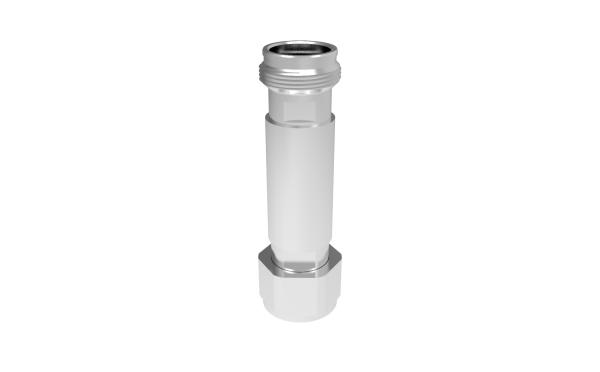

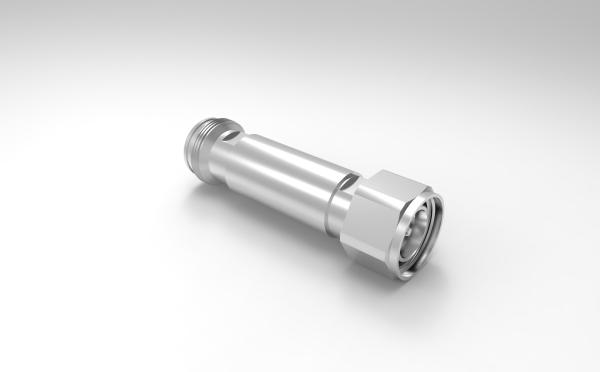

DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB
DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB
DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB
DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-4G-5W-OP40~60
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Operating Frequency ( MHz ) :
DC-4000
VSWR :
≤1.25
Interface :
4.3-10 Male - 4.3-10 Female
Application :
Indoor
Description

DC-4G 5W 4.3-10Male-4.3-10 Female 40~60dB

  • Good VSWR
  • High indicator stability
  • High attenuation accuracy

VN-AT-4G-2~5W-OP40~60.pdf

Part Number VN-AT-4G-5W-OP40~60
Operating Frequency DC-4000
Impedance ( Ohm ) 50
VSWR ≤1.25@DC-3000
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt) 5(max)
Interface 4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 40 50 60
Attenuation Tolerance(dB) ±1.2 ±1.5 ±1.8
Dimension (mm) 90×Φ18(includes connectors)
Net Weight (g) 70
Packing Dimensions (mm,L×W×H) 110 × 30 ×30
Packing Carton Size (mm,L×W×H) 220 × 220 × 215
ROHS Compliance Yes

DC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dBDC-4G 5W 4.3-10 Male-4.3-10 Female RF Attenuator 40~60dB
