DC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
DC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
DC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
DC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
DC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
DC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
Specifications
Brand Name :
Vinncom
Model Number :
VN-AT-4G-5W-ONX
Certification :
ISO 9000 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Operating Frequency ( MHz ) :
DC-4000
VSWR :
≤1.20
Interface :
N Male - N Female
Degree of Protection :
IP65
Application :
Indoor & Outdoor
Dimension :
35×Φ18
Description

DC-4G 5W 4.3-10 Male-4.3-10Female xdB Attenuator

  • Good VSWR
  • Wide working frequency range
  • Wide band frequency

Vinncom has many types of RF attenuators with different frequency range. Vinncom

also can supply attenuators with good PIM value in some RF syetems.RF attenuators

usually can be used to reduce the power of the signal within many RF circuit designs and RF systems.

VN-AT-4G-2~5W-OPx.pdf

Part Number VN-AT-4G-5W-ONX
Operating Frequency DC-4000MHz
Impedance ( Ohm ) 50
VSWR ≤1.20@DC-4000MHz
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt) 5(max)
Interface 4.3-10 Male - 4.3-10 Female
Operating Temperature ( ℃ ) -40 ~ + 80
Attenuation(dB) 3 5 6 10 15 20 30
Attenuation Tolerance(dB) ±0.4 ±0.4 ±0.5 ±0.7 ±0.8 ±0.8 ±08

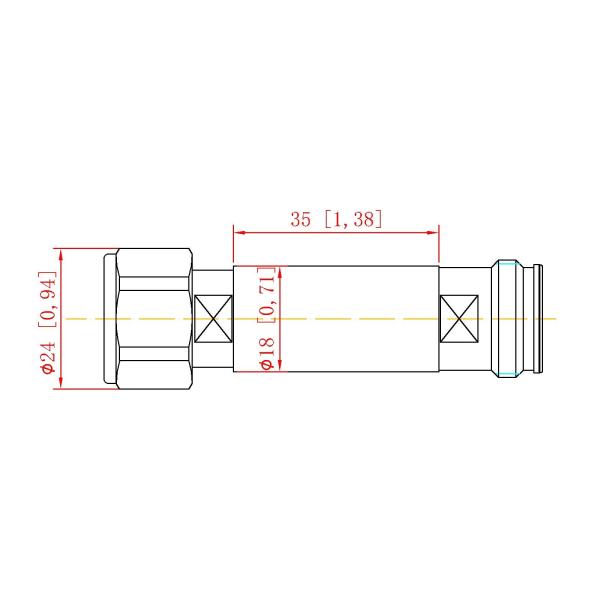

Dimension (mm) 35×Φ18(excludes connectors)71.4×Φ18(includes connectors)
Net Weight (g) 70
Packing Dimensions (mm,L×W×H) 80 × 30 ×30
Packing Carton Size (mm,L×W×H) 220 × 220 × 215
ROHS Compliance Yes

DC-4G 5W 4.3-10 Male-4.3-10 Female xdB AttenuatorDC-4G 5W 4.3-10 Male-4.3-10 Female xdB Attenuator
