INTRODUCTION
The materials of our floor are virgin materials instead of recycled materials to make sure the
high quality of our floors. The price of our floors is the most competitive in the market in the
same quality products
(a), This model is applied to badminton; gymnasium; dancing room;
(b), Our other PVC flooring are applicable for all kinds of sports court; universities and
colleges; elementary and junior school ;kindergarten; gym; dancing room; shopping center; hotel ;leisure room of enterprises and multifunction rooms.
(d), Mobile installation, easy cleaning and comfortable feeling.
(e), We are manufacturer, so specification and color can as be your requirement if your order is over 800SQM.
(f), Our PVC floor is 100% pure PVC material instead of recycled materials
(g), We are the PVC flooring supplier of 2008 Beijing Olympic Games
(h), Taking everything into consideration, you will find that our prices are comparably favorable with the quotations you can get else where
The impulse effect posed by exercising produces vibration on the PVC plastic rubber floor.
The floor configuration must be provided with the function of absorbing vibration. That is to say,
the floor should possess the capacity of absorbing the bumping energy.
PHYSICAL PERFORMANCE
PVC Sports Flooring |
Item: RHH3001 |
Size: 4.5mm X 1.8m X 20m / 6.5mm X 1.8m X 15m |
Wear Layer: 0.3mm-2mm |
Color: Green, Blue, Gray, Orange, Red |
Packing: Kraft packing |
KGS/SQM: 3.7 |
Multifunctional use: badminton, table tennies, vollyball, basket ball |
Sport characteristics
Hardness | -- | HD | 120 | 115 | 115 | 115 | 115 |
Rebound values | -- | % | 9 | 8 | 8 | 8 | 8 |
Shock absorption | DIN18032 | % | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 |
Friction coefficient | DIN18032 | -- | 0.45 | 0.65 | 0.45-0.65 | 0.45-0.65 | 0.65 |
Ball bounce | DIN18032 | % | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 |
Technical characteristics
Indentation resistance | EN1516 | mm | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 |
Abrasion resistance | ENISO5470-1 | mg | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 |
Impact resistance | DIN18032 | N/M | ≥8 | ≥8 | ≥8 | ≥8 | ≥8 |
Sound insulation | ENISO717-2 | dB | 19 | 19 | 19 | 19 | 19 |
Surface treatment | resistance to staining | UV treatment,easy to maintain and care |
Chemical detection
Volatile content | ≤35 | g | 5.28 | 5.26 | 5.26 | 5.26 | 5.26 |
VInyl chloride monomer | ≤5 | mg/kg | 0.43 | 0.43 | 0.43 | 0.43 | 0.43 |
Soluble pb limit | ≤20 | mg | 0.526 | 0.526 | 0.526 | 0.526 | 0.526 |

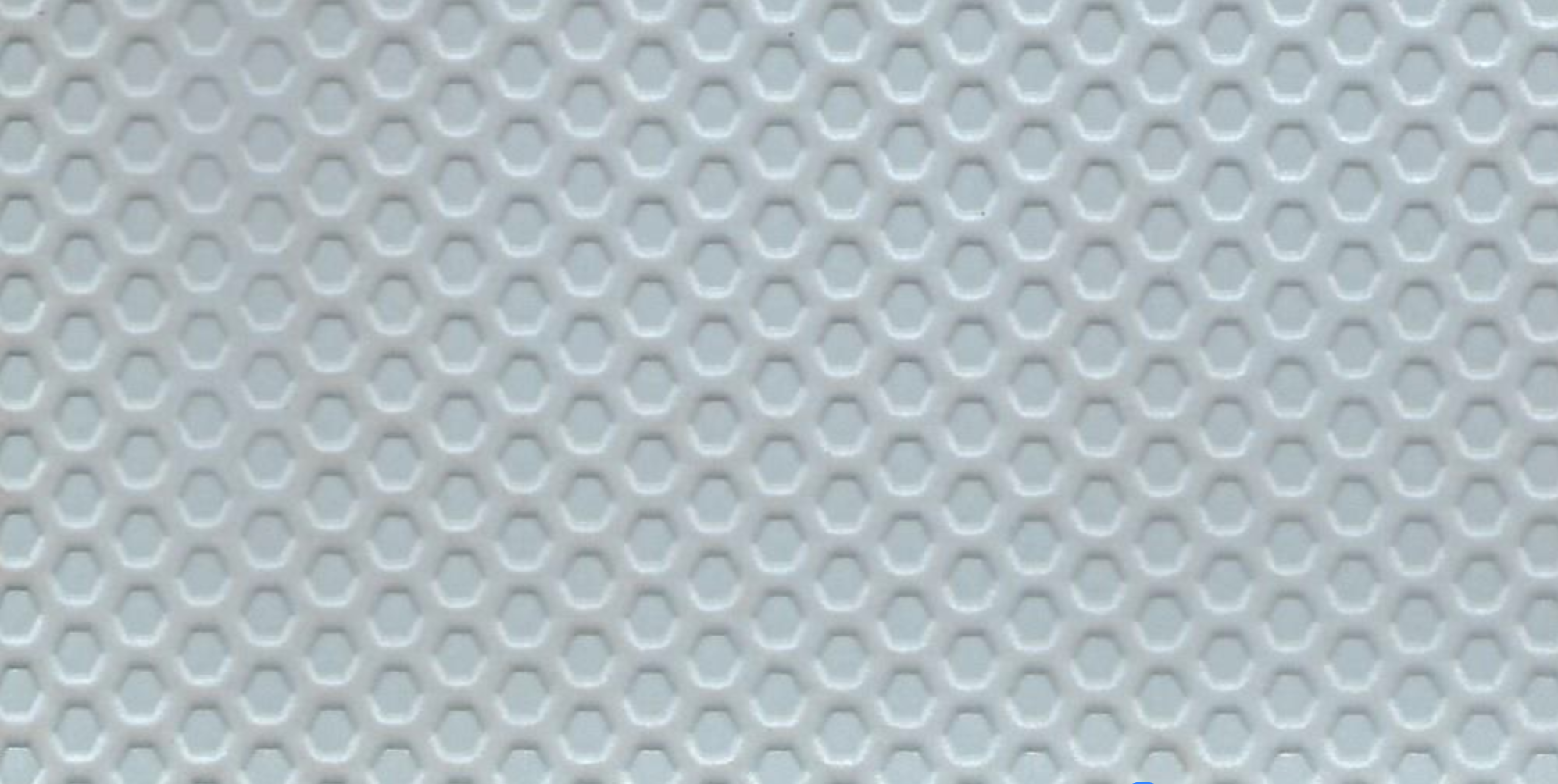

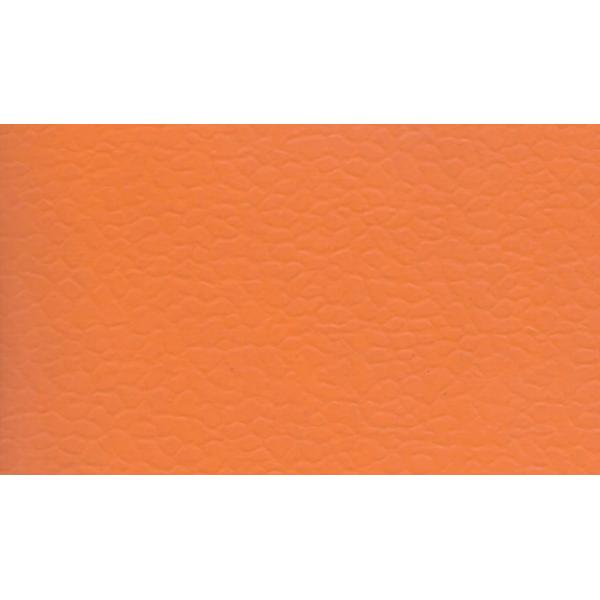

FRONT SIDE
BACK SIDE

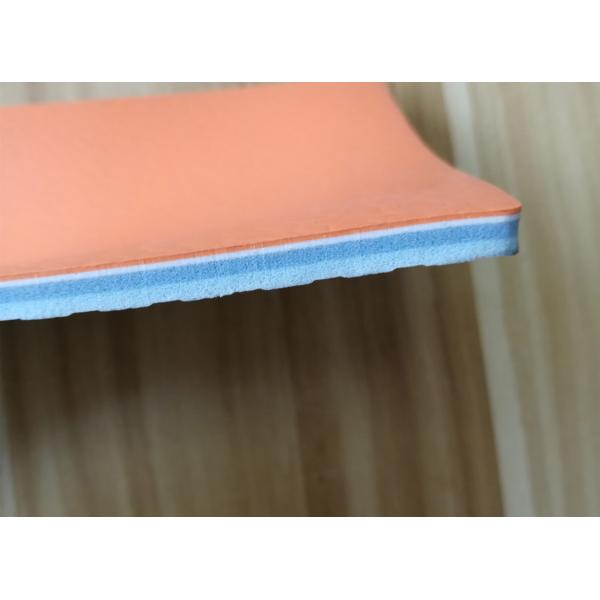

SIDE

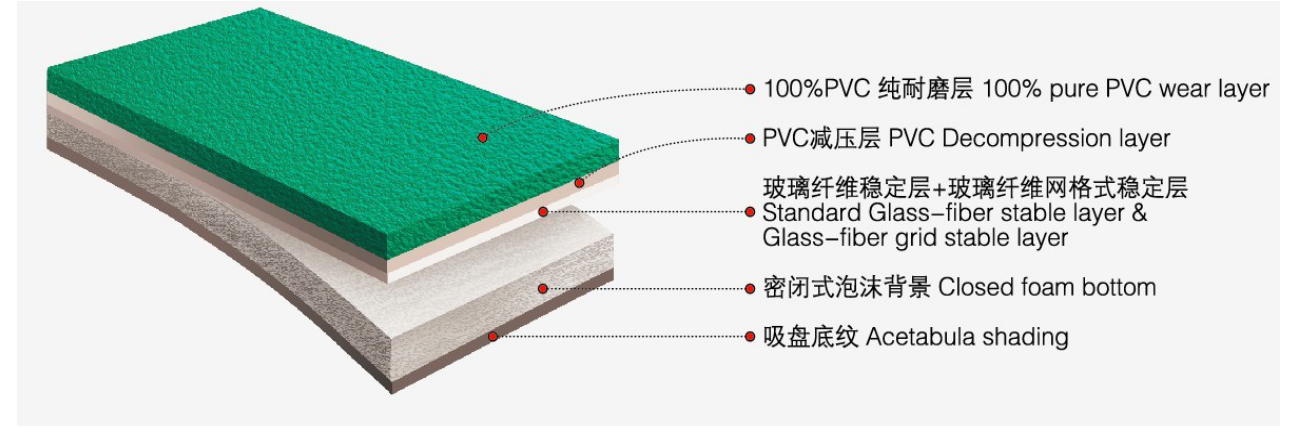

STUCTURE
Why choose us
1. Timely response, good understanding about customer's requirement, good after-sales service.
2. We can design the products of click system pvc vinyl floor based on customers' requirement, like patterns, colors, sizes and so on. As we may offer some different size, like longer size.
3. We can provide free samples, free new products samples into container, and we can make the special samples as clients requirement .
4. Our pvc vinyl floor is based on 100% virgin pvc material.
