Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl
Specifications
Brand Name :
FLAD
Place of Origin :
China
MOQ :
1 roll
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Cash
Supply Ability :
12000 sqm/day
Delivery Time :
Within 20 days
Packaging Details :
Hard tube or high quality carton,wooden carton
Composite :
Rubber Magnet
Shape :
in roll
Color :
Brown
Melting :
120 degree
Tolerance :
±1%
Category :
Homosexual rubber magnet
Description

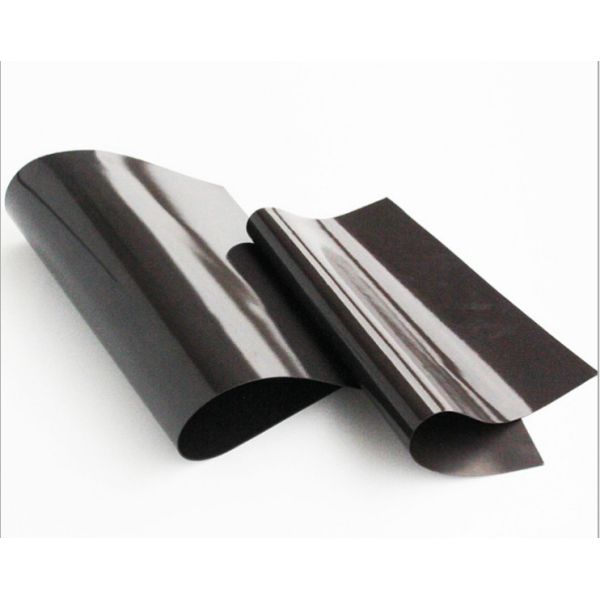

Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl in rolls

Magnetic sheet is made of ferrite magnet powder and synthetic rubber or plastic (CPE,NBR etc.) by Calendering process. Magnetic sheet can be bent, twisted, coiled, punched, and otherwise machined into almost any shape without loss of magnetic energy.

Sizes available

The standard sizes are materials with thickness(0.4mm, 0.5mm, 0.75mm, 1.5mm), width(620mm, 1000mm, 1270mm) and length(15m, 30.5m).
Special sizes could be easily produced upon request with limitations : Thickness: 0.15mm-8mm; Width: up to 1270mm wide. Length: up to 620m.

Surface Lamination

We are able to laminate various decorative material onto the non-magnetic face of magnetic sheet, White PVC vinyl, Colourful PVC vinyl, PP vinyl, Double-sided self adhensive, dry wipe finish, etc. The magnetic face would always be coated with UV coating.

Magnetizing

Magnetic sheet is always multiple pole magnetized with magnetic pitch 2.0mm, 2.5mm, 3.0mm, 5.0mm, 7.0mm etc. Magnetic sheet could also be magnetized with single pole on one surface and magnetized thru thickness.

Working temperature & Flexibility

The working temperature is recommended from -26 degree to 71 degree. At 20 degree, the materials above can be coiled to a 12.7mm radius without cracking.

Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl

Detailed Images
Componet
Percent
CAS#
Barium Ferrite
90%
12047-11-9
CPE
10%
63231-66-3
Apperance&Physical State
Brown-Black sheet or roll
ODOR
NA
Specific Gravity/Bulk Density
3.8-3.85 G/CC
Solubility(H2O)
Insoluble
PH
NA
Melt Point
120 degree

Ferrite Magnetic Sheet Rolls 120 Degree Melting Magnet Rubber Sheet Brown color Plain Flexible rubber magnetic vinyl

Packing:

1 roll/carton or 1 roll/hard tube, packed by pallet,depends on your requirements.
