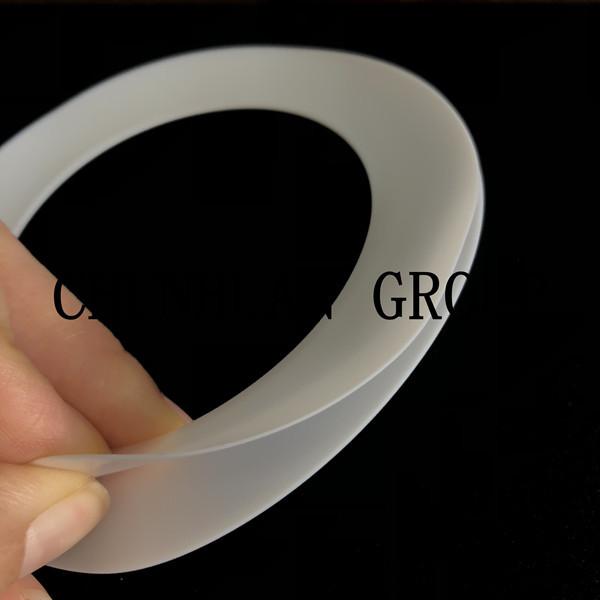

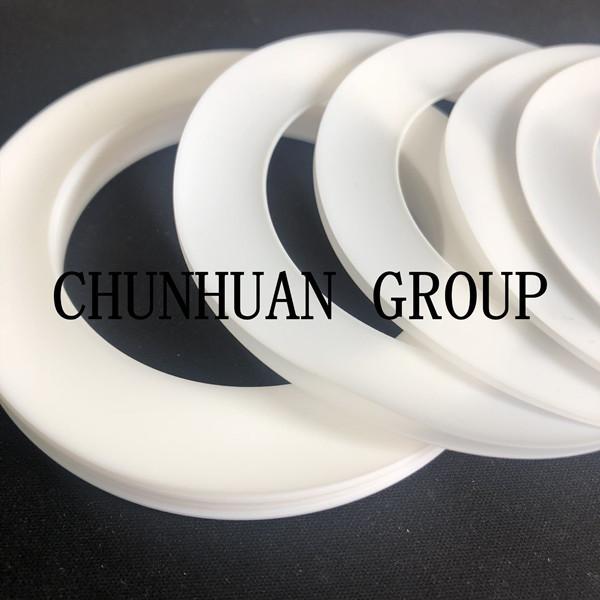

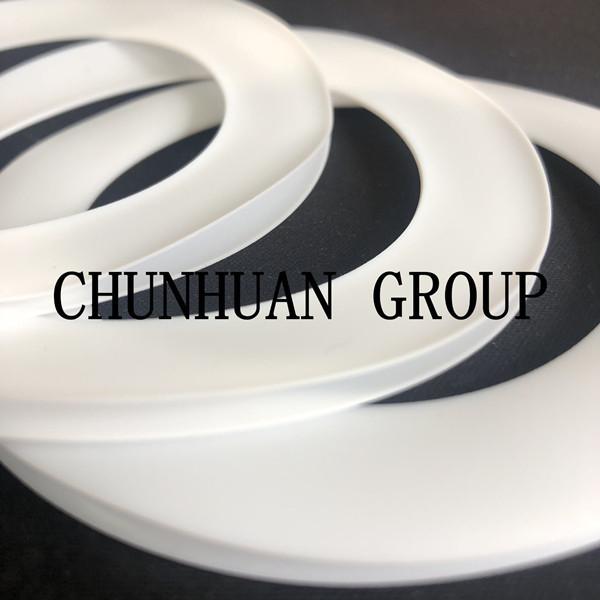

White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
Specifications
Brand Name :
CHUNHUAN
Model Number :
PTFE GASKET
Certification :
SGS,MSDS,FDA
Place of Origin :
CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000PCS/Month
Delivery Time :
7-15 work days
Packaging Details :
wooden boxes
Color :
White
Material :
PTFE
Function :
fixed sealing
PH :
0-14
Density :
2.0-2.3 g/cm3
Pressure :
21Mpa
Description

White Color Pure PTFE Envelope Gasket Manufacture Size According To Drawings For Processing

Description

PTFE gasket, also named gasket, is made by cutting PTFE stick, pipe and sheet into flat shape. V shape gasket or valve annulus. It is anti-corrosive, anti-aging and not electric. PTFE PH value is among 0-14. it can have good mechanical strength at -100℃-100℃. The pressure is 10Mpa. Note: when the temperature is lower than -185℃. PTFE gasket will get brickle. Pure PTFE gasket is a kind of clean product. It won’t pollute any substance it touches. It is widely used in the industry of foodstuff and medicine.

Flat gasket is a conducting medium with good high quality. Our plastic insulators are made of different sizes of plastics materials, such as PTFE, PEEK, POM, ULTEM and so on. According to these materials’ special features, such as excellent corrosion resistance, aging resistance, high temperature resistance performance, waterproof, moisture permeability, which can be fully used for all kinds of machinery. The insulators we made will be high quality, good appearance and good property, which have been applied to the market of USA, Europe and so on.

Technical Parameter

Pressure of PTFE gasket <=10Mpa
Temperature of PTFE gasket <=250℃
Density of PTFE gasket 2.1-2.3 g/cm3
PH 0-14
Pressure of filled PTFE gasket 16Mpa
Pressure of filled PTFE gasket <=260℃
Temperature of expanded PTFE -268℃-315℃
Pressure of expanded PTFE 21Mpa
Application Hot-water heating and sanitary and bathing products, electric appliances, hardware and machinery. Vehicle and motorcycle. Used at dynamic sealing and static. Sealing location for particle crystal medium,etc.
Feature

Ptfe gasket

Seal between upper cylinder cap and block; resistant to almost all of the hydraulic medium, solvents, and various chemical mediators, has a very low coefficient of friction, no creeping phenomenon. Ozone resistance, weather resistance is excellent, with the flame retardant.
Temperature About -60℃-+260℃
Other color Light grey, grey, white, yellow, green, black, etc
White Anti Aging Shape Solid Pure PTFE Envelope Gasket
OUR SERVICE

Your inquiry will be replied within 2 hours during working time, within 24hours when rest time.
Our working time is 7:30am-17:30pm, Monday to Saturday.
General samples time can be arranged within 2-5days.
Orders will be produced exactly as request and approved samples.
When mass production, we send photos to show the production line and confirm the estimate time again.
At the end of mass production, photos and samples will send to you for approval. You can arrange the inspection.
Before shipment, our QC will have inspection to make sure the quality
We always try best to ensure every order to delivery in time.
PAYMENT TERMS

1 . T/T, Cash, L/C
2 . 30% deposit, 70% balance before shipment.
3 . Lead time: 15 days after received deposit for 2 tons.
4 . Delivery way: By sea, By air, By EMS, DHL,UPS,TNT, FedEX.
PACKING & DELIVERY
For sample:By EMS, DHL,UPS, TNT,FedEx
Around 5-7 working days to arrive
FOR BULK ORDER

1 . Qty of 2 tons within 15 days
2 . Via sea
3 . Delivery time: we finish production in 15 days for 2 tons
4 . For 20 GP, may need around 30 days
