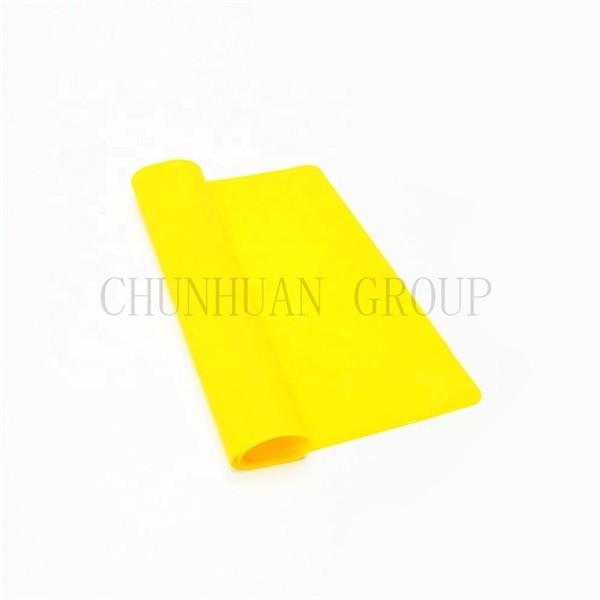

Customized Color HIgh Density Temperature Silicone Sponge Rubber Sheet In Rolls With 2000*500*0.1 Mm For Solar Laminator

We use raw material (with the latest technology to add negative ions, silver ions, etc.) to produce the silica gel plate, colorful, smooth surface, high transparency, excellent resistance to high and low temperature performance, non-toxic environment protection, odorless, high strength, resistance tear, corrosion resistance, acid and alkali resistance, wear resistance, pressure resistance, aging resistance and excellent insulation and so on.

Basic Product parameters

• Pressure resistance: 4.0KV-10KV
• Operating temperature: -60-220 degrees
• Specific gravity: 1.3
• Hardness :40-90 degrees
• Extensibility: 300%-600%
• Tear strength: 22Kn/m

Product specification

Specification I: thickness: 0.1mm thick to 1.0mm thick

Width: 100mm wide to 1000mm wide

Length: coil (infinite length, conventional 50m roll)

Specification II: Thickness :1mm thick to 20mm thick

Width: 1000mm wide to 3000mm wide

Length: coil(infinite length, conventional 100KG roll)

Colour

Conventional colors are translucent, highly transparent, and black. Other colors can be customized according to customers’ drawings such as (red, orange, yellow, green, blue, purple). Our company has colored card books, and there are more than 700 colors for customers to choose.

Application

Punching gaskets,

Gaskets

Seals

Sealing performance

For pharmaceutical,

Industrial and food industries

Suitable for environments with high pressure requirements

Silicone Rubber Sheet for Solar Laminator

Uses qualified raw material of a world-famous brand for the high tear-resistant silicon rubber sheet and carries out technical cooperation with professional companies domestically and abroad. CHUNHUAN adopts advanced techniques and special equipment, large drum-type vulcanization unit, in the development of the product, which has a high level of stability, a good evenness and reliability. Specially used for solar energy laminator, etc.

According to specific working conditions and lose-efficacy forms of solar laminated sheet, CHUNHUAN develops the second generation silicone rubber sheet. Based on the former silicone rubber sheet, this one brings in the green environment reinforcing material which is acid resistant, chemical resistant, high temperature resistant, so the tensile strength, tearing strength and dimensional stability of the silicone rubber sheet are greatly improved. Then the lifetime is longer. The advantage of the silicone rubber sheet is that even if it is used to the extreme, the solar module will not be damaged.

The third generation silicone rubber sheet has great improvement on the chemical resistant and aging resistant property, especially on the high resistance to the EVA volatile matter, then the lifetime can be longer.

The fourth products’ working surface uses fluorine silicone rubber, it has excellent acid-resistance, the corrosion caused by EVA volatile is almost zero, it has better temperature resistance, can meet the needs of high temperature curing process.
