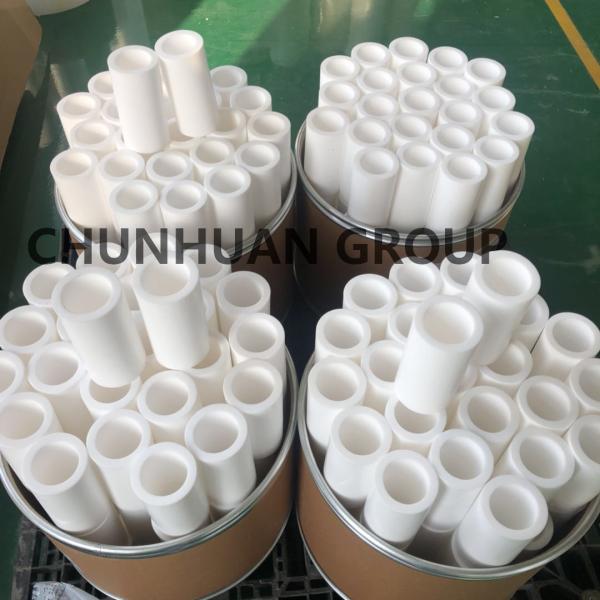

FACTORY SUPPLY 100% VIRGIN PTFE WHITE MOLDED TUBE/PIPE FOR MACHINERY OD 60MM 70MM 80MM 90MM 100MM

Description

Tetrafluoroethylene (PTFE) pipe is a high-quality plunger extrusion pipe, which is closely combined with plastic pipe by special processing technology. It can bear positive pressure of 1.6 Mpa and negative pressure of 77 Kpa. It can be used normally in - 60 ~ + 260 ~C, and has reliable and excellent corrosion resistance. Transport of highly corrosive gas and liquid at high temperature, which can not be replaced by other pipelines. It is widely used in machinery, chemical industry, aviation, electrical and electronic industry, national defense industry, advanced science and technology, medical and health, electrical insulation and other fields.

Features

PTFE extruded pipe and molded pipe using polytetrafluroethylene suspension polymerization process. In the known plastic polytetrafluroethylene has good chemical resistance and dielectric properties.

PTFE (polytetrafluoroethylene push tube) characteristics: high temperature resistance, low temperature resistance, corrosion resistance, weather resistance, high lubrication, no adhesion, no toxicity.

1. The temperature range is very wide (from -200 degrees Celsius to +260 degrees Celsius)
2. Basically resistant to all chemicals except some fluorides and alkaline liquids.
3. Excellent mechanical properties including aging resistance, especially for bending and oscillating applications.
4. Outstanding flame retardancy (according to ASTM-D635 and D470 test procedures, it is classified as a flame retardant material in air.
5. Excellent insulation properties (regardless of frequency and temperature).
6. The water absorption rate is extremely low, and it has a series of unique properties such as self-lubricating and non-stickiness.

Application

Tansmission of corrosive liquid or gases such as hydraulic fluid and fuel in the aerospace industry; high pressure air,fuel and hydraulic transmission in the automotive industry;delivery of chlorine,steam,acid-base organic compounds,etc. In the chemical industry; purity fluid delivery. As PTFE has the best plastic in the high temperature,low corrosion, anti-aging, high insulation and non-stick advantages.

Advantage

♦ High temperature resistance
The working temperature is 250℃
♦ Low temperature resistance
Good mechanical toughness; even if the temperature drops to -196℃,it can also maintain a 5%
elongation.
♦ Corrosion resistance
For most chemicals and solvents, it shows inertia,strong acid and strong alkali, water and various organic solvents.
♦ Climate resistance
The best aging life among all plastic.
♦ High lubrication
The lowest coefficient of friction in solid materials.
♦ Non adhesion
The smallest surface tension in the solid material,which does not adhere to any substance.
♦ No toxicity
It has a physiological inertia and has no adverse reaction in the long term imolantation of artificial blood vessels and organs.
♦ Electrical insulation
It can resist 1500 volts of high voltage electricity.

Specification

Main Properties

Our service

1. Your inquiry will be replied within 2 hours during working time, within 24hours when rest time.
2. Our working time is 7:30am-17:30pm, Monday to Saturday.
3. General samples time can be arranged within 2-5days.
4. Orders will be produced exactly as request and approved samples.
5. When mass production, we send photos to show the production line and confirm the estimate time again.
6. At the end of mass production, photos and samples will send to you for approval. You can arrange the inspection.
7. Before shipment, our QC will have inspection to make sure the quality
8. We always try best to ensure every order to delivery in time.

Payment Terms

1. T/T, Cash, L/C
2. 30% deposit, 70% balance before shipment.
3. Lead time: 15 days after received deposit for 2 tons.
4. Delivery way: By sea, By air, By EMS, DHL,UPS,TNT, FedEX.

Packing&Delivery

For sample:By EMS, DHL,UPS, TNT,FedEx
Around 5-7 working days to arrive
For Bulk order:

1. Qty of 2 tons within 15 days
2. Via sea
3. Delivery time: we finish production in 15 days for 2 tons
4. For 20 GP, may need around 30 days
