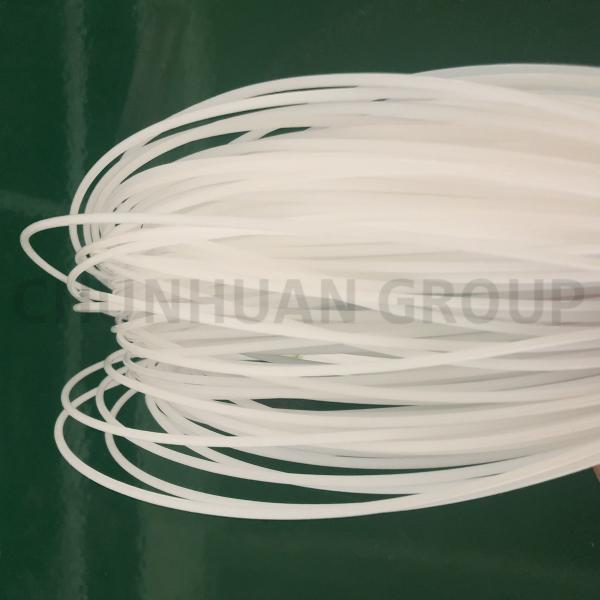

Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Corrosion Resist Welding Roll 100% Virgin PTFE Rod
Specifications
Brand Name :
Chunhuan
Model Number :
PTFE Rod
Certification :
ISO 9001, MSDS,Reach,FDA
Place of Origin :
jiangsu,china
MOQ :
20 kg
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
150 T/M
Delivery Time :
5-8 days
Packaging Details :
Wooden Box
Color :
White
Type :
Roll
Marerial :
100% virgin PTFE
Density :
2.1-2.3 g/cm3
Tensile strength :
140-350 kgf/cm2
Elongation :
200-400 %
Description

Virgin PTFE Pressed Welding Roll Rod Dia 1-9mm Length Customized Color White With FDA Reach Rosh

We provides a wide range of molded & ram extruded PTFE rods in virgin PTFE and filled PTFE compounds. All materials are sourced from famous brands like Dupont, Daikin, 3M, 3F,Dongyue,etc. It has excellent chemical corrosion resistance and dielectrical property, no aging and bonding.

Size range and main technical index:
Pressed PTFE rods Diameter from1-5mm and length according to clients' requirements
Extruded PTFE rods Diameter from 5-160mm and length could be customized
Molded PTFE rod Diameter form 20-1160mm and max length 350mm
Apparent density 2.10--2.30 g/cm3
Tensile strength ≥14.0 MPa
Elongation at break ≥140%

Properties of PTFE rods:
Wide temperature working range(-180℃-+260℃)
Lowest coefficient of friction of all known solid materials
Excellent dielectrical property
Chemical and corrosion resistance
Self lubrication

Materials:

Material Name Compound % Main Properties Color
PTFE / Very low coefficient of friction and excellent chemical resistance. FDA approved White
Glass Filled PTFE Up to 40% Improved ware resistance, compression strength, creep resistance, chemical resistance. Good performance in oxidising environment, good creep resistance. White cream
Carbon Filled PTFE Up to 35% Improved electrical and termal conductivity, resistance to load, low coefficient of friction in dry, water, steam applications, chemical resistance. Superior ware resistance increase and low friction properties. Black
Graphite Filled PTFE Up to 25% Improve wear resistance, decrease friction and increase sliding properties against soft metals- chemical inertness. Improve the temperature resistance in some way. Black
Bronze Filled PTFE Up to 60% Improved compression strength, wear resistant, high thermal conductivity, resistance to abrasion. Reduced chemical resistance. Dark Brown
Molybdenum disulphide(MoS2 Up to 5% Increased PTFE properties of hardness and wear resistance. Increased sliding properties and decrease friction. Blue azure
PEEK Filled PTFE Up to 20% Increased thermal resistance, sliding properties, surface hardness. Superior properties on dynamic applications. Light Brown
PEEK / Excellent mechanical properties including strength, rigidity, impact resistance, low wear rate and low coefficient of friction, retained over a wide range of service temperatures Light Brown
PEEK compound / Improves technical and chemical properties like deformation under load, wear resistance, thermal expansion and electrical conductivity. /
PVDF / Resistant to UV radiation and offers high mechanical strength and abrasion resistance. Beige
PCTFE / Better mechanical properties than other fluoropolymers, low permeability Translucent
PFA / Better mechanical properties than other fluoropolymers, low permeability Natural

Corrosion Resist Welding Roll 100% Virgin PTFE Rod

Item Pure PTFE 60% Bronze 20% Glass Fiber 15% Glass Fiber 5% Graphite 20% Carbon Fiber Unit
Density 2.18 3.9 2.26 2.22 2.01 G/M3
Tensile Strength 276 127 175 158 189 MPa
Elongation At Break 238 101 207 205 92 %
ROCKWELL Hardness 3.2 33.8 6.4 11.3 32.1 -
Friction Coefficient 0.13 0.18-0.2 0.20-0.24 0.15-0.17 0.16-0.18 -
Bending Strength 207 280 210 225 320 °C

Corrosion Resist Welding Roll 100% Virgin PTFE Rod

Our Service
1) Your Inquiry Will Be Replied Within 2 Hours During Working Time,Within 24hours When Rest Time.
2) Our Working Time Is 7.30 AM --17:30 PM,Monday To Saturday.
3) General Samples Time Can Be Arranged Within 2--5days.
4) Orders Will Be Produced Exactly As Request And Approved Samples.
5) When Mass Production,We Send Photos To Show The Production Line.And Confirm The Estimate Time Again.
6) At The End Of Mass Production,Photos And Samples Will Send To You For Approval.You Can Arrange The Inspection.
7) Before Shipment,Our QC Will Have Inspection To Make Sure The Quality.
8) We Always Try Best To Ensure Every Order To Delivery In Time.

Payment Terms
1) T/T,Cash,L/C.
2) 30% Deposit,70% Balance Before Shipment.
3) Lead Time: 15 Days After Received Deposited For 2tons.
4) Delivery Way: By Sea,By Air, By EMS,DHL,UPS,TNT,FedEx.

Packing & Delivery
For Sample: By EMS,DHL,UPS,TNT,FedEx
Around 5--7 Working Days To Arrive

For Bulk Order:
1. Qty Of 2tons,Within 15 Days.
2. Via Sea
3. Delivery Time:we Will Finish Production In 15days For 2tons.
4. For 20 GP,May Nee Around 30days.
