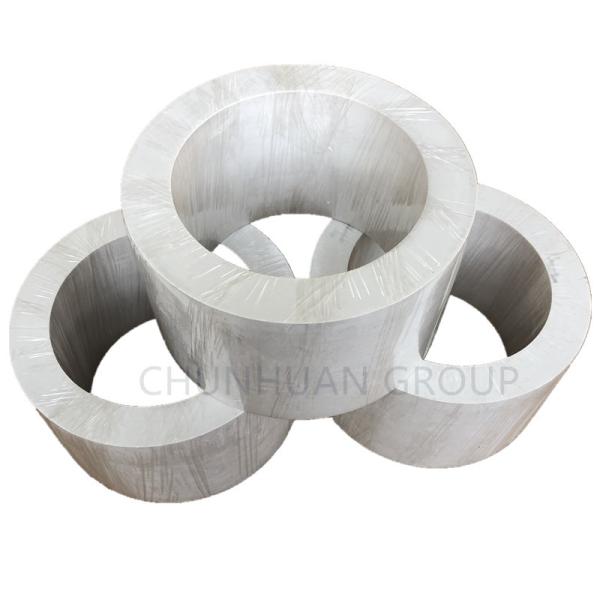

300mm 15 Glass Filled PTFE Tube
300mm 15 Glass Filled PTFE Tube
300mm 15 Glass Filled PTFE Tube
300mm 15 Glass Filled PTFE Tube
300mm 15 Glass Filled PTFE Tube
300mm 15 Glass Filled PTFE Tube
Specifications
Brand Name :
CHUNHUAN
Model Number :
MOLDED
Certification :
SGS,ISO,FDA,RoHs
Place of Origin :
CHINA
MOQ :
50KG
Price :
Negotiable
Payment Terms :
L/C, T/T,Cash
Supply Ability :
10tons per month
Delivery Time :
7 ~20days
Packaging Details :
Wooden Box
Material :
PTFE + Pigment
Color :
Red
Working Temperture :
-180℃ - 280℃
Length :
100mm to 300mm
Description

15% Glass Fiber PTFE Molded Tube Virgin PTFE Material Molded Type Length In 100mm ~ 300mm

DESCRIPTION

PTFE Has A Coefficient Of Friction That Is One Of The Lowest Of Any Material ,Between 0.05 And 0.09 PTFE Also Is Extremely Corrosion Resistant ,Especially To Acids ,Harsh Inorganic And Organic Chemicals ,It Is Attacked Only By The Alkaline Metals In The Elementary State ,By Chlorine Trifluoride And By Elementary Fluorine At High Temperature And Pressures .In Addition ,PTFE Can Withstand A Wide Of Temperatures ,From 260℃ Down To -180℃.

The Extraordinary Characteristics Of PTFE Makes It The Ideal Choice In A Wide Range Of Applications ,Such As Chemicals ,Petrochemicals ,Fertilizers ,Agrochemicals ,Dyestuff ,Textile ,Paper ,Clothing ,Building ,Food Processing Plants And Valves Industries .

300mm 15 Glass Filled PTFE Tube

MAIN PROPERTIES

Item Pure PTFE 60% Bronze 20% Glass Fiber 15% Glass Fiber 5% Graphite 20% Carbon Fiber Unit
Density 2.18 3.9 2.26 2.22 2.01 G/M3
Tensil Strength 276 127 175 158 189 MPa
Elongation At Break 238 101 207 205 92 %
ROCKWELL Hardness 3.2 33.8 6.4 11.3 32.1 -
Friction Coefficient 0.13 0.18-0.2 0.2-0.24 0.15-0.17 0.16-0.18 -
Bending Strength 207 280 210 225 320 ℃

300mm 15 Glass Filled PTFE Tube

SPECIFICATIONS AND SIZE

TYPES Specification
outside diameter(mm) wall thickness(mm) length(mm)
Pressed Tube 1~25 0.1~2.5 produced under requirements
Extruded Tube 25~200 1.5~8 produced under requirements
Molded Tube 25~200 5~500

100~300

300mm 15 Glass Filled PTFE Tube

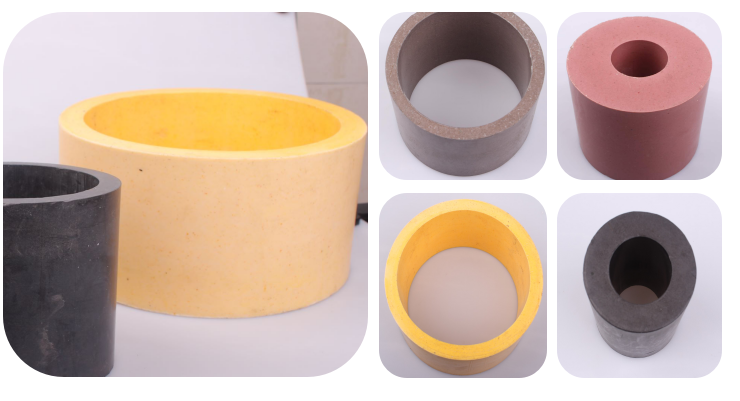

PTFE Filled Grades Offer A Range Of Materials That Expand On The Properties Of PTFE

PTFE Filled With Other Materials:

Filled Materials

Common Filled Ratio

(Quantity %)

 Main Performance
Bronze

40,60

5,10,15

Increase Hardness And Wear Resistance;

Increase Dimensional Stability And Compressive Strength;

Not Suitable For Corrosive Or Electrical Applications
Carbon 5,10,15

Increases Compressive Strength,Hardness,Wear And Load Properties

Good Chemical Resistance; Improves Electrical Properties
Graphite 10,15,25

Improves The Deformation Under Load;Reduces Initial Wear;

Improves Thermal And Electrical Conductivity
Glass Fiber 10,15,25

Increases Compressive Strength,Rigidity And Wear.

Reduces Creep And Cold Flow;Improve Dimensional Stability
Carbon Fiber 5,10,15

Increases Compressive Strength,Hardness,Wear,And Load Properties.

Reduces Creep And Cold Flow

POB

(Polyphenyl Ester)

 5,10,15

Improve The Lubricaiton Performance;Enhance The Mechanical Strength;

Increase Using Temperature
BaSO4 5,10,15

Increase Compressive Strength, Hardness And Wear Resistance

Reduces Creep
SiO2 5,10,15 Increases Hardness And Wear Resistance; Improve Dimensional Stability
Glass Beads 5,10,15

Reduces Creep And Cold Flow; Lower Density

Increases Hardness And Wear Resistance;
Others Materials PEEK (Polyetheretherketone),PI(Polyimide),MoS2 Are Also Ok

Remarks

 Some Materials Have Similar Enhancement Effect, But Degrees Of Enhancement Are Different.And They Have Different Prices. More Details Please Contact Us

APPLICATIONS

* Transmission of corrosive liquids or gases such as hydraulic fluid and fuel in the aerospace industry;

* High pressure air, fuel and hydraulic transmission in the automotive industry;

* Delivery of chlorine, steam, acid-base organic compounds, etc. in the chemical industry;

* Purity fluid delivery. As PTFE has the best plastic in the high temperature, low corrosion, anti-aging, high insulation and non-stick advantages.

RFQ

Q: Are you trading company or manufacturer ?

A: We are Manufacturer.

Q: How long is your delivery time ?

A: Generally it is 3-5 days if the goods are in stock or it is 15-20 days if the goods are not in stock,it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?

A: Yes,we could offer the sample for free charge .

Q:What is your terms of payment ?

A:Payment < = 1000USD,100% in advance,Payment >=1000USD,30% T/T in advance,balance before shipping,against the B/L.
