Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube
Specifications
Brand Name :
CHUNHUAN
Model Number :
Extruded
Certification :
FDA,SGS,ISO,RoHs
Place of Origin :
CHINA
MOQ :
10KG
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10tons per month
Delivery Time :
10 ~ 20 days
Packaging Details :
Wooden Box
Material :
100% virgin PTFE
Color :
White
Density :
2.12 ~ 2.3
Working temperature :
-180℃ ~ +280℃
Elongation at break :
200% ~ 350%
Tensile strength :
25 ~ 45Mpa
Description

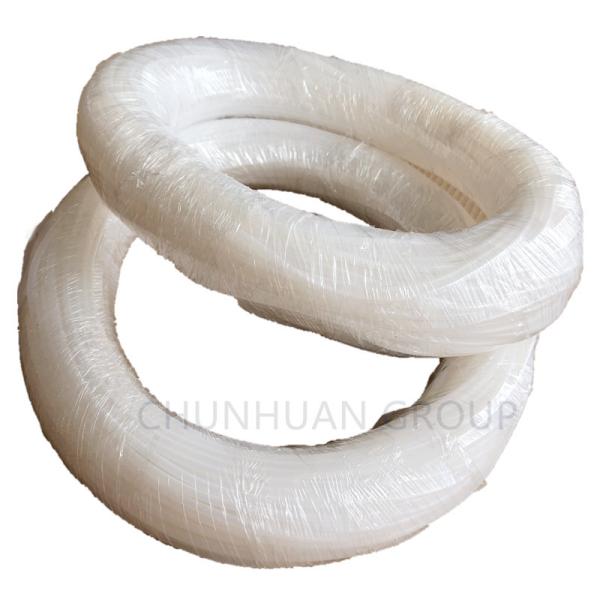

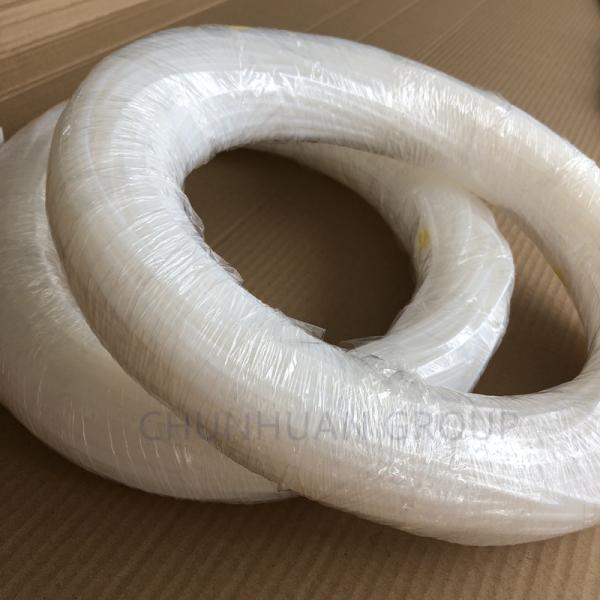

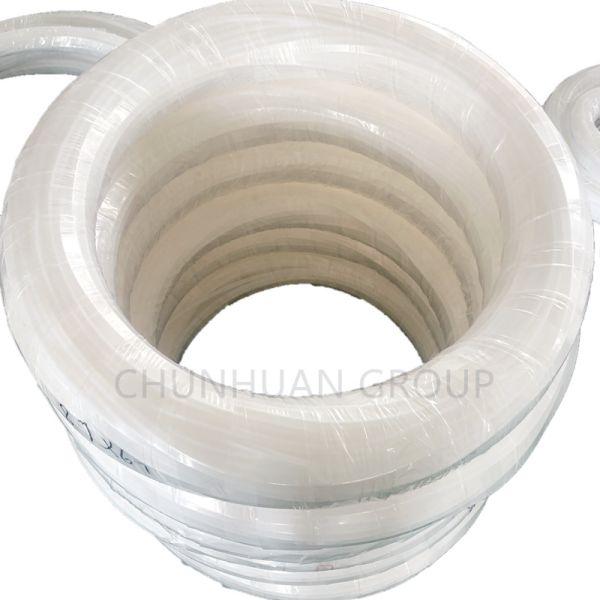

100% Pure White Color PTFE Tube Push Pressure Pipe Length In Rolls

DESCRIPTION

PTFE has the best chemical resistance of all known plastic.It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180°c~+260°c.

Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube

ADVANTAGE

  • PTFE Pipe has a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly rods.
  • PTFE Pipe has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.

SPECIFICATION

Diameter(mm) Dia. Tolerance(mm) Length(mm) Length Tolerance(mm)
4~9 +0.48~0.58 1000/2000

+10.0
10~50 +1.1~1.6 1000/2000
55~200 +2.0~5.0 1000/2000

4ft,or as request

Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube

MAIN PROPERTIES OF PTFE ROD

Item ASTM Data Unit
Mechanical Properties
Density D792 2.1~ 2.2 g/m3
Tensile strength D638 ≥25 about 25 ~ 45 MPa
Elongation at break D638 ≥150 about 200~ 350 %
Compression strength D695 24 MPa
Shore D Hardness D636 50-60 -
Friction coefficient on steel 0.01 -

APPLICATION

♦ Corrosion resistance: widely used in all chemical containers and parts which contacted with corrosive media, such as tanks, reactors, equipment lining, valves, pumps, fittings, filter materials, separation materials and pipe for corrosive fluids.
♦ Abrasion resistance: can be used as a self lubricating bearing, piston rings, seal rings, gaskets, valve seats, sliders and rails etc..
♦ Insulation materials: mainly used in the manufacture of various products with high temperature resistance, high-frequency resistance, electrical insulation and arc resistance, such as high-frequency cables, moisture-resistant cables, capacitor coils, insulating cover for wire, etc..
♦ Medical materials: such as artificial blood vessels, heart, esophagus, peritoneum, heart devices, a variety of intubation tubes and catheters.
♦ Non-stick materials: can be used for non-stick coating such as non-stick pan and non-stick roller for food processor.

Corrosion Resistance Push Pressure Pure 2M 6mm PTFE Tube

INFORMATION ABOUT OUR FACTORY

Our Service
1) Your inquiry will be replied within 2 hours during working time,Within 24hours when rest time.
2) Our working time is 7.30 AM --17:30 PM,Monday to Saturday.
3) General samples time can be arranged within 2--5days.
4) Orders will be produced exactly as request and approved samples.
5) When mass production,we send photos to show the production line.And confirm the estimate time again.
6) At the end of mass production,photos and samples will send to you for approval.You can arrange the inspection.
7) Before shipment,our QC will have inspection to make sure the quality.
8) We always try best to ensure every order to delivery in time.

Payment Terms
1) T/T,Cash,L/C.
2) 30% deposit,70% balance before shipment.
3) Lead time: 15 days after received deposited for 2tons.
4) Delivery way: By sea,By air, By EMS,DHL,UPS,TNT,FedEx.
