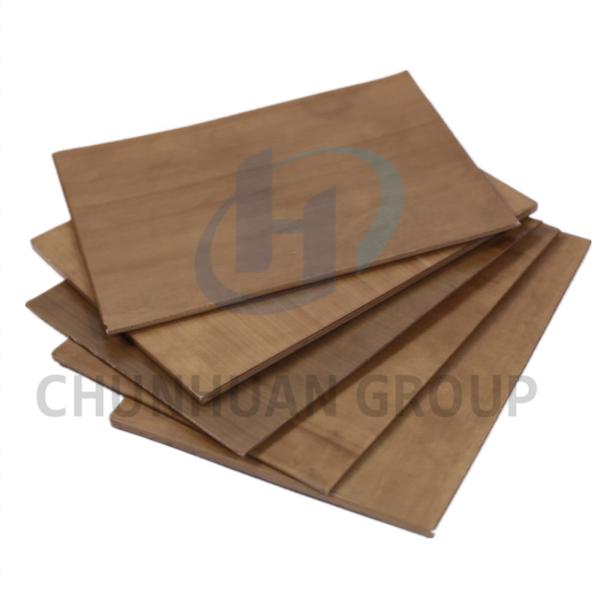

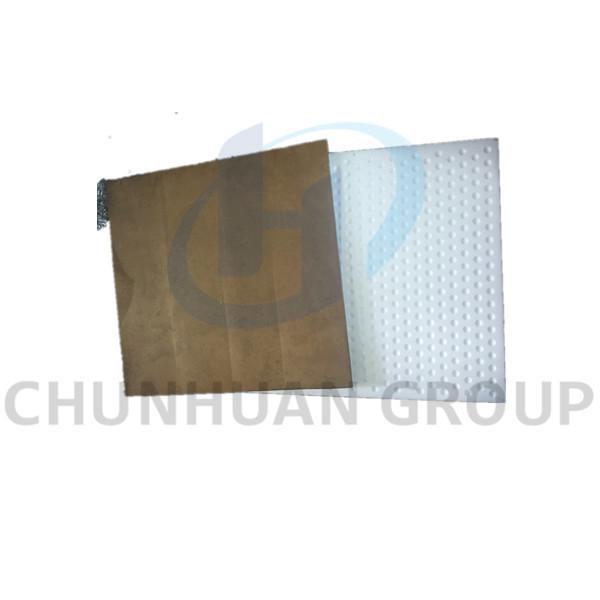

Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel
Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel
Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel
Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel
Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel
Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel
Specifications
Brand Name :
Chunhuan
Model Number :
PTFE Skived Sheet
Certification :
ISO 9001, MSDS,Reach,FDA
Place of Origin :
jiangsu,china
MOQ :
20 kg
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150 T/M
Delivery Time :
5-8 days
Packaging Details :
Wooden Box
Color :
Black Brown
Apparent density :
2.10~2.30 g/m3
Tensile strength(min) :
15.0 Mpa
Crack elongation(min) :
150 %
Dielectric strength(min) :
10 Kv/mm
Hardness :
50-55 Shore D
Description

Black Brown PTFE Gasket Sheet Skived Rolls One-Side Etched for stainless Steel

DESCRIPTION

PTFE has the best chemical resistance of all known plastic.It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180°c~+260°c.

Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel

MAIN PROPERTIES

Properties Unit Result
Apparent density g/m3 2.10~2.30
Tensile strength(min) Mpa 15.0
Crack elongation(min) % 150
Dielectric strength(min) Kv/mm 10

PTFE Has A Coefficient Of Friction That Is One Of The Lowest Of Any Material ,Between 0.05 And 0.09 PTFE Also Is Extremely Corrosion Resistant ,Especially To Acids ,Harsh Inorganic And Organic Chemicals ,It Is Attacked Only By The Alkaline Metals In The Elementary State ,By Chlorine Trifluoride And By Elementary Fluorine At High Temperature And Pressures .In Addition ,PTFE Can Withstand A Wide Of Temperatures ,From 260℃ Down To -180℃.

The Extraordinary Characteristics Of PTFE Makes It The Ideal Choice In A Wide Range Of Applications ,Such As Chemicals ,Petrochemicals ,Fertilizers ,Agrochemicals ,Dyestuff ,Textile ,Paper ,Clothing ,Building ,Food Processing Plants And Valves Industries .

SIZES AND SPECIFICATIONS

PTFE Molded Sheet,Skived Sheet/Tape
Type Thickness(mm) Width(mm) Length(mm)
PTFE Molded Sheet 3 ~ 100 150 ~ 2000 Max 2000
PTFE Skived Sheet 0.2 ~ 6.5 300 ~ 2700 ≥ 200
PTFE Skived Tape 0.1 ~ 4.0 100 ~ 500 ≥ 1000
PTFE Skived Film

Oriented

 0.015,0.030,0.020,0.035,0.025,0.04 30 - 90 ≥ 500
Semi-Oriented 0.03,0.035,0.05-0.1 60 - 90 ≥ 1000

Non-Oriented

 0.02,0.025,0.03,0.035,0.04-0.1,0.05,0.15,0.08,0.2,0.1,0.3 60-90 100 - 1000 ≥ 500

Packaging & Shipping

->Packaging: plastic outside,wooden box transportation

->shipping: by shipp,air,and anyother transportation just as your requirements.

Brown Skived 6.5mm Etched PTFE Sheet For Stainless Steel

APPLICATION

PTFE Has Outstanding Excellent Comprehensive Performance, High Temperature Resistance, Corrosion Resistance, Non-Stick, Self-Lubrication, Excellent Dielectric Properties, And Very Low Coefficient Of Friction.

Used As Engineering Plastics, It Can Be Made Into PTFE Tubes, Rods, Belts, Plates, Films, Etc.

Generally Used In Corrosion-Resistant Pipes, Containers, Pumps, Valves, Radar, High-Frequency Communication Equipment, Radio Equipment, Etc. With High Performance Requirements.

Add Any Filler That Can Withstand The Sintering Temperature Of PTFE In PTFE, Its Mechanical Properties Can Be Greatly Improved. At The Same Time, Maintain Other Excellent Performance Of PTFE. Filled Varieties Include Glass Fiber, Metal, Metalized Oxide, Graphite, Molybdenum Disulfide, Carbon Fiber, Polyimide, EKONOL, Etc., Wear Resistance, Limit PV Value Can Be Increased By 1000 Times. Painted On The Surface Of Bullet Bullets Can Increase Bullet Penetration And Enable Bullets To Penetrate Bulletproof Vests.
