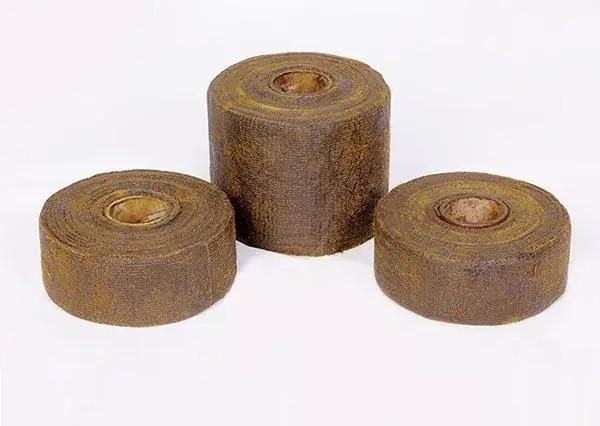

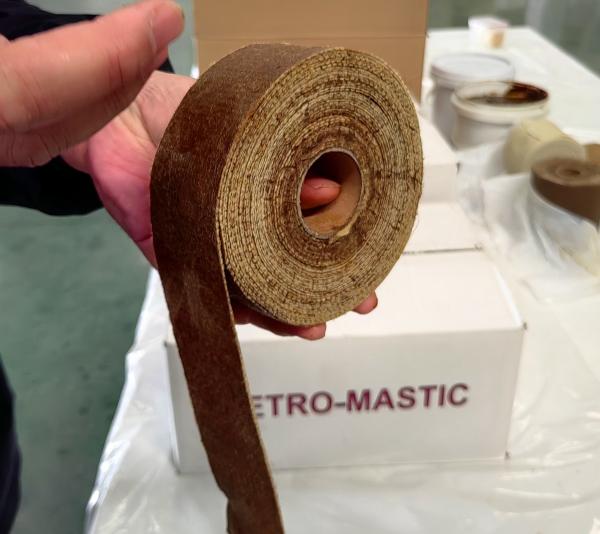

Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Petrolatum Tape For Pipeline and flange Corrosion Protection
Specifications
Brand Name :
Petrol
Model Number :
CN Petrol
Certification :
ISO
Place of Origin :
CHINA
MOQ :
20 Cases
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 rolls/Month
Delivery Time :
5-8 work days
Packaging Details :
40cmX30cmX32cm
Color :
Brown
Roll Length :
10M
Roll width :
50mm,100mm,150mm,200mm,300mm
Thickness :
1.1-1.2mm
Weight :
1.5Kg per Sqm
Quality :
Same to Dens
Function :
Corrosion protection
Application :
Flanges, fittings, pipelines,elbows
Second Name :
Petrol tape, petro tape,corrosion protection tape
Description

Petrolatum tape

Description

The petrol tape is designed for corrosion protection of waste water pipeline ,buried or exposed or marine pipes rods, cables, valves and metal fittings, tanks. it consist of petrolatum tape,petrolatum mastic,petrolatum primer, outer wrap protection tape.

Petrol tape is Non-woven, stitch-bonded, synthetic fabric carrier, fully saturated and coated with a neutral petrolatum compound blended with inert fillers and corrosion inhibitors.

Petrolatum Tape For Pipeline and flange Corrosion Protection

Uses

For long-life corrosion protection, sealing and waterproofing of atmospheric buried and submerged metal surfaces.

The high degree of conformability allows for application over irregular surface profiles including gas utility, sewer, potable water, mining,

and wastewater applications.

Characteristics

Petro-Tape is stable in composition and plasticity

over a wide temperature range.

Non-hardening and non- cracking, which accommodates vibrations and extreme movement of the substrate.

Petro-Tape is non-toxic, non-flammable with high dielectric strength and highly resistant to mineral acids, alkalis and salts.

Application

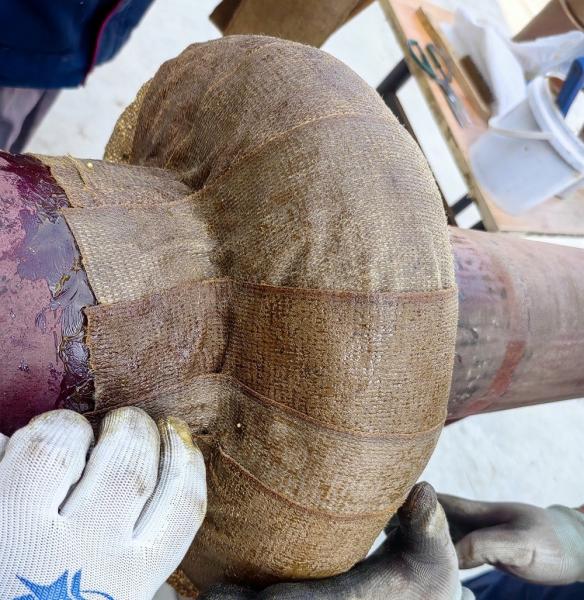

Spirally wrapped using a minimum 55% overlap for all applications,

For vertical applications the tape shall begin at the bottom and proceed up – providing a“weatherboard” overlap.

May apply longitudinally (i.e., “cigarette wrapped”) when space is too restricted or confined to apply in the preferred spiral manner, with the overlap on the topside of the pipe –providing a “weatherboard” effect.At the completion of each roll, smooth the overlaps by hand. Maintain a 100mm overlap when overlapping one roll with the end of a new roll.

Petrolatum Tape For Pipeline and flange Corrosion Protection

Properties

Particulars Properties Technical Standard
Thickness ≥1.10 mm avg. ASTM D1000
Weight ≥ 1.44 kg/m2 avg. ASTM D1000

Tensile strength

Elongation at break

Dielectric rigidity (55% overlap)

≥ 200 N/ 50 mm

10% avg.

ASTM G8

Resistance to Acids (10%Hcl)

Resistance Alkalies (10%NaOH)

Resistance Salts (20% Nacl)

Resistance to Cathodic Disbonding

Application temperature

Service temperature

Droping Point

≥ 16 kV

Excellent

Excellent

Excellent

＜ 500 mm2

-5 to +55 oC

-50 to +75 oC

85 oC

ANSI/AWWA

C 209-00;

Length/Roll

Width/Roll

 10 meters

50/75/100/150/200/300 mm

 SY/T 0414-2007



Package

Petrolatum Tape For Pipeline and flange Corrosion Protection

Tape Width ㎡/Roll Rolls/Carton Petrolatum Tape For Pipeline and flange Corrosion Protection
50mm 0.50 36
75mm 0.75 24
100mm 1.0 18
150mm 1.5 12
200mm 2.0 8
300mm 3.0 6
