Specifications
Brand Name :
Visench
Model Number :
10kva
Place of Origin :
China
Supply Ability :
10000pcs/month
Delivery Time :
30days
Packaging Details :
Carton
MOQ :
1
Output Voltage :
380VAC
Altitude :
≤ 1000m
Protection :
Overload, Short Circuit, Overvoltage, Undervoltage
Conversion Time :
0ms
Output Frequency :
50/ 60Hz
Efficiency :
≥ 95%
Power Range :
1-500kVA
Battery Type :
Sealed Lead Acid
Output Power Factor :
0.8
Safety Standard :
IEC/EN 62040-1,IEC/EN 62040-2 IEC 61000
Parallel :
Maximum parallel machine: 3 units
Battery Voltage :
384V
Humidity :
20-90%
Online Mode :
96%
Description

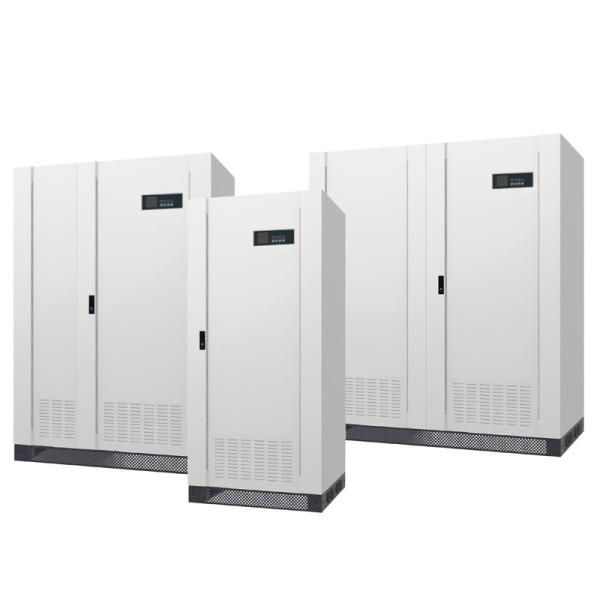

Low Frequency Online UPS

TD Series (three-three phase)

PRODUCT FEATURES

1. Advanced DSP digital control technology

2. LCD+LED display

3. With output isolated transformer

4. DC cold start function

5. Frequency self-adaptive system

6. Special short-circuit protection design

7. Intelligent mobile monitoring cards are supported to monitor UPS data in real time through mobile apps.

8.Equipped with three output isolation transformers, to meet the three-phase 100% unbalanced output.

PARAMETER
Model TD33 10KVA TD33 15KVA TD33 20KVA TD33 30KVA TD33 40KVA TD33 60KVA TD33 80KVA TD33 100KVA TD33 120KVA TD33 160KVA TD33 200KVA TD33 250KVA TD33 300KVA TD33 400KVA TD33 500KVA
Rated Power 　 10kVA/ 8kW 15kVA/ 12kW 20kVA/ 16kW 30kVA/ 24kW 40kVA/ 32kW 60kVA/ 48kW 80kVA/ 64kW 100kVA/ 80kW 120kVA/ 96kW 160kVA/ 128kW 200kVA/ 160kW 250kVA/ 200kW 300kVA/ 240kW 400kVA/ 320kW 500kVA/ 400kW
Main Input Rated Voltage and Range 380Vac ±25%
Input Form 3P4W+G
Frequency Range 40Hz-70Hz (settable)
Bypass Input Rated Voltage and Range 380Vac ±25%
Input Form 3P4W+G
Output Rated Voltage 380Vac ±25% (line voltage)
Output Form 3P4W+G
Static Voltage Accuracy ±2%
Dynamic Voltage Transient ≤9%
Distortion of output voltage waveform ≤3%(liner),≤8%(non-liner) ≤3%(liner),≤5%(non-liner)
Power Factor 0.8
Output Frequency 50Hz/60Hz
Output Overload 105%±5%≤ Load: Overload warning;
105%±5%＜Load≤125%±5%: Convert to bypass output after 2 mins; 125%±5%＜Load≤150%±5%: Convert to bypass output after 30s;
Load＞150%±5%: Convert to bypass output after 500ms.		 110%≥30mins; 125%≥10mins; 150%≥1min
Battery Rated Voltage 192Vdc 384Vdc 480Vdc 768Vdc
Dimension (LxWxH) mm 830x455x1055 830x515x1135 800x700x1600 880x850x1650 870x1300x1850 1420x908x1650 1630x1026x1902 2100x1100x2000
Weight 218kg 208kg 208kg 243kg 309kg 506.5kg 521.5kg 800kg 800kg 1099kg 1243kg 1200kg 1240kg 2600kg 3660kg
