Two In One System ADAS DMS For Vehicle And Driver State Montioring
Two In One System ADAS DMS For Vehicle And Driver State Montioring
Two In One System ADAS DMS For Vehicle And Driver State Montioring
Two In One System ADAS DMS For Vehicle And Driver State Montioring
Specifications
Brand Name :
Yuxunion
Model Number :
YX1208A
Certification :
CE/FCC/ROHS
Place of Origin :
China,Guangdong
MOQ :
10sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sets/day
Delivery Time :
10-20days
Packaging Details :
standard packaging
Feature :
LDW FCW PCW DMS
Resolution :
1080P
Driver Facing Camera :
Infrared camera, available both in day time and at night time
Included :
Driver facing camera*1
Description

DSMS ADAS two-in-one system for vehicle and driver state montioring

ADAS Ayuda Function


FCW (Front Collision Warning)

1. Forward collision warning 2. Forward vehicle start warning 3. Forward vehicle slide warning
(Start speed>15km/h ,when the front vehicle is detected entering the danger range triggering the alarm; a total of four levels of sensitivity, 1 (professional) minimum sensitivity, 4 highest sensitivity; different sensitivity alarm experience is different, the user sets it himself, it is recommended to use the default 2 "ordinary".)

LDW(Lane Departure Warning)

1. Lane departure warning(support both full line and dotted line)
(Start speed>50km/h,when the vehicle speed is higher than 50KMH, the alarm is triggered when the vehicle changes lanes illegally, presses the lane line or the fatigue running bias line; a total of three sensitivity can be adjusted, and the “middle” pole is recommended, and the “low” level can be used for the cart.)

PCW(Pedestrian collision warning)

1. Pedestrian collision warning 2. Cyclist collision warning 3. Motorcycle driver collision warning
(The alarm is triggered when a pedestrian in front of the main lane is detected; when the FCW sensitivity is set to level 1, the PCW will only alarm when it is at a dangerous distance.)
FD(Face Detection)


Product Description

sistema aviso de collision YX1208A

ADAS Ayuda Conduccion IDW Specification

Model: YX1208A
OS: Android
CPU: Qualcomm 801, quad-core 2.3GHz
GPU: Adreno 330
RAM: 2G
ROM: 16G
SIM Card Slot Micro-SIM card
Mobile Networks 4G FDD-LTE/ 3G WCDMA/ 2G GSM
WiFi Hotspot 2.4GHz IEEE, 802.11 b/g/n
I/O 1 RS232, 4 digital output
Forward Facing Camera: Professional image sensor
Resolution: 1080P

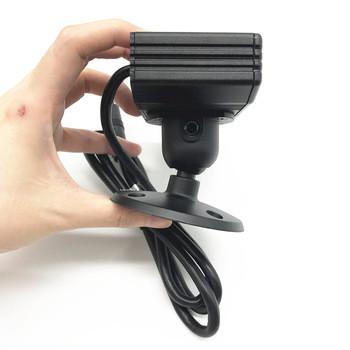

Driver Facing Camera: Infrared camera, available both in day time and at night time
Video Output 1080P
Packing List

ADAS device*1
Forward facing camera*1
Forward facing camera base*1
Forward facing camera sticker*1
Driver facing camera*1
Driver facing camera sticker*1
External GPS antenna*1
Connecting wire*1


Two In One System ADAS DMS For Vehicle And Driver State Montioring

Mobile Phone APP

Two In One System ADAS DMS For Vehicle And Driver State Montioring
We have mobile phone APP(support Andriod system,support 2G GSM and 3G WCDMA),APP named“Roadeye"

Installation

YX1208A ADAS System Installation Easy
Two In One System ADAS DMS For Vehicle And Driver State Montioring
