Hidden ADAS DMS Driver Fatigue Alarm System Support Micro SIM Card
Hidden ADAS DMS Driver Fatigue Alarm System Support Micro SIM Card
Hidden ADAS DMS Driver Fatigue Alarm System Support Micro SIM Card
Hidden ADAS DMS Driver Fatigue Alarm System Support Micro SIM Card
Specifications
Brand Name :
Yuxunion
Model Number :
YX1208A
Certification :
CE/FCC/ROHS
Place of Origin :
China,Guangdong
MOQ :
10sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sets/day
Delivery Time :
10-20days
Packaging Details :
standard packaging
Model :
YX1208A
Name :
ADAS+DMS
Feature :
LDW FCW PCW DMS
OS :
Android
SIM Card Slot :
Micro-SIM card
Forward Facing Camera :
Professional image sensor
Description

Driving assist system First generation ADAS device merger driver fatigue alarm system

Shenzhen YUXUNION Electronics Technology Co,.Ltd is committed to providing the same industry leading fleeting management solution from China to customers in Asia,So far, we have successfully implemented solutions for customers in Thailand, Lao, Cambodia, Vietnam, Singapore, Myanmar, Malaysia, Indonesia,Pakistan, Turkey,Iran and Saudi Arabia,Our team is capable of providing video connection support where needed and we can work with you to determine the best approach to meet your requirements.
YUXUNION ADAS System:ADAS solution for fleet safety is an Industry-wide Innovation. It adopts dual-camera design, one for forward collision avoidance and another for driver fatigue monitor. Based on artificial vision technology, this solution can enhance the fleet safety for real and provide totally different driving experience.


Product Description

sistema aviso de collision YX1208A

ADAS Ayuda Conduccion IDW Specification

Model: YX1208A
OS: Android
CPU: Qualcomm 801, quad-core 2.3GHz
GPU: Adreno 330
RAM: 2G
ROM: 16G
SIM Card Slot Micro-SIM card
Mobile Networks 4G FDD-LTE/ 3G WCDMA/ 2G GSM
WiFi Hotspot 2.4GHz IEEE, 802.11 b/g/n
I/O 1 RS232, 4 digital output
Forward Facing Camera: Professional image sensor
Resolution: 1080P
Driver Facing Camera: Infrared camera, available both in day time and at night time
Video Output 1080P

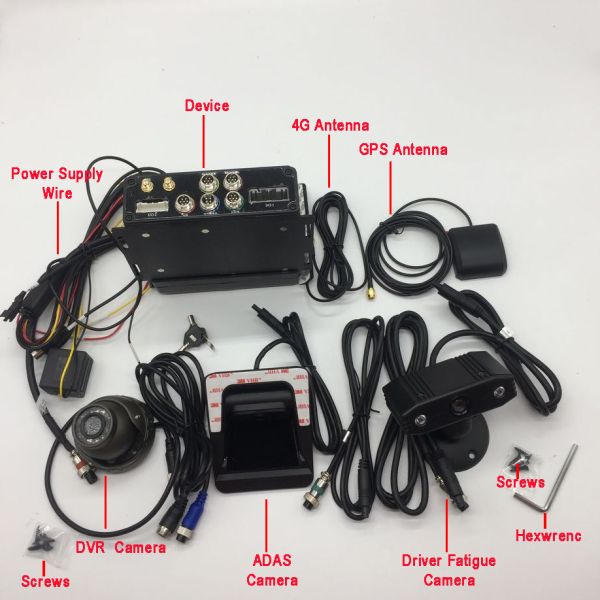

Packing List

ADAS device*1
Forward facing camera*1
Forward facing camera base*1
Forward facing camera sticker*1
Driver facing camera*1
Driver facing camera sticker*1
External GPS antenna*1
Connecting wire*1


Hidden ADAS DMS Driver Fatigue Alarm System Support Micro SIM Card

ADAS Ayuda Function
FCW (Front Collision Warning)

1. Forward collision warning 2. Forward vehicle start warning 3. Forward vehicle slide warning
(Start speed>15km/h ,when the front vehicle is detected entering the danger range triggering the alarm; a total of four levels of sensitivity, 1 (professional) minimum sensitivity, 4 highest sensitivity; different sensitivity alarm experience is different, the user sets it himself, it is recommended to use the default 2 "ordinary".)
LDW(Lane Departure Warning)

1. Lane departure warning(support both full line and dotted line)
(Start speed>50km/h,when the vehicle speed is higher than 50KMH, the alarm is triggered when the vehicle changes lanes illegally, presses the lane line or the fatigue running bias line; a total of three sensitivity can be adjusted, and the “middle” pole is recommended, and the “low” level can be used for the cart.)
PCW(Pedestrian collision warning)

1. Pedestrian collision warning 2. Cyclist collision warning 3. Motorcycle driver collision warning
(The alarm is triggered when a pedestrian in front of the main lane is detected; when the FCW sensitivity is set to level 1, the PCW will only alarm when it is at a dangerous distance.)
FD(Face Detection)

Mobile Phone APP

Hidden ADAS DMS Driver Fatigue Alarm System Support Micro SIM Card
We have mobile phone APP(support Andriod system,support 2G GSM and 3G WCDMA),APP named“Roadeye
