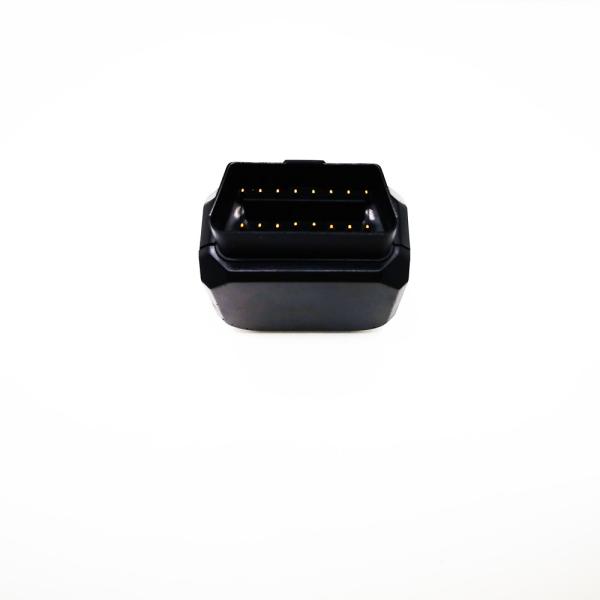

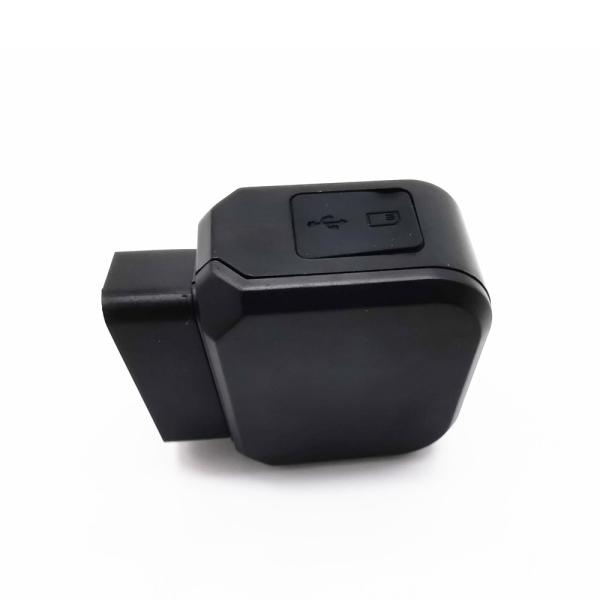

Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery
Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery
Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery
Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery
Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery
Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery
Specifications
Brand Name :
Yuxunion
Model Number :
YX-M401
Certification :
CE/FCC/ROHS
Place of Origin :
China,Guangdong
MOQ :
10sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000sets/day
Delivery Time :
10-20days
Packaging Details :
standard packaging
Model :
YM-401
Name :
4G WIFI OBDII GPS Tracker
Feature :
GPS Location,Fuel & Mileage Reading,Driver Behavior Analysis
Positioning Accuracy :
<10m
GPS Frequency Range :
1575.42MHZ
Average Current :
130mA@12V
Description

GPS tracking system network 4G/3G/2G OBD2 Driver monitoring in realtime inbuilt standby battery

Shenzhen Yuxunion Electronics Technology Co., Ltd is an auto safety products and telematics solutions since 2008, the product includes industrial grade GPS Tracker (3 years warranty and 9 years using time), Night Vision Camera(200 meters view distance and anti-fog function), Streaming Video Rearview Mirror(real-time driving image and anti-rain), high quality and superior customer service is still our culture, we trust that there will be a good long cooperation with your company in the near future.

Product Description

OBD GPS Vehicle Tracking Systems

Dimension 70*55*25cm
Working Voltage 9-36V DC
Average Current 130mA@12V
Sleeping Current 3mA@12V
Working Temperature -30℃∼+70℃
Storage Temperature -40℃∼+85℃
Positioning Accuracy <10m
GPS Frequency Range 1575.42MHZ
Frequency Range Including

FDD LTE: B1/B3

TDD LTE: B38/B39/B40/B41

TD-SCDMA: B34/B39

WCDMA: B1

CDMA2000 1x/EVDO: BC0

GSM: 900/1800MHz
WIFI Frequency Range 2400-2485M
OBD Support OBD II / EOBD
4G Antenna Built-in
GPS Antenna Built-in
WIFI Antenna Built-in

OBD GPS Car Tracker and Theft Prevention Specification

Driver Monitoring Obd Gps Car Tracker Realtime Built - In Standby Battery

OBD GPS Tracker Device Functions

Communication management function Letter of agreement The data information interacts with the platform using the TCP protocol. The IP address, port number, and APN are directly set to the terminal through the platform, and password protection is provided.
GPS Location Positioning data Including latitude and longitude, time, satellite number, speed, direction, ACC status, battery voltage, OBD speed, also includes network base station LAC and CellID information, operator code, the terminal automatically determines the trajectory route and realizes intelligent reporting of GPS points.
Reminder alarm function Alarm Ignition reminder
Flameout reminder
Vehicle low voltage alarm
Idle speed alarm
Water temperature alarm
Speed alarm
Collision alarm
Trailer alarm
Fatigue driving reminder
Device insertion alarm
Long positioning time alarm
Driving behavior

1. Driving behavior

2. Driving behavior event

1. Including driving cycle start terminal time, driving cycle total mileage, average speed, maximum speed, over speed duration, over speed times, idle duration, rapid acceleration, rapid deceleration, sharp turn information.

2. During the running of the vehicle, sudden acceleration, sudden deceleration, and sharp turn events are generated, and the incident is reported separately.
OBD data function Read and clear vehicle failure The key data of the vehicle is reported every 30S. The number of specific data items is slightly different according to the support data of the vehicle. The terminal identifies the vehicle fault information. When the vehicle fault status changes, it reports to the platform. When the fault is found, the vehicle sends a command to clear the vehicle fault.
Remote control management function Remote setting The platform remotely sets terminal information, vehicle type, GPRS communication parameters, heartbeat parameters, GPS/CAN return parameters, clear vehicle faults, control restart, factory reset, clear blind zone data, various alarm parameters, and rapid acceleration and deceleration through the mobile network. Sharp turn parameters.
