Anti Sleep Vehicle Drowsy Driving Alert Driver Fatigue Warning System
Anti Sleep Vehicle Drowsy Driving Alert Driver Fatigue Warning System
Anti Sleep Vehicle Drowsy Driving Alert Driver Fatigue Warning System
Anti Sleep Vehicle Drowsy Driving Alert Driver Fatigue Warning System
Specifications
Front camera :
JXF22(1080P),MIPI,4 glass,F2.0,140°
Working voltage :
DC 5V
Button :
4 physical buttons, adaptive based on software features
Microphone :
1 output, -40db±3db
Description

Anti Sleep Drowsy Driving Alert Drowsy Sleepy Alarm Alert

Product Description

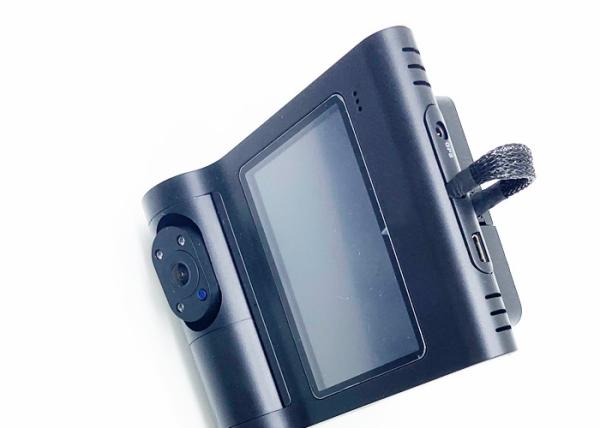

Driver Fatigue Monitor is a driver and vehicle safety product which can accurately predict and warn driver's sleeping during the driving to protect driver's life and avoid the damage to the vehicle. It can also connect with GPS system and send the fatigue information to the fleet management center for mangers to make better management strategies in accordance with the driver's performance and save more cost for the enterprises.

• SPECIFICATION

Type/specification YX08
Specification
CPU SGKS8611
Internal storage 2GBit
Screen 3’’ IPS MIPI 320*640
Front camera JXF22(1080P),MIPI,4 glass,F2.0,140°
Center camera USB Camera,640X480,4 glass,F2.0,120°
Coding/code rate H.264 8Mbps
G-sensor SC7A20
RTC/Battery Shared lithium battery, 290mA
WIFI IRRTL8189ES,2.4GWIFI, support AP

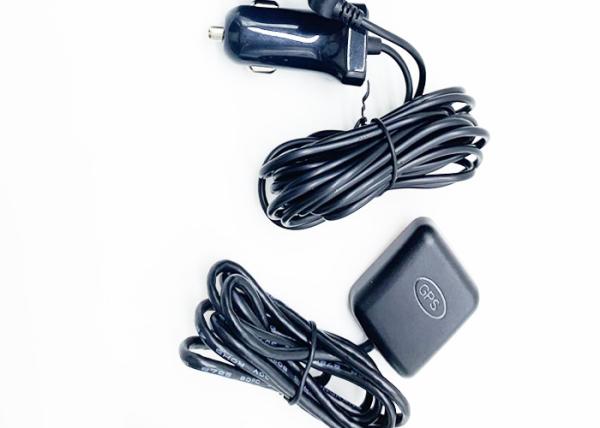

GPS External 2.5mm headphone jack, support AGPS, UART
AUDIO 1 output, 8ohm, 0.75W
Microphone 1 output, -40db±3db
Power interface Mini USB 2.0 Port
TF card Max support 128GB/C10
Button 4 physical buttons, adaptive based on software features
Working voltage DC 5V
Rated current <1.2A
Standby average current <3mA
Storage temperature -30℃ ~ +85℃

• FUNCTIONS

1) Fatigue driving warning

Through facial detection, the DSM detects driver's eyes are abnormally keeping closed and

then warning. The warnings are divide into different levels according to vehicle speed. The

warning way is voice warning.
2) Distraction warning

Through facial detection, the DSM detects driver's head turns around and then warning. The

warnings are divide into different levels according to vehicle speed. The warning way is voice

warning.
3) Smoking warning
Through gesture detection, the DSM detects driver is smoking and then warning. The warnings are divide into different levels according to vehicle speed. The warning way is voice warning.
4) Calling warning

Through gesture detection, the DSM detects driver's calling and then warning. The warnings

are divide into different levels according to vehicle speed. The warning way is voice warning.

5) Driver abnormal warning

The DSM detects the driver is abnormal (like can't detect facial features over 3 seconds) and

then warning. The warning way is voice warning.

6) HD 1080P Dash Cam

For vehicle front traffic conditions driving record .

7) 4G WI-FI & GPS positioning (optional)

Real-time positioning of GPS vehicles by 4G WI-FI, Manage preferred devices for the platform.

• FAQ

1. Whether to support sample purchase?

- Yes, We support single sample purchases.

2. Sample delivery time?

- 4-6 days after payment.

3. Would you support OEM & ODM service?

- Yes, definitely. We welcome OEM & ODM to join .

4. Whether the product has been certified?

- Yes,we have CE FCC IS9001:2008 certification.

5. Your market competitiveness?

- At present, our products are absolutely superior in terms of function, quality and price.
