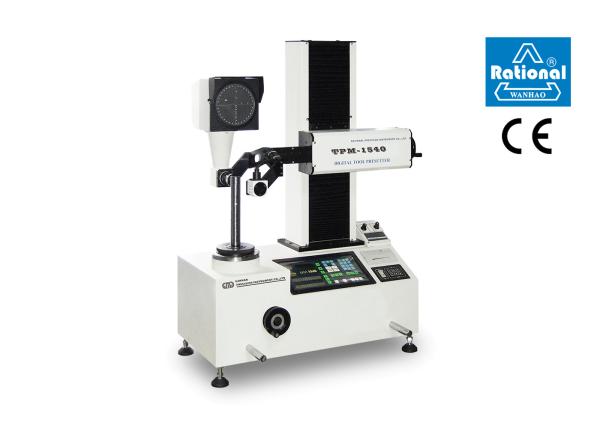

High Accuracy Video Tool Presetting Machine 50/60 HZ Easy To Operate
High Accuracy Video Tool Presetting Machine 50/60 HZ Easy To Operate
High Accuracy Video Tool Presetting Machine 50/60 HZ Easy To Operate
High Accuracy Video Tool Presetting Machine 50/60 HZ Easy To Operate
Specifications
Brand Name :
Rational
Model Number :
Projection presetters
Certification :
CE SGS ISO
Place of Origin :
Guangdong China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 set per month
Delivery Time :
After received down payment 5-15workdays
Packaging Details :
Vacuum packing & free fumigation wooden case
Illumination :
24V 20W halogen lamp
Net weight :
60kg
Power :
110V/220V AC, 50/60Hz
Resolution :
0.5μm
Lens magnification :
20x
Projection screen :
Ø120mm
Description

High Accuracy Video Tool Presetting Machine 50/60 HZ Easy To Operate

The tool presetter is designed in order to improve the efficiency of CNC machining center and design, mainly for the coordinate position of cutting edge measurement of CNC machine tools, machining center and flexible manufacturing unit for use; improve the satisfaction of CNC machine tools and machining center, high efficiency, high accuracy and repeatability. With the use of simple, advantages of high accuracy, the knife process does not need on a CNC machine tool, workpiece and avoid the damage of the machine tool is difficult and dangerous.

Product brief:


This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.

Specifications:

Measuring range Diameter (X-axis): Φ300㎜ Height(Z-axis): 30~400㎜
Linear scale resolution (X, Y-axis) 0.0005mm
Principal axis BT40
Diameter of screen Φ120㎜
Lens Magnification 20X
Illumination Adjustable halogen lamp (24V, 20W)
Power supply AC110/220V 50/60HZ
Dimension (L×W×H) 780×530×950(mm)
Net weight 90kg or so

Rational Precision Instrument Co., Ltd., was set up in Guangdong, China in 1995, and is now a professional company in precise measuring field. With the R&D force from both Taiwan and mainland China, Rational has been a successful high-tech company by dedicating to innovation and manufacturing for measuring systems. Rational has been highly focused on precise and high resolution measuring equipment and is a leading supplier of varieties of measuring systems or devices such as Digital Measuring Projectors, Video Measuring Systems and Linear Scales in China and Asia. With the state of the art technology, which integrates optics, machinery, electronics and software engineering, Rational has won outstanding reputation in precision measuring field. We have been awarded main titles of good reputation and honored enterprises in Guangdong province, China for many years and are ISO9001-2008 and CE certified.

·
