Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm
Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm
Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm
Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm
Specifications
Brand Name :
Sinowon
Model Number :
iMS-2010F
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15 sets per month
Delivery Time :
15 days
Packaging Details :
plywood
Hysterisis Error :
2um
Dimension(W*D*H) :
790x617x1000mm
X/Y-axis Travel :
200x100mm
Z-axis Travel :
200mm
X/Y-axis Accuracy :
≤3+L/200(um)
Measuring Software :
iMeasuring 2.2
Description

Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

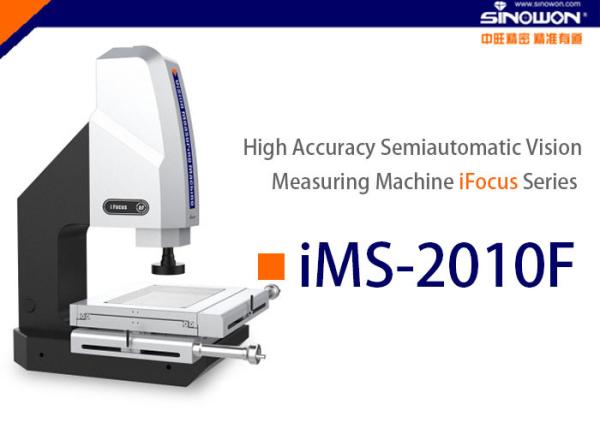

High Accuracy Semiautomatic Vision Measuring Machine iFocus Series,iMS-2010F

Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

  • 2D measuring,flatness
  • height difference and location degree
  • non-contact and contact measurement systems use video and touch probe inputs to perform high precision 2D and 3D measurements.

Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

  • Less errors: hysterisis error is within 2um; the accuracy is within 3+L/200um;clear image without distortion;
  • With programmable surface 4-ring 8-division LED Cold Illumination and contour LED parallel illumination and internal intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
  • Z-axis equipped with high accuracy linear guide and servo motor control system, realize auto focus measurement, and eliminate the human focus error, enhance measurement accuracy and stability;

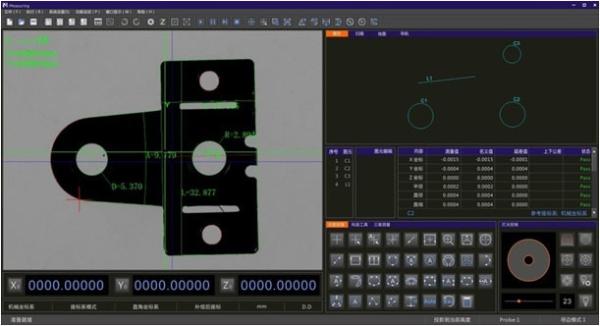

  • Powerful function iMeasuring2.2 Measuring Software, highly enhance the quality control;
  • Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mmVision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mmVision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

Vision 2D Measuring Machine Inspection System Lab Equipment 200 x 100mm

Name

High Accuracy Semiautomatic Vision Measuring Machine iFocus Series
Mode iMS-2010F
Code# 521-140F
Metal Table 408x308mm
Glass Table 306x198mm
X/Y-axis Travel 200x100mm
Z-axis Travel High-precision linear guide , working travel 200mm
X/Y/Z-axis Travel 0.0005mm
X/Y-axis Accuracy* ≤3+L/200(um)
Hysterisis Error 2um
Base and Pillar High Accuracy Jinan Qing Marble
Illumination System(Software Adjustment) Surface: Stepless Adjustable 4-ring 8-division LED Cold Illumination,every division can be adjust independently
Contour: LED Parallel Illumination
LED Laser Navigation Lights
CCD Camera High Resolution 700TV Color CCD Camera
Zoom lens** 6.5X High Resolution Detented Zoom Lens
Magnification:0.7X~4.5X；Video Magnification:26X~172X
Working Environment Temperature:20℃±2℃, change range < 2℃/hr
Humidity:30% ~80%RH
Vibration<0.002g,<15Hz
Measuring Software iMeasuring 2.2
Operation System Support XP,WIN7,WIN8.1,WIN 10, 32/64 operating system
Language English, Simplified Chinese, Traditional Chinese, other language
Dimension(W*D*H) 790x617x1000mm
Net Weight 175Kg

*L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

**Magnification is approximate value, it is related to the dimension of monitor and resolution.
Customers can choose 0.5X or 2X optional objective, and realize image magnification: 13X~86X or 52X~344X.
