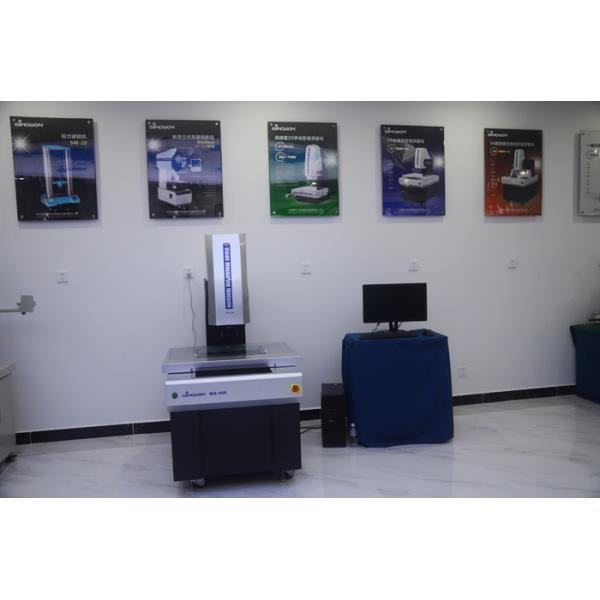

Auto Measurement Video Measuring System CNC Vision Series Gear
Auto Measurement Video Measuring System CNC Vision Series Gear
Specifications
Brand Name :
Sinowon
Model Number :
MVS-3020
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T in advance
Supply Ability :
100 sets per month
Delivery Time :
25 work days
Packaging Details :
plywood
Application :
Gear,Motor Parts,Electronic Parts
Software :
Auto Measuring Software
Lens :
Continue Detented Zoom Lens
Optical Magnification :
0.7X~4.5X
Linear Scale :
Imported 0.5um Linear Scale
Operation Mode :
Joystick Controller, Mouse Operation,Automatic Detection Program
Description


Auto Measurement Video Measuring System CNC-Vision Series


What is Vision Measuring Machine?
Optics, Mechanical & Electrical, Computer (software) image technology

Geometry dimension:
Point, line, circle, arc, distance, angle, etc.;

Form and position tolerance:
Straightness, Flatness, Roundness, Cylinder, Contour
Parallelism, Perpendicularity, Inclination, Coaxiality, Position;


Technical specification:

2.5D Model

MVS-3020

Code#

523-360

X/Y-axis Travel

300x200mm

Load Capacity

25Kg

Dimension

1200*780*1650mm

Weight

380Kg

Z-axis Travel

200mm

X/Y/Z 3-axis

Linear Scale

High Accuracy Linear Scale,Resolution:0.0005mm

Guidance Mode

Precision Linear Guide, Double-track Double Slider Guide

Operation Mode

Joystick Controller, Mouse Operation, Automatic Detection Program

Accuracy

X/Y-axis:≤3+L/200(um)

Z-axis:≤4+L/200(um)

Repeatability

±2um

Video System

High Definition 1/3"Color CCD Camera

6.5X Motorized Coaxial Zoom Lens

Optical Magnification:0.7X-4.5X；Video Magnification:22X~145X

Illumination

Contour

LED Parallel Cold Illumination

Surface

Adjustable 0~255 grades 5-ring 8-division Illumination

3D Measurement

Optional iMeasuring 4.2 3DMeasuring software and imported probe



Standard Delivery:

Product Name

Code#

Product Name

Code#

Fully-auto Measuring Software

IM 4.0

Continuous Detented Zoom Lens

421-161

Calibration Block

581-801

5R/8D LED Illumination

425-141

Motion Controller

526-111

Contour Parallel LED Surface Cold Illumination

425-131

Imported 0.5um Linear Scale

581-201

LED Coaxial Cold Illumination

/

Data Processor

564-301

1/3”Color Camera

484-123

CCD Image Navigation

581-331

Video Capture Card

527-131

Joystick

581-871

PC/Monitor

/

Certification

/

Operation Manual

/



Optional Accessories:

Product Name

Code#

Product Name

Code#

Imported MCP Touch Probe

581-721

Manual Coaxial Lens

421-121

Imported laser sensor

581-361

Motorized Coaxial Lens

/

3D Measuring Software

Im 4.2

2X Auxiliary Objective

423-050

Contact Calibration Block

/

0.5X Auxiliary Objective
