HiFi Desktop Bookshelf Speakers Pair - 200 Watt Power Active Book Shelf Speakers - Studio Monitor Computer Desk Home Stereo Speaker System
Brief Introduction of the active monitor speaker
This VM series monitors speakers from we Vistron Audio is newest designed.
It is a powerful near field studio monitor speaker with special fiber glass composite woofer which produces outstanding dynamic frequency responses.
Such series audio speakers have 2 items: VM5 with 5.25" woofer and VM8 with 8" woofer.
For this one VM5,which is designed for both project and professional studio.

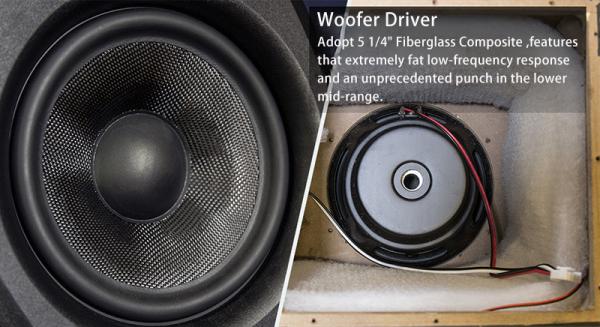

The speakers combines a 5.25" fiber glass composite woofer with a round near firing bass port and a 3/4" soft silk dome tweeter with 70 Watts output (30W HF,40W LF).
of CLass AB active amplifier to deliver a frequency response of 45 to 30K Hz with a maximum SPL of 108 dB.

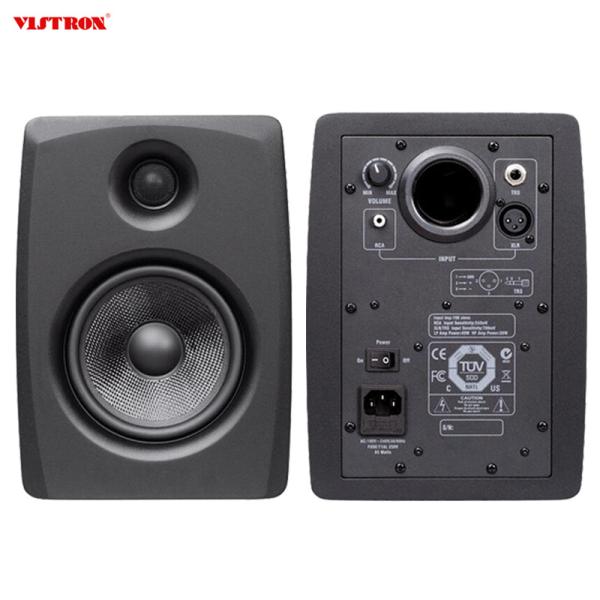

For I/O, the unit features unbalanced RCA, balanced 1/4" TRS, and balanced XLR connectors. LED indicator lights provide visual feedback for when the monitor is on (blue) or in standby mode (red). A rear panel volume knob allows you to adjust the output level.
Features of the powerful bookshelf monitor speaker
* 5.25" woofer and 3/4" tweeter with active amplifier
* Soft silk dome tweeter
* Glass aramid composite woofer cone
* Bi-amplified with powerful range
*Easy to Use with Different DJ or Production Equipment – With RCA and mini-jack terminals, artists can connect different gear such as DJ controllers, mixers, laptops or the built-in sound card artists use for music production
* Specially shape
* HIFI BOOKSHELF SPEAKERS, idealy for studio monitor
* Magnetically shielded
*All MDF cabinet bookshelf speakers
* The portable speaker designed and made by our factory
* OEM and ODM are welcome.
Specifications of the powered monitor loudspeakers
Item name | VM5 active bookshelf monitor speaker |
Frequency Response | 45-30kHz +/-2.0dB |
High Frequency Drive | 3/4'' Ribbon tweeters |
Low Frequency Drive | 5.25'' AramidGlass Fiber |
Cabinet Dimensions(HxWxD) | 199x181x251mm |
Net Weight | 3.6Kg |
Power rating of High Frequency | 30 watts |
Power rating of LowFrequency | 40 watts |
Max peak SPL | 104 dB |
Amplifier type | Speaker with Class Ab amplifier |
Input Impedance/Balanced | 10KOhm |
Input Impedance/Balanced | 10KOhm |
Crossover Frequency | 3KHz |
Subsonic Filter | 45Hz |
Encolosure Construction | MDF |
Configuration | 2-way powered studio bookshelf speakers |
Use Field | Home theater speaker system |
Input Power | AC 110-240V |
Input methods | Unbalanced RCA,Balanced 1/4'' TRS,Balanced XLR |
OEM | Professional factory, support custom design |

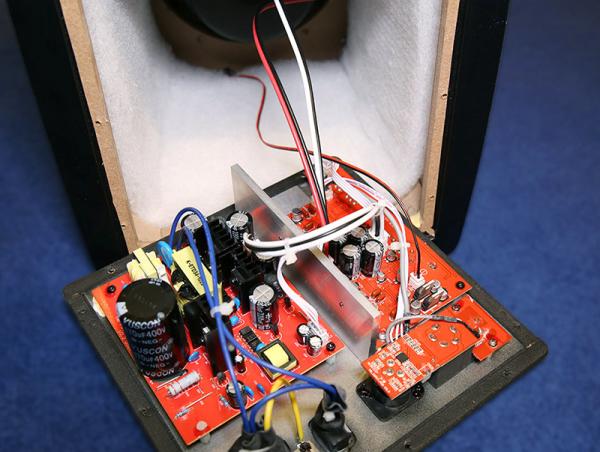

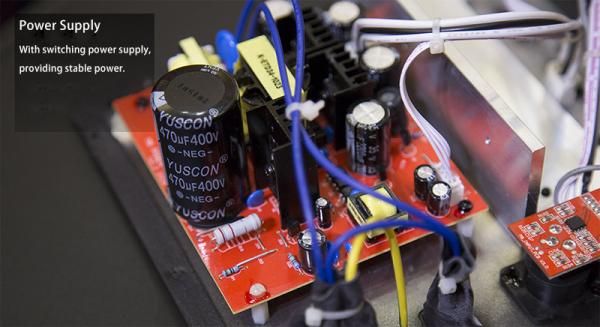

Pictures of the near field home use studio monitor speaker
